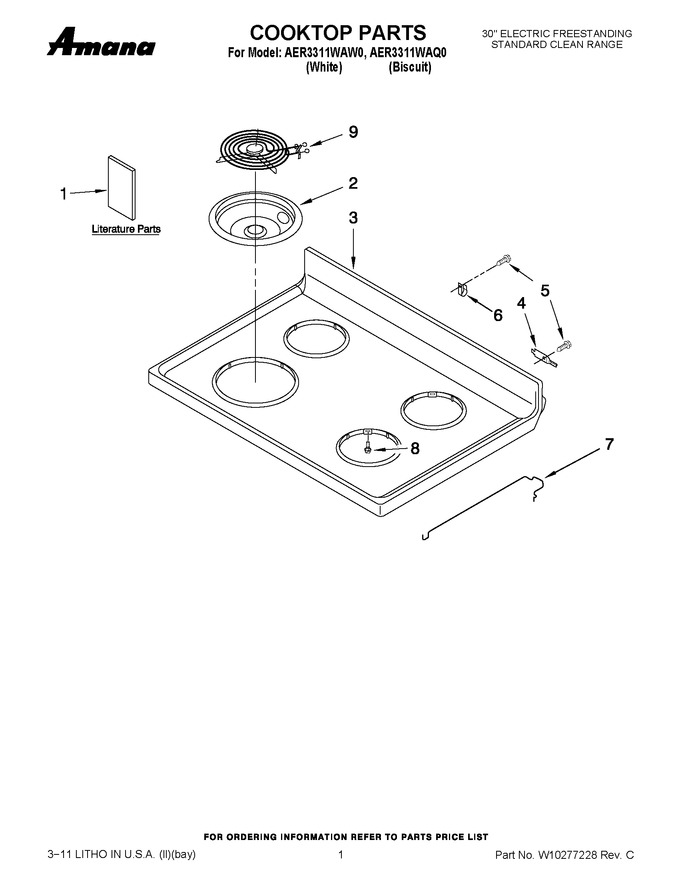

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10252706 | Instructions, Installation |
|
- | |||||
| 1 | W10204318 | Owners Manual |
|
- | |||||
| 1 | W10204430 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | 9757143 | Template, Anti-tip (english/french) |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6`` Chrome) (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 2 | WPW10196405 | Bowl, Drip (8`` Chrome) (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 3 | 3186235 | Cooktop (white) |
|
- | |||||
| 3 | 8273508 | Cooktop (biscuit) |
|
- | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 6 | WP308605 | Strain Relief (Replaces: 308605) |
|
$ 10.08 | |||||
| 7 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 7.48 | ||||
| 8 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.04 | |||||
| 9 | WPW10345407 | Element, Surface (6``) (Replaces: 8053265) |
|
Immediately | $ 141.79 | ||||
| 9 | WP9761346 | Element, Surface (8``) (Replaces: 8053267) |
|
Immediately | $ 94.16 |
