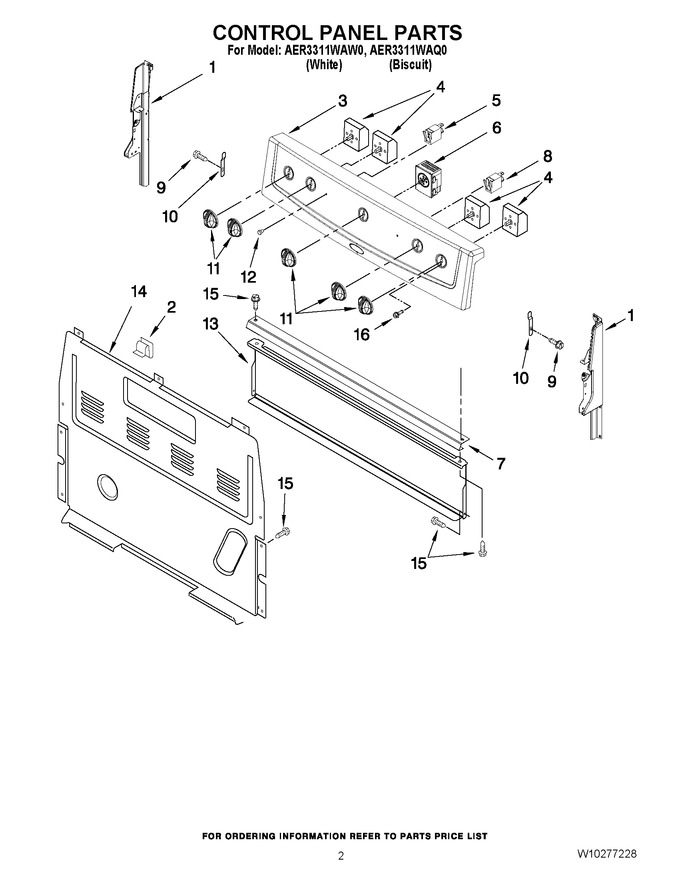

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white Left Hand)   (Replaces: W10184433)				$ 36.39
1	W11219370		Endcap (white Right Hand)   (Replaces: W10184434)				$ 52.14
1	W11230611		Endcap (biscuit Left Hand)   (Replaces: W10184435)		Appelez-nous	-
1	W11230612		Endcap (biscuit Right Hand)   (Replaces: W10184436)		Appelez-nous	-
2	WP8273564		Clip   (Replaces: 8273564)				$ 10.85
3	W10320984		Panel, Backguard (biscuit)		Appelez-nous	-
3	W11219378		Panel, Backguard (white)   (Replaces: W10259290)				$ 115.54
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 47.15
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 47.15
5	WP8523265		Indicator, Light   (Replaces: 8523265)			Immediately	$ 77.68
6	WP9762215		Electric Control   (Replaces: 9762215)			Immediately	$ 313.00
7	W10525121		Bracket, Console Mounting   (Replaces: W10182322)				$ 84.73
8	WP8523266		Indicator, Light   (Replaces: 8523266)				$ 100.71
9	3196166		Screw				$ 6.31
10	3196200		Clip, Spring				$ 8.96
11	WP9761962		Knob (white)   (Replaces: 9761962)			Immediately	$ 17.70
11	WP9761963		Knob (biscuit)   (Replaces: 9761963)				$ 17.81
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 5.63
13	8053912		Shield, Heat				$ 34.55
14	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 187.75
15	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.47
