01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts

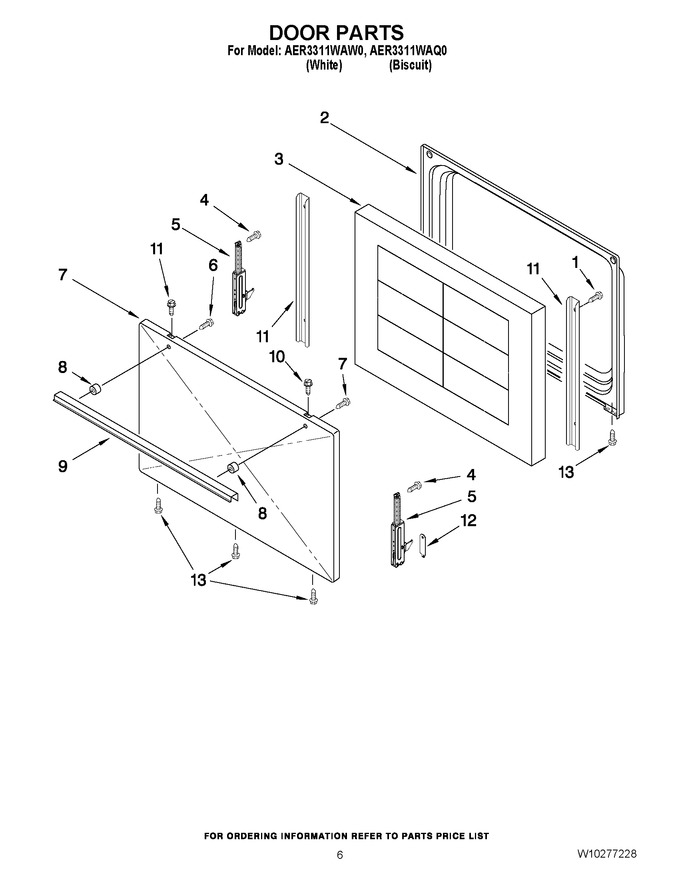

05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 2 | 9761342 | Liner |
|
- | |||||
| 3 | WPW10278991 | Insulation, Door (Replaces: 8272618) |
|
Immediately | $ 86.89 | ||||
| 4 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.04 | ||||
| 5 | W10368723 | Hinge (Replaces: 9761495) |
|
- | |||||
| 6 | WP3196163 | Screw (Replaces: 3196163) |
|
$ 6.26 | |||||
| 7 | 8273522 | Panel, Steel (biscuit) |
|
- | |||||
| 7 | W10903447 | Panel, Steel (white) (Replaces: 3195560) |
|
$ 218.32 | |||||
| 8 | 8273879 | Spacer, Handle (biscuit) |
|
- | |||||
| 8 | WP3196143 | Spacer, Handle (white) (Replaces: 3196143) |
|
$ 6.26 | |||||
| 9 | 8273506 | Handle, Oven Door (biscuit) |
|
- | |||||
| 9 | WP3195263 | Handle, Oven Door (white) (Replaces: 3195263) |
|
$ 177.13 | |||||
| 10 | 3196558 | Screw, Top (white) |
|
- | |||||
| 10 | 3196559 | Screw, Top (biscuit) |
|
- | |||||
| 11 | W11699790 | Bracket, Door (Replaces: 9761504) |
|
- | |||||
| 12 | 9761517 | Clip, Door Mntg |
|
$ 41.24 | |||||
| 13 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 |
