SELECT A DIAGRAM
01 - Cabinet Parts

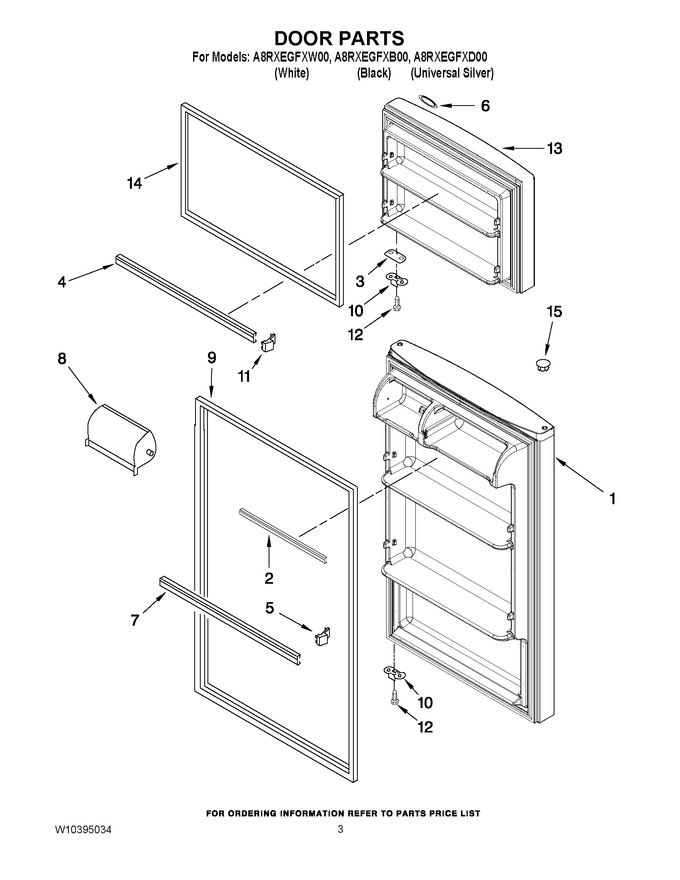

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2265677B | Refrigerator Door (includes Illus 9 & Molded Door Handle) (black) |
|
- | |||||
| 1 | 2265677D | Refrigerator Door (includes Illus 9 & Molded Door Handle) (universal Silver) |
|
- | |||||
| 1 | 2263252W | Refrigerator Door (includes Illus. 9 & Molded Door Handle) (white) |
|
- | |||||
| 2 | W11129820 | Trim, Door Shelf (Replaces: W10234242) |
|
Immediately | $ 109.15 | ||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.47 | ||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 38.85 | |||||
| 4 | WP2266727 | Trim, Door Shelf (Replaces: 2266727) |
|
Immediately | $ 83.25 | ||||
| 5 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 6 | 2325418 | Nameplate |
|
$ 44.68 | |||||
| 7 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 100.52 | |||||
| 8 | WP2207942 | Door Compartment (Replaces: 2207942) |
|
Immediately | $ 52.88 | ||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 277.59 | |||||
| 9 | W11578847 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10246160) |
|
Immediately | $ 215.42 | ||||
| 9 | WP2319264T | Door Gasket, Magnetic (mist Beige) (Replaces: W10190032) |
|
Immediately | $ 173.44 | ||||
| 10 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 11 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.36 | ||||
| 12 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.49 | |||||
| 13 | 2265678D | Freezer Door (includes Illus. 14 & Molded Door Handle) (universal Silver) |
|
- | |||||
| 13 | 2265678B | Freezer Door (includes Illus. 14 & Molded Door Handle) (black) |
|
- | |||||
| 13 | 2263251W | Freezer Door (includes Illus. 14 & Molded Door Handle) (white) |
|
- | |||||
| 14 | W11661186 | Door Gasket, Magnetic (apollo Grey) (Replaces: W10244875) |
|
Immediately | $ 197.19 | ||||
| 14 | WP2319263T | Door Gasket, Magnetic (mist Beige) (Replaces: W10190031) |
|
Immediately | $ 152.58 | ||||
| 14 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 229.95 | ||||
| 15 | WP2254517 | Hole Plug (universal Silver) (Replaces: 2212648D) |
|
Immediately | $ 20.86 | ||||
| 15 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
$ 7.02 | |||||
| 15 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 20.75 |
