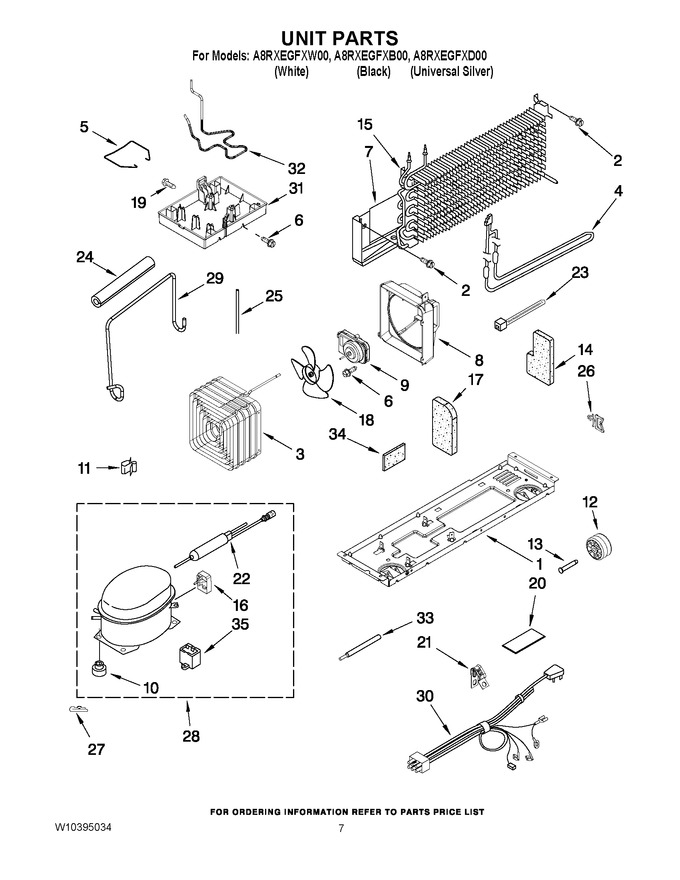

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10222450) |
|
$ 125.81 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 3 | 2264597 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2264835 | Clip, Condensor |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 8 | W10358308 | Air Baffle |
|
$ 129.64 | |||||
| 9 | WP2188874 | Motor, Condensor (Replaces: 2188874) |
|
Immediately | $ 102.56 | ||||
| 10 | WPW10169124 | Grommet (production) (Replaces: 2264447) |
|
Immediately | $ 6.47 | ||||
| 10 | WPW10169124 | Grommet (service) (Replaces: 10835901) |
|
Immediately | $ 6.47 | ||||
| 11 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 12 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 13 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.47 | |||||
| 14 | 2262191 | Wedge, Evaporator |
|
- | |||||
| 15 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 285.62 | ||||
| 16 | WPW10197428 | Start Device, Combination (start Relay And Overload For Production Compressor Only) (service) (Replaces: W10128791) |
|
Immediately | $ 80.29 | ||||
| 16 | WPW10197428 | Start Device, Combination (start Relay And Overload For Production Compressor Only) (production) (Replaces: W10197428) |
|
Immediately | $ 80.29 | ||||
| 17 | 2262192 | Wedge-evaporator |
|
- | |||||
| 18 | 2264129 | Fan Blade |
|
Immediately | $ 94.28 | ||||
| 19 | WP489489 | Screw (Replaces: 2264841) |
|
$ 5.82 | |||||
| 20 | 2266360 | Shield-electrical |
|
- | |||||
| 21 | 549193 | Clamp, Cord |
|
$ 12.05 | |||||
| 22 | W10843121 | Drier (production) (Replaces: W10190413) |
|
Immediately | $ 47.31 | ||||
| 22 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 27.70 | ||||
| 23 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.11 | |||||
| 24 | 2264838 | Sleeve |
|
$ 79.10 | |||||
| 25 | 2264278 | Tube, Drain |
|
$ 68.37 | |||||
| 26 | 2266467 | Clip-harness |
|
- | |||||
| 27 | 24364001 | Clip, Compressor |
|
- | |||||
| 28 | W10160407 | Compressor (includes Items 10, 16, 22 & 35) (Replaces: W10200250) |
|
Immediately | $ 539.93 | ||||
| 29 | W10209727 | Extension, Tube-heat |
|
$ 99.38 | |||||
| 30 | WPW10151677 | Wire Assy. Unit (Replaces: W10151677) |
|
$ 117.35 | |||||
| 31 | WP2263928 | Evaporator Tray (Replaces: 2263928) |
|
$ 127.73 | |||||
| 32 | W10336305 | Tube, Discharge (incl. Pre Cooler) |
|
- | |||||
| 33 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 26.11 | |||||
| 34 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 12.66 | ||||
| 35 | WPW10662129 | Capacitor (service) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| NI | 876764 | Valve, Access (3/16``) |
|
Immediately | $ 82.22 | ||||
| NI | N/P | Refrigerant Charge (r134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 117.64 |
