View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

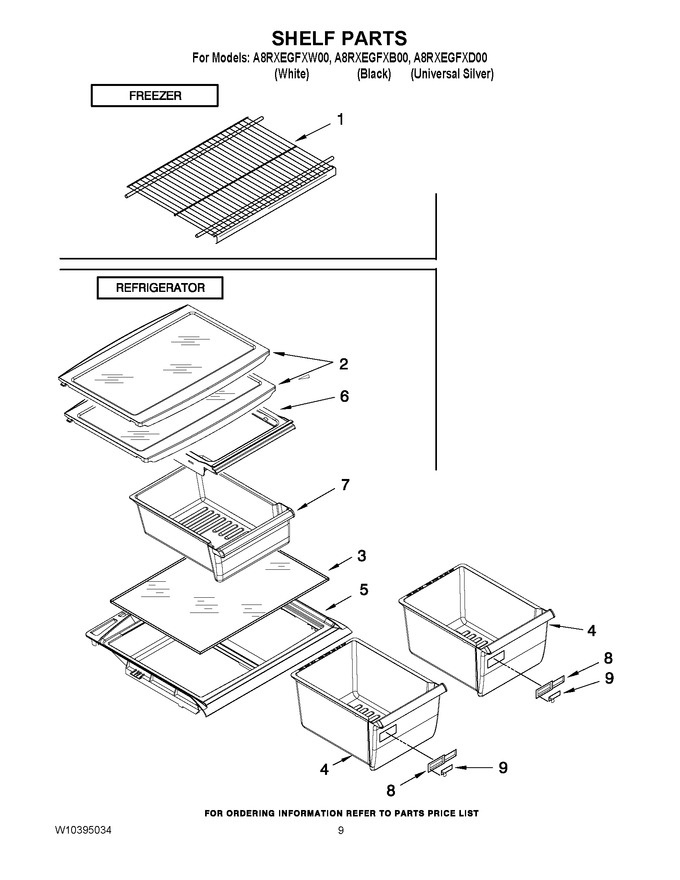

05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10142525 | Shelf, Freezer |
|
- | |||||
| 2 | W10837901 | Shelf (Replaces: 2263641) |
|
$ 228.25 | |||||
| 3 | WP2262441 | Glass, Cover (Replaces: 2262441) |
|
Immediately | $ 199.65 | ||||
| 4 | WP2256704 | Crisper Pan (Replaces: 2256704) |
|
Immediately | $ 127.50 | ||||
| 5 | WPW10211610 | Cover, Crisper (Replaces: W10211610) |
|
$ 184.25 | |||||
| 6 | WP2256601 | Holder, Meat Pan (Replaces: 2256601) |
|
$ 154.47 | |||||
| 7 | WP2261934 | Meat Pan (Replaces: 2261934) |
|
Immediately | $ 129.59 | ||||
| 8 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 13.55 | |||||
| 9 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 |
