01 - Base & Drive (rev. F)

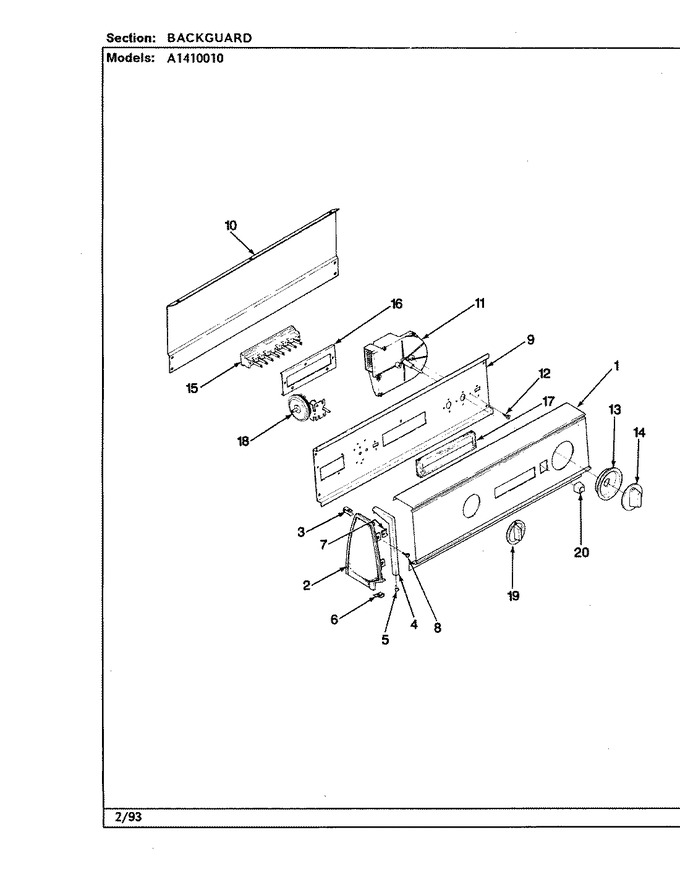

02 - Control Panel (rev. F)


03 - Exterior (rev. F)


04 - Transmission (rev. F)


05 - Tub (rev. F)


06 - Water Carrying (rev. F)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	25-7649		Screw	F	Appelez-nous	-
1	25-7702		Speedclip, End Cap To Ctrl Pnl	F	Appelez-nous	-
1	35-2173		Control Panel	F	Appelez-nous	-
2	35-2488		Cap, End (lt)	F	Appelez-nous	-
2	35-2487		Cap, End (rt)	F	Appelez-nous	-
3	WP33002917		Screw   (Replaces: 25-7435)	F		Immediately	$ 6.90
4	53-0278		Trim, End Cap (lt)	F	Appelez-nous	-
4	53-0277		Trim, End Cap (rt)	F	Appelez-nous	-
5	25-7760		Screw	F	Appelez-nous	-
6	34-9487		Plate, Reinforcement	F	Appelez-nous	-
6	25-7697		Screw	F	Appelez-nous	-
6	25-7851		Speedclip, End Cap To Top	F	Appelez-nous	-
7	25-7702		Speedclip, End Cap To Ctrl Pnl	F	Appelez-nous	-
8	WP90767		Screw   (Replaces: 25-3092)	F		Immediately	$ 7.04
9	53-1677		Control Shield	F	Appelez-nous	-
10	WP12990527		Screw, Sems   (Replaces: 25-3457)	F		Immediately	$ 7.15
10	25-7583		Plastic Nut	F	Appelez-nous	-
10	WP90767		Screw   (Replaces: 25-3092)	F		Immediately	$ 7.04
10	35-2688		Shield, Control Panel (rear)	F	Appelez-nous	-
11	35-2326		Timer	F	Appelez-nous	-
12	25-0205		Screw	F	Appelez-nous	-
13	35-2255		Skirt & Ring Assy	F	Appelez-nous	-
14	35-2486		Timer Knob	F	Appelez-nous	-
15	35-2197		Switch	F	Appelez-nous	-
16	33-6620		Bracket	F	Appelez-nous	-
16	WP90767		Screw   (Replaces: 25-3092)	F		Immediately	$ 7.04
17	33-8540		Switch Pad	F	Appelez-nous	-
18	WP21001554		Pressure Switch   (Replaces: 35-2145)	F			$ 143.59
18	WP90767		Screw   (Replaces: 25-3092)	F		Immediately	$ 7.04
19	35-2185		Knob, Selector (blk)	F	Appelez-nous	-
20	35-2588		Pushbutton - Black	F	Appelez-nous	-
NI	35-2649		Manual, Use & Care	F	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
