01 - Base & Drive (rev. F)
02 - Control Panel (rev. F)
03 - Exterior (rev. F)
04 - Transmission (rev. F)

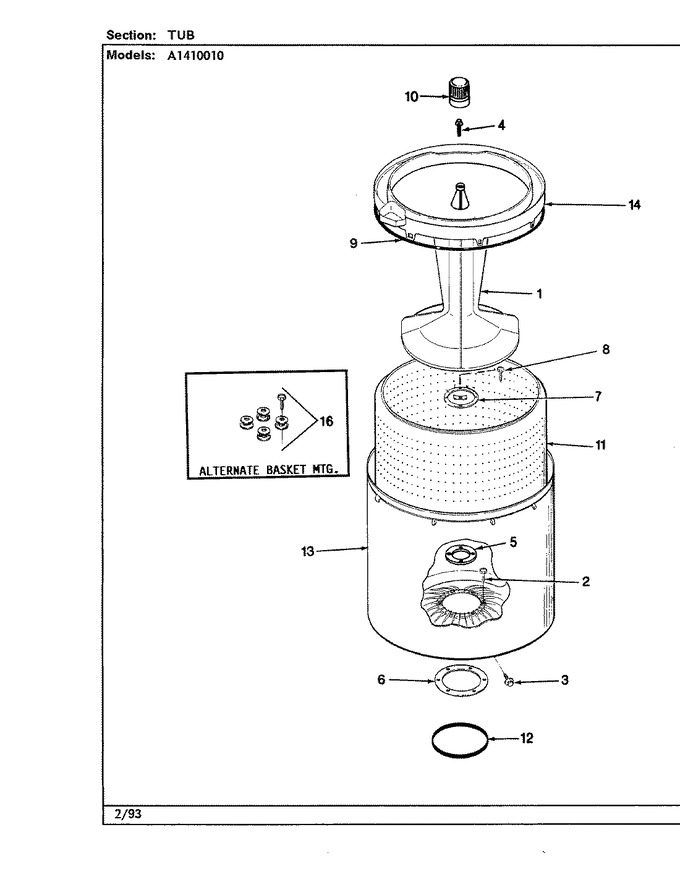

05 - Tub (rev. F)
06 - Water Carrying (rev. F)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 35-2717 | Agitator | F |
|
- | ||||
| 2 | 25-7949 | Ring, Retaining (ag. Shaft) | F |
|
- | ||||
| 3 | WP22002933 | Screw (Replaces: 25-7953) | F |
|
$ 6.91 | ||||
| 4 | WPW10309247 | Screw, Agitator Retention (Replaces: 25-7948) | F |
|
$ 32.57 | ||||
| 5 | 35-2980 | Gasket | F |
|
- | ||||
| 6 | 35-2979 | Gasket, Tub/hsg (seal) | F |
|
- | ||||
| 7 | 35-3014 | Gasket & Reinf. Plate Assy | F |
|
- | ||||
| 8 | 25-7783 | Screw | F |
|
- | ||||
| 9 | 35-2328 | Seal, Tub Top | F |
|
$ 49.43 | ||||
| 10 | 35-2733 | Cap, Agitator | F |
|
- | ||||
| 11 | 35-3016 | Basket Assy | F |
|
- | ||||
| 12 | 35-2978 | Seal, Tub/housing | F |
|
$ 5.85 | ||||
| 13 | 35-2952 | Tub Assy | F |
|
- | ||||
| 14 | 35-2034 | Top, Tub | F |
|
- | ||||
| 14 | 35-2262 | Shield, Tub Top | F |
|
- | ||||
| 15 | 35-2550 | Dispenser, Rinse | F |
|
- | ||||
| 16 | 35-2912 | Screw & Washer Assy. | F |
|
- |
