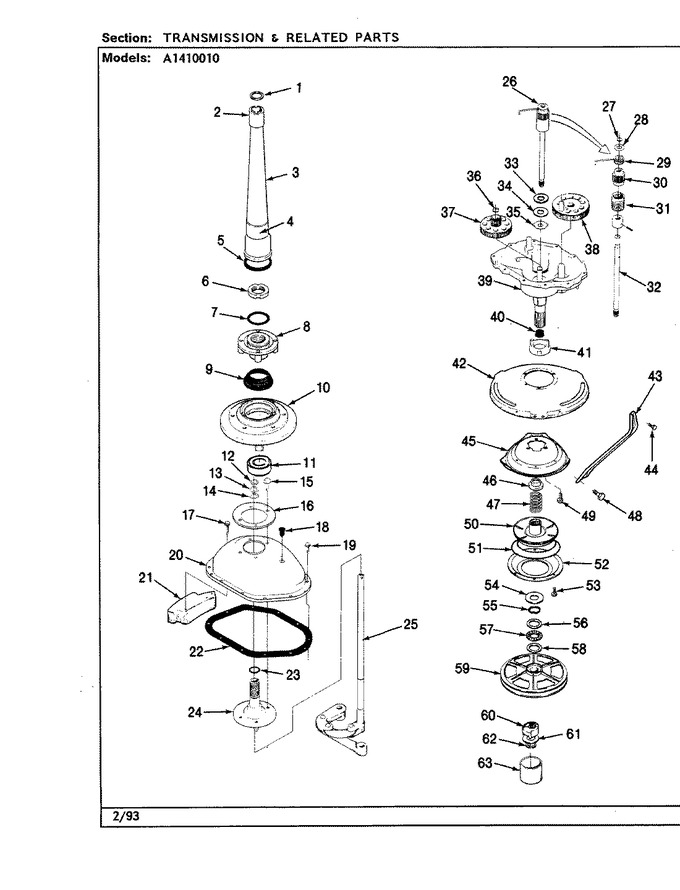

01 - Base & Drive (rev. F)
02 - Control Panel (rev. F)
03 - Exterior (rev. F)
04 - Transmission (rev. F)
05 - Tub (rev. F)
06 - Water Carrying (rev. F)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 35-2835 | Bearing, Centerpost | F |
|
- | ||||
| 3 | 35-2792 | Centerpost | F |
|
- | ||||
| 4 | 33-6790 | Bearing, Agitator | F |
|
- | ||||
| 4 | 35-2983 | Centerpost Assy. | F |
|
- | ||||
| 5 | 35-2906 | Seal, Centerpost Bottom | F |
|
- | ||||
| 6 | 35-2791 | Nut, Spin Tube | F |
|
- | ||||
| 7 | 25-7938 | ``o`` Ring, Basket Drive Hub | F |
|
- | ||||
| 8 | 35-2715 | Basket Drive Hub Assy | F |
|
- | ||||
| 9 | 35-2974 | Tub Seal/hub Assy (ht Trans) | F |
|
$ 36.14 | ||||
| 10 | 35-2716 | Housing, Bearing & Seal | F |
|
- | ||||
| 11 | 35-2205 | Bearing, Spin | F |
|
$ 40.16 | ||||
| 11 | 35-2972 | Bearing & Seal Housing Assy. | F |
|
- | ||||
| 12 | 25-7949 | Ring, Retaining (ag. Shaft) | F |
|
- | ||||
| 13 | 25-7057 | Washer, Flat | F |
|
- | ||||
| 14 | 25-7051 | Washer, Flat | F |
|
- | ||||
| 15 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy | F |
|
- | ||||
| 16 | 35-2981 | Cover, Reinforcement | F |
|
- | ||||
| 17 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy | F |
|
- | ||||
| 18 | 35-2621 | Plug, Oil Fill | F |
|
- | ||||
| 19 | 25-7926 | Screw, Cover To Trans. Housing | F |
|
- | ||||
| 20 | 35-2620 | Cover, Transmission | F |
|
- | ||||
| 20 | 35-2971 | Transmission Cover Assy. | F |
|
- | ||||
| 21 | 35-2903 | Counterweight | F |
|
- | ||||
| 22 | 35-1030 | Gasket, Transmission Housing | F |
|
- | ||||
| 23 | 25-7722 | ``o`` Ring, Drive Tube | F |
|
- | ||||
| 24 | 35-2708 | Drive Tube Assy | F |
|
- | ||||
| 25 | 35-3036 | Linkage Assy | F |
|
- | ||||
| 26 | LA-2176 | Clutch Assy. | F |
|
- | ||||
| 27 | 25-7847 | Ring, Retaining (clutch Assy.) | F |
|
- | ||||
| 28 | 25-7416 | Washer, Flat | F |
|
- | ||||
| 28 | 25-7415 | Washer, Flat | F |
|
- | ||||
| 29 | 33-6114 | Spring | F |
|
- | ||||
| 30 | 35-2001 | Pinion, Drive | F |
|
- | ||||
| 31 | 33-3195 | Spring | F |
|
- | ||||
| 32 | 35-2692 | Drive Shaft & Hub Assy. | F |
|
- | ||||
| 33 | 25-7274 | Washer, Steel | F |
|
- | ||||
| 34 | 35-2817 | Washer, Nylon | F |
|
- | ||||
| 35 | 35-2070 | Washer, Steel W/tabs | F |
|
- | ||||
| 36 | 25-7933 | Ring, Retaining | F |
|
- | ||||
| 37 | 35-2527 | Gear, Cluster | F |
|
- | ||||
| 38 | 35-2631 | Gear, Crank | F |
|
- | ||||
| 39 | 35-2812 | Housing, Transmission | F |
|
- | ||||
| 40 | 35-2010 | Seal,transmission Housing(lip) | F |
|
- | ||||
| 41 | 35-2973 | Transmission Hsg Assy W/lwr Br | F |
|
- | ||||
| 41 | 35-2730 | Bearing Assy. (lower) | F |
|
- | ||||
| 42 | 35-2732 | Tub Support | F |
|
- | ||||
| 43 | 35-2798 | Tub Brace | F |
|
- | ||||
| 44 | 25-7930 | Screw 5/16-18x3/4 | F |
|
- | ||||
| 45 | 35-2015 | Suspension Housing | F |
|
- | ||||
| 46 | 35-2017 | Retainer, Brake Spring | F |
|
$ 5.85 | ||||
| 47 | 35-2112 | Spring, Brake | F |
|
- | ||||
| 48 | 25-7930 | Screw 5/16-18x3/4 | F |
|
- | ||||
| 49 | 25-7895 | Screw, Susp Hsg To Lwr Brg Asy | F |
|
- | ||||
| 50 | 35-2948 | Brake Rotor & Lining Assy | F |
|
- | ||||
| 51 | WP21002026 | Snubber (Replaces: 35-2357) | F |
|
Immediately | $ 9.68 | |||
| 52 | 35-2018 | Stator, Brake | F |
|
- | ||||
| 53 | 25-7900 | Sems | F |
|
- | ||||
| 59 | 12002213 | Drive Pulley (Replaces: 35-2683) | F |
|
Immediately | $ 98.84 | |||
| 60 | 12002213 | Cam, Lower (Replaces: 35-2439) | F |
|
Immediately | $ 98.84 | |||
| 61 | 35-2082 | Washer,1.25odx.530idx.062 | F |
|
$ 5.61 | ||||
| 61 | WP35-2132 | Washer,1.25odx.530idx.032 (Replaces: 35-2132) | F |
|
$ 0.65 | ||||
| 62 | WP25-7854 | Ring, Retaining (Replaces: 25-7854) | F |
|
$ 10.68 | ||||
| 63 | 35-2007 | Cap, Dust | F |
|
- | ||||
| NI | LA-2175 | Transmission Replacement Kit | F |
|
- |
