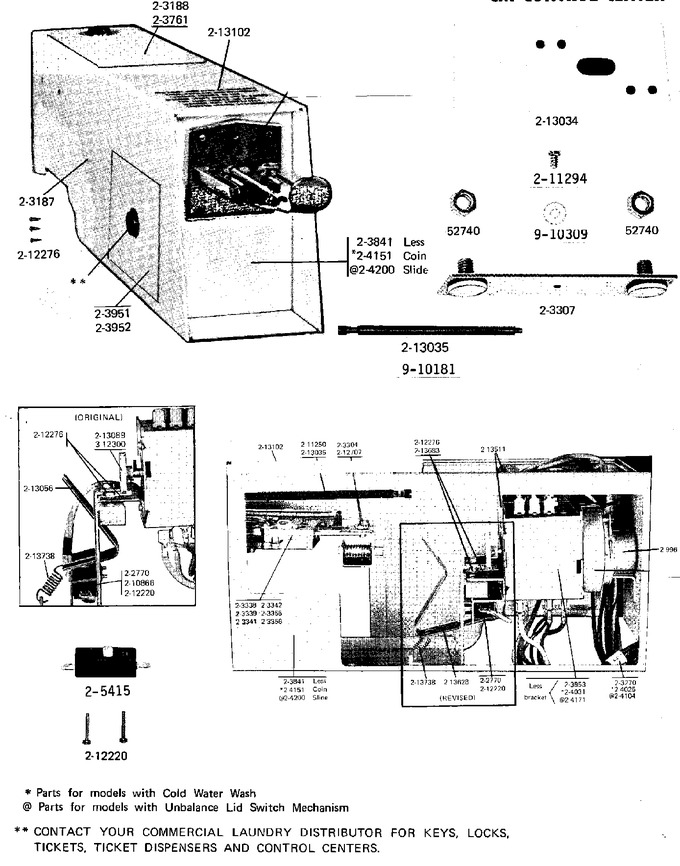

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Hex Nut | 00 |
|
- | ||||
| 002 | NLA | Timer Motor | 00 |
|
- | ||||
| 003 | NLA | Outer Case (wht) | 00 |
|
- | ||||
| 004 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 005 | NLA | Harness, Control Center | 00 |
|
- | ||||
| 006 | NLA | Actuator Kit, Washer Slides | 00 |
|
- | ||||
| 007 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 008 | 203761 | Access Door (wht) | 00 |
|
- | ||||
| 009 | NLA | Control Center (wht) | 00 |
|
- | ||||
| 010 | NLA | Timer | 00 |
|
- | ||||
| 011 | NLA | Coin Box (wht) | 00 |
|
- | ||||
| 012 | NLA | Super Security Coin Box | 00 |
|
- | ||||
| 013 | NLA | Harness, Control Center | 00 |
|
- | ||||
| 014 | NLA | Timer | 00 |
|
- | ||||
| 015 | NLA | Wire Harness | 00 |
|
- | ||||
| 016 | NLA | Timer W/knob & Pin (cm) | 00 |
|
- | ||||
| 017 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 018 | NLA | Counter Kit W/actuator | 00 |
|
- | ||||
| 019 | 210294 | Washer | 00 |
|
- | ||||
| 020 | 210866 | Twin Speed Nut | 00 |
|
- | ||||
| 021 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 022 | 212220 | Screw-hex Hd Type B No.6 X 15/16 | 00 |
|
- | ||||
| 023 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 024 | W11684507 | Screw (Replaces: 212707) | 00 |
|
$ 12.23 | ||||
| 025 | NLA | Gasket Under Control Center | 00 |
|
- | ||||
| 026 | 213035 | Bolt, Locking | 00 |
|
$ 5.84 | ||||
| 027 | NLA | Actuator Lever Arm | 00 |
|
- | ||||
| 028 | NLA | Instruction Decal | 00 |
|
- | ||||
| 029 | NLA | Upper Baffle | 00 |
|
- | ||||
| 030 | NLA | Spring Washer, Lock | 00 |
|
- | ||||
| 031 | NLA | Actuator Lever Arm | 00 |
|
- | ||||
| 032 | NLA | Mounting Bracket, Timer | 00 |
|
- | ||||
| 033 | NLA | Spring Tension Lever Return | 00 |
|
- | ||||
| 034 | 910181 | Lock Washer | 00 |
|
- |
