Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	NLA		Spline, Original Agitator	00	Appelez-nous	-
002	Y015494		Stop Ring-agitator Shaft	00	Appelez-nous	-
003	201379		Agitator - Black	00	Appelez-nous	-
004	NLA		O Ring Seal	00	Appelez-nous	-
005	NLA		Screw (no.10-24 X 5/8 Inch)	00	Appelez-nous	-
006	NLA		Fastener Clip	00	Appelez-nous	-
007	214705		Agitator Cap	00	Appelez-nous	-

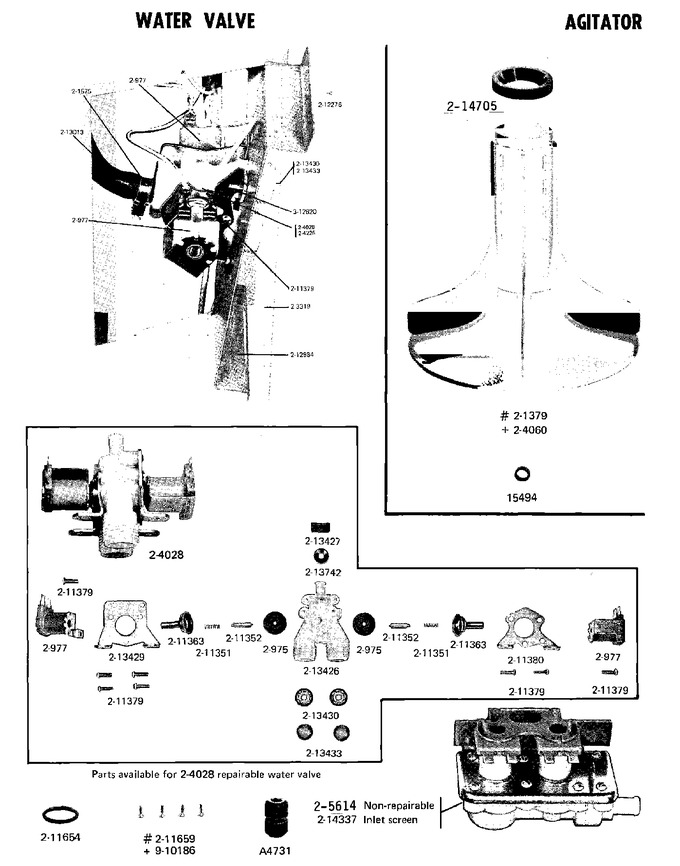

    View Diagram in Separate Window       Print Part List
