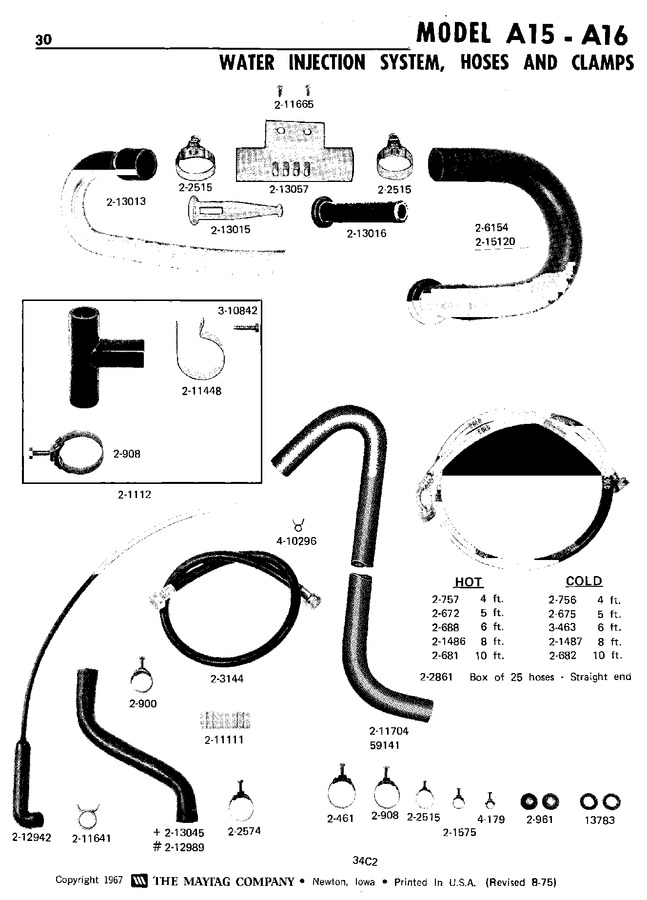

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y013783 | Washer, Inlet Hose | 00 |
|
$ 18.72 | ||||
| 002 | Y059137 | Hose 31/32`` Per Foot Branch St | 00 |
|
- | ||||
| 003 | Y059141 | Ctn. 50 Ft. 31/32 Drain Hose | 00 |
|
- | ||||
| 004 | WP285655 | Hose Clamp - 1-5/8 Inch (Replaces: 200461) | 00 |
|
Immediately | $ 7.55 | |||
| 005 | WP76314 | Inlet Hose Assy. (Replaces: 200672) | 00 |
|
$ 38.79 | ||||
| 006 | WP76314 | Inlet Hose, Cold 5 Ft. (Replaces: 200675) | 00 |
|
$ 38.79 | ||||
| 007 | 3810FF | Inlet Hose, Hot 10 Ft. (Replaces: 200681) | 00 |
|
Immediately | $ 26.11 | |||
| 008 | WP76314 | Inlet Hose, Cold 10 Ft. (Replaces: 200682) | 00 |
|
$ 38.79 | ||||
| 009 | WP76314 | Inlet Hose, Hot 6 Ft. (Replaces: 200688) | 00 |
|
$ 38.79 | ||||
| 010 | 200756 | Inlet Hose, Cold 4 Ft. | 00 |
|
- | ||||
| 011 | 200757 | Inlet Hose, Hot 4 Ft. | 00 |
|
- | ||||
| 012 | WP616099 | Clamp, Spray Arm Hose (Replaces: 200900) | 00 |
|
Immediately | $ 7.03 | |||
| 013 | WP285655 | Hose Clamp - 1-1/2 Inch (Replaces: 200908) | 00 |
|
Immediately | $ 7.55 | |||
| 014 | 200961 | Screen Washer, Inlet Hose | 00 |
|
- | ||||
| 015 | 76660 | Siphon Break Kit (Replaces: 201112) | 00 |
|
Immediately | $ 119.93 | |||
| 016 | 201486 | Inlet Hose, Hot 8 Ft. | 00 |
|
- | ||||
| 017 | WP76314 | Inlet Hose, Cold 8 Ft. (Replaces: 201487) | 00 |
|
$ 38.79 | ||||
| 018 | WP596669 | Hose Clamp (Replaces: 201575) | 00 |
|
Immediately | $ 7.56 | |||
| 019 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 00 |
|
Immediately | $ 7.56 | |||
| 020 | WP3367052 | Clamp, Hose (Replaces: 202574) | 00 |
|
$ 7.49 | ||||
| 021 | WP89503 | Carton Of 25 Hose, 5` (Replaces: 202861) | 00 |
|
Immediately | $ 21.68 | |||
| 022 | 206154 | Injector Tube W/seal | 00 |
|
$ 50.55 | ||||
| 023 | WP16272 | Hose Coupling (Replaces: 211111) | 00 |
|
$ 7.04 | ||||
| 024 | 211448 | Clamp | 00 |
|
- | ||||
| 025 | WP285655 | Clamp, 1-1/16`` (Replaces: 211641) | 00 |
|
Immediately | $ 7.55 | |||
| 026 | 211704 | Drain Hose | 00 |
|
$ 78.91 | ||||
| 027 | WP22001619 | Air Dome & Tube (Replaces: 212942) | 00 |
|
$ 75.73 | ||||
| 028 | WPY212989 | Hose, Outer Tub (pump) (Replaces: Y212989) | 00 |
|
Immediately | $ 46.51 | |||
| 029 | WP213013 | Hose, Injector (Replaces: 213013) | 00 |
|
Immediately | $ 44.40 | |||
| 030 | WP213015 | Injector Nozzle (Replaces: 213015) | 00 |
|
Immediately | $ 7.29 | |||
| 031 | WP216201 | Valve, Injector (Replaces: 213016) | 00 |
|
Immediately | $ 18.88 | |||
| 032 | 213055 | Injector Tube | 00 |
|
- | ||||
| 033 | WP22213057 | Sleeve, Injector (Replaces: 213057) | 00 |
|
$ 8.06 | ||||
| 034 | 215120 | Seal, Injector Tube | 00 |
|
$ 5.83 | ||||
| 035 | NLA | Inlet Hose, Cold (6`long) | 00 |
|
- | ||||
| 036 | Y310632 | Screw | 00 |
|
- | ||||
| 037 | Y310842 | Screw | 00 |
|
- | ||||
| 038 | WP596669 | Hose Clamp - 9/16 Inch (Replaces: 400179) | 00 |
|
Immediately | $ 7.56 | |||
| 039 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 00 |
|
Immediately | $ 7.56 |
