Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303280348 Trim - Top Appelez-nous -
2 5303280365 Clock-oven Control Appelez-nous -
3 5303279413 Switch-light Appelez-nous -
4 5303289020 Panel Glass-control Pnl Appelez-nous -
5 3203670 Trim-center Vent Appelez-nous -
6 5303280346 Trim - Center Vent Appelez-nous -
7 3204586 Knobs Controls Appelez-nous -
8 3204590 Knob-clock Appelez-nous -
9 5303280339 End Cap-left Side Appelez-nous -
10 5303280338 End Cap-right Side Appelez-nous -
11 316003600 Plate Inst. Mtg. Appelez-nous -
12 5303210685 Shield-controls Appelez-nous -
13 5303271453 Deflector - Flue Appelez-nous -
*83922 5303016305 Bezel - Switch Appelez-nous -

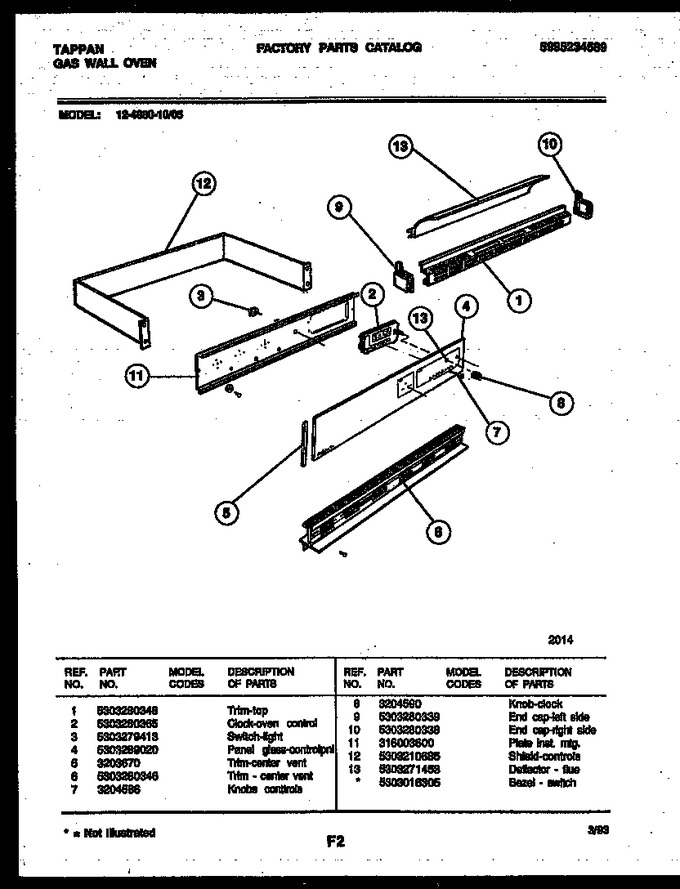

    View Diagram in Separate Window     Print Icon   Print Part List
