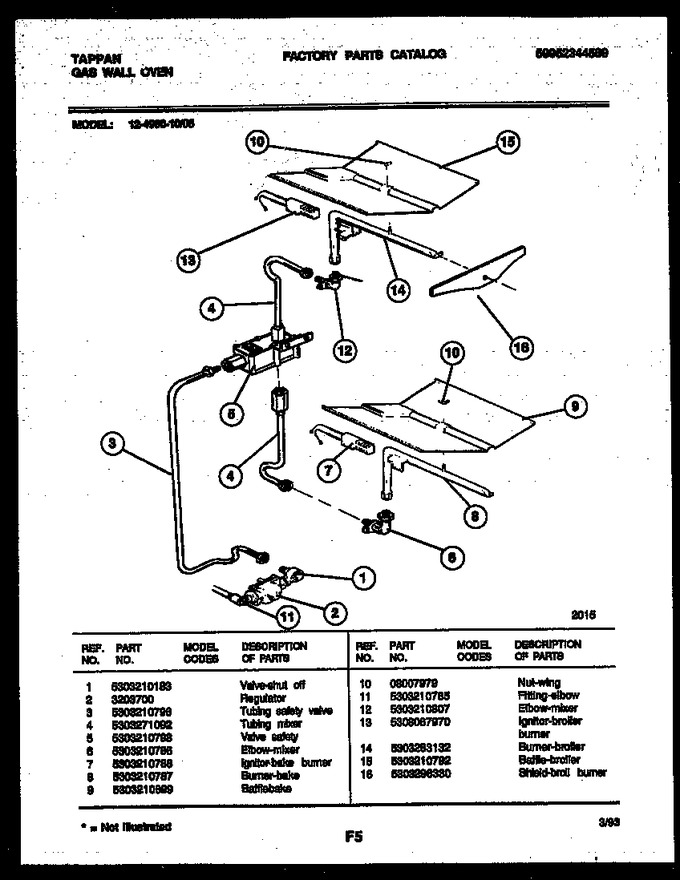

Diagram for 05 - Burner And Gas Control
05 - Burner And Gas Control

Diagram for 06 - Body Parts
06 - Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303210183 Valve Shut Off Appelez-nous -
2 3203700 Regulator Appelez-nous -
3 5303210796 Tubing Safety Valve Appelez-nous -
4 5303271092 Tubing Mixer Appelez-nous -
5 5303210798 Valve-safety In-Stock Immediately $ 587.56

6 5303210786 Elbow - Mixer Appelez-nous -
7 5303210788 Ignitor - Bake Burner Appelez-nous -
8 5303210787 Burner - Bake Appelez-nous -
9 5303210699 Bafflebake Appelez-nous -
10 08007979 Nut - Wing Appelez-nous -
11 5303210785 Fitting-elbow Appelez-nous -
12 5303210807 Elbow - Mixer Appelez-nous -
13 5303935068 Ignitor, Broiler Burner   (Replaces: 5308067970) Special Order $ 166.55

14 5303283132 Burner,broiler Appelez-nous -
15 5303210792 Baffle-broiler Appelez-nous -
16 5303296330 Shield - Broil Burner Appelez-nous -
