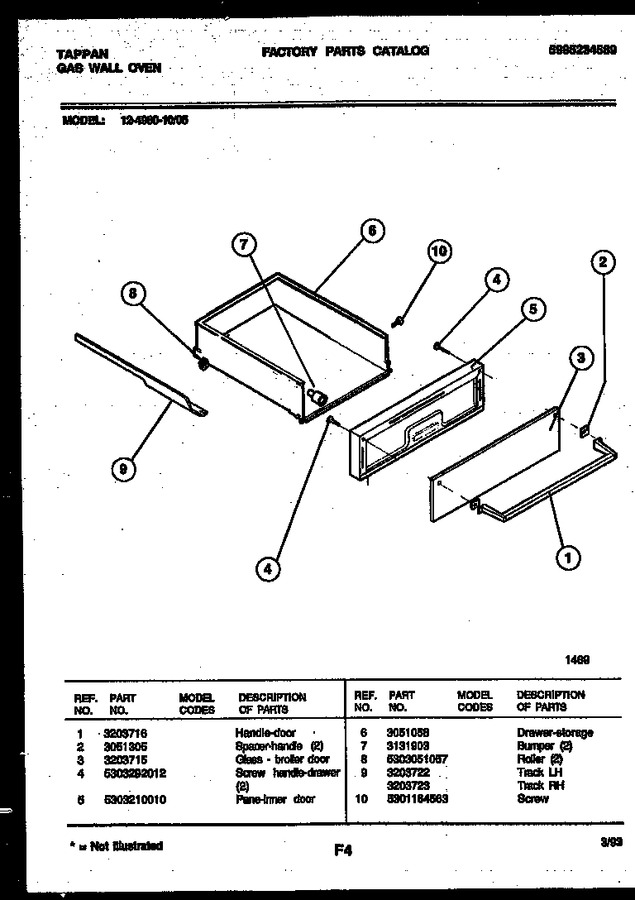

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203716 | Handle-door |
|
- | |||||
| 2 | 3051305 | Spacer, Handle, (2) |
|
- | |||||
| 3 | 3203715 | Glass-broiler Door |
|
- | |||||
| 4 | 5303292012 | Screw Handle-drawer (2) |
|
- | |||||
| 5 | 5303210010 | Pane-inner Door |
|
- | |||||
| 6 | 3051058 | Drawer-storage |
|
- | |||||
| 7 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 8 | 5303051057 | Roller (2) |
|
- | |||||
| 9 | 3203722 | Track Lh |
|
- | |||||
| 9 | 3203723 | Track Rh |
|
- | |||||
| 10 | 5301164563 | Screw |
|
- |
