Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303271090 Trim-top Appelez-nous -
2 5303280365 Clock-oven Control Appelez-nous -
3 5303280262 Switch, Oven Light Appelez-nous -
4 5303289373 Glass-control Panel Appelez-nous -
5 5303280374 Trim Control Panel (2) Appelez-nous -
6 5303271089 Trim-center Vent Appelez-nous -
7 3203026 Knob-controls (8) Appelez-nous -
8 3202625 Knob Appelez-nous -
9 5303271088 End Cap-left Side Appelez-nous -
10 5303271087 End Cap-right Side Appelez-nous -
11 316003600 Plate Inst. Mtg. Appelez-nous -
12 5303210685 Shield-controls Appelez-nous -
13 5303271091 Deflector-flue Appelez-nous -
*85266 5303016305 Bezel - Switch Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

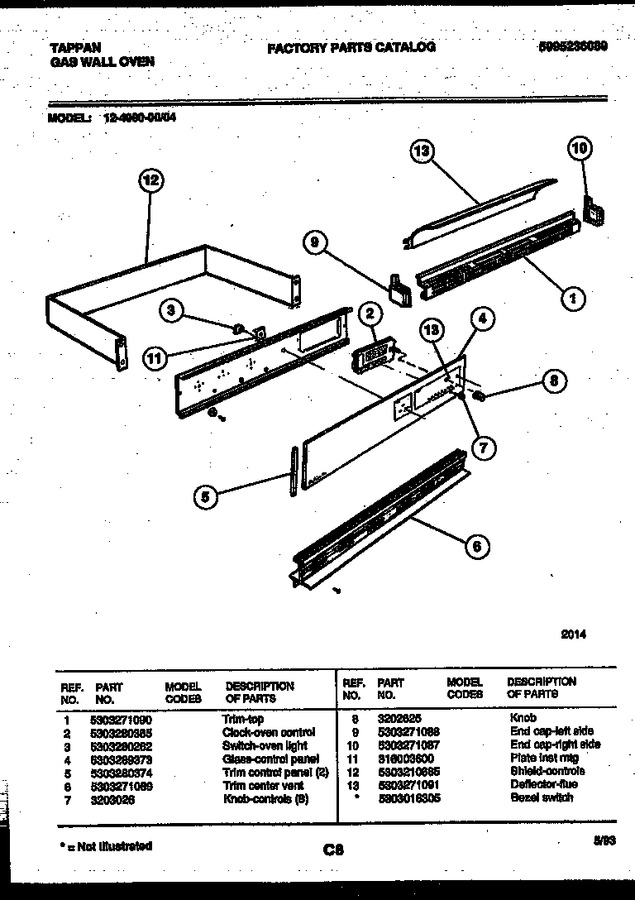

Diagram for 12-4990-00-04
