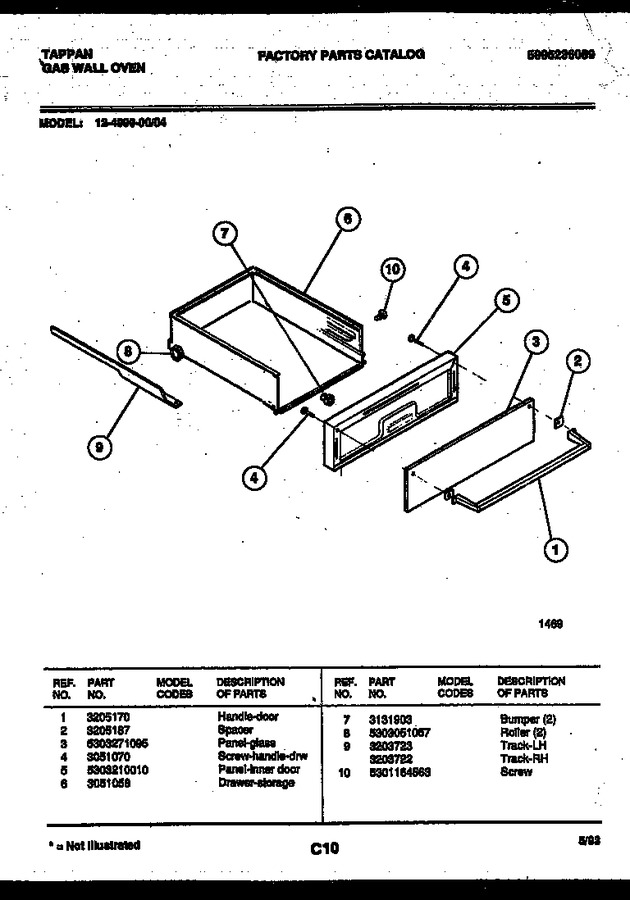

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205170 | Handle-door |
|
- | |||||
| 2 | 3205187 | Spacer |
|
- | |||||
| 3 | 5303271095 | Panel-glass |
|
- | |||||
| 4 | 3051070 | Screw-handle-drw |
|
- | |||||
| 5 | 5303210010 | Panel-inner Door |
|
- | |||||
| 6 | 3051058 | Drawer-storage |
|
- | |||||
| 7 | 3131903 | Bumper |
|
$ 55.36 | |||||
| 8 | 5303051057 | Roller (2) |
|
- | |||||
| 9 | 3203723 | Track-lh |
|
- | |||||
| 10 | 5301164563 | Screw |
|
- | |||||
| 9A | 3203722 | Track-rh |
|
- |
