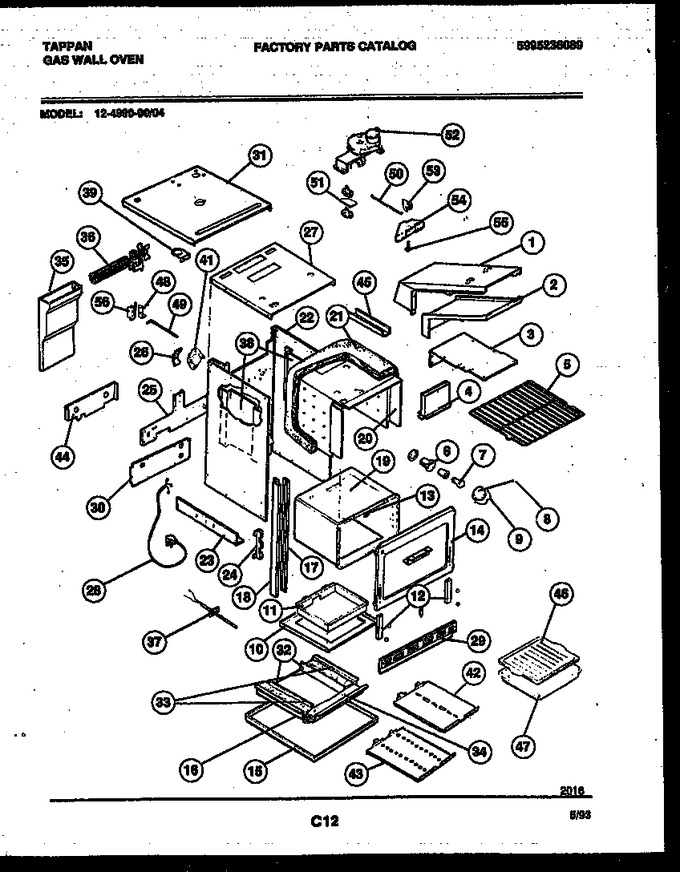

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210822 | Shield - Flue Top |
|
- | |||||
| 2 | 3203725 | Flue |
|
- | |||||
| 3 | 3203686 | Shield - Flue Bottom |
|
- | |||||
| 4 | 3203730 | Flue Adaptor |
|
- | |||||
| 5 | 3202442 | Rack-oven |
|
- | |||||
| 6 | 08011171 | Receptacle |
|
- | |||||
| 7 | 3201908 | Bulb |
|
- | |||||
| 8 | 5304524341 | Lens (Replaces: 3201911) |
|
Immediately | $ 14.18 | ||||
| 9 | 3204483 | Retainer-lens |
|
- | |||||
| 10 | 5303296327 | Bottom - Oven |
|
- | |||||
| 11 | 5303210700 | Box -burner |
|
- | |||||
| 12 | 3203688 | Support,oven Front |
|
- | |||||
| 14 | 5303296326 | Front-oven |
|
- | |||||
| 15 | 3202447 | Wrap - Outer Base |
|
- | |||||
| 16 | 5303210706 | Shield - Insulator Base |
|
- | |||||
| 17 | 3203665 | Trim Inner-lh |
|
- | |||||
| 18 | 5303280370 | Trim-outer Side |
|
- | |||||
| 19 | 5303296407 | Liner-oven |
|
- | |||||
| 20 | 3203684 | Shield-top & Sides |
|
- | |||||
| 21 | 5303210713 | Insulation - Back |
|
- | |||||
| 22 | 5303210686 | Wrapper-outer Back & Sides |
|
- | |||||
| 23 | 3016278 | Support, Height (2) |
|
- | |||||
| 24 | 3201631 | Channel, Hinge |
|
$ 58.22 | |||||
| 25 | 5303210721 | Bracket - Safety Valve |
|
- | |||||
| 26 | 3016281 | Spring, Oven (2) |
|
- | |||||
| 27 | 5303210683 | Wrapper, Top |
|
- | |||||
| 28 | 3203699 | Cord Power |
|
- | |||||
| 29 | 3205168 | Lower Oven Trim |
|
- | |||||
| 30 | 3203678 | Cover-wire |
|
- | |||||
| 31 | 5303210681 | Wrapper - Outer Top |
|
- | |||||
| 32 | 5303203729 | Angles-shield |
|
- | |||||
| 33 | 5303210711 | Insulation-btm-sides |
|
- | |||||
| 34 | 5303210712 | Insulation-btm-front |
|
- | |||||
| 35 | 5303210839 | Duct-blower Motor |
|
- | |||||
| 36 | 5303210808 | Motor - Blower Fan |
|
- | |||||
| 37 | 5303210806 | Sensor |
|
- | |||||
| 38 | 5303210841 | Shield - Bodysides |
|
- | |||||
| 39 | 5303210842 | Bracket - Thermo Protector |
|
- | |||||
| 41 | 5303210644 | Switch-thermo |
|
- | |||||
| 42 | 5303210844 | Shield-lower Burner |
|
- | |||||
| 43 | 5303210843 | Shield-insulation |
|
- | |||||
| 44 | 5303210845 | Shield-housing |
|
- | |||||
| 45 | 5303210846 | Shield-insulation |
|
- | |||||
| 46 | 5303293415 | Insert-broiler Pan |
|
- | |||||
| 47 | 5303293416 | Pan-broiler |
|
- | |||||
| 48 | 3202384 | Bracket - Switch Mtg |
|
- | |||||
| 49 | 3202077 | Rod-switch |
|
- | |||||
| 50 | 3016241 | Rod |
|
- | |||||
| 51 | 3016276 | Bracket-motor Mtg |
|
- | |||||
| 52 | 5303269766 | Motor Latch Assy |
|
- | |||||
| 53 | 3051648 | Latch |
|
- | |||||
| 54 | 3051647 | Base-latch Motor |
|
- | |||||
| 55 | 5308012004 | Axle-latch |
|
$ 8.29 | |||||
| 56 | 5303275924 | Switch - Oven Light |
|
$ 92.03 | |||||
| *85282 | 3204114 | Spring-rod |
|
- | |||||
| *85282 | 19100260005 | Diagram-wiring-(not For Purchase) |
|
- | |||||
| 17A | 3203664 | Trim Inner-rh |
|
- | |||||
| 21A | 5303210714 | Insulation - Top |
|
- | |||||
| 21B | 5303210709 | Insulation, Adaptor |
|
- | |||||
| 21C | 5303210708 | Insulation-bottom |
|
- | |||||
| 21D | 5303210707 | Insulation, Top & Sides |
|
- | |||||
| 55A | 3201632 | Spacer-oven (2) (non-illustrated) |
|
- | |||||
| 55B | 5303210710 | Insulation-bottom (non-illustrated) |
|
- | |||||
| 55C | 3051647 | Housing, Latch |
|
- | |||||
| 55D | 3019063 | Retainer-door (2) (non-illustrated) |
|
- | |||||
| 55E | 5303210851 | Shield-insulation Base (non-illustrated) |
|
- |
