02 - Console Panel


03 - Door


04 - Motor, Heater And Spray Arm


05 - Tub


06 - Frame


07 - Rack


08 - Detergent Cup


09 - Top

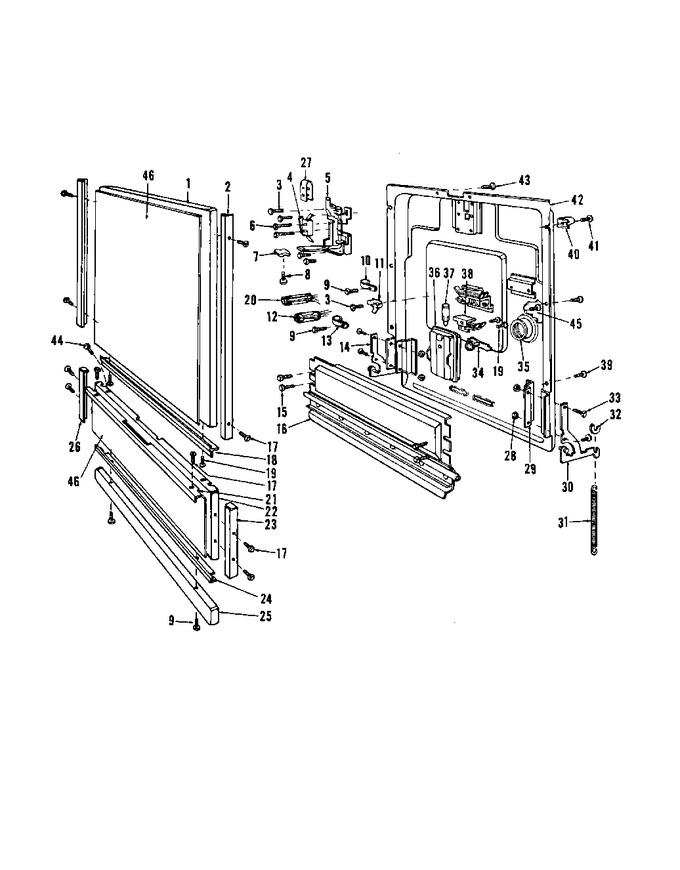

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807262		Door Panel (white)		Appelez-nous	-
2	808026		Door Panel Trim-side		Appelez-nous	-
3	806830		Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl.		Appelez-nous	-
4	807043		Xswitch		Appelez-nous	-
5	807016		Xlatch Assembly		Appelez-nous	-
6	808618		Screw 6-32x1``lg. Hex Hd. Cad. Pl.		Appelez-nous	-
7	806398		Xlatch Knob		Appelez-nous	-
8	808715		Screw 8-32x5/16 Lg. Hex Hd. Cad. Pl.		Appelez-nous	-
9	W11233072		Screw 8x3/8 Lg. C.r. Binding Hd. Cad. Pl.   (Replaces: 803416)			Immediately	$ 12.62
10	808442		Clamp		Appelez-nous	-
11	807213		Grounding Terminal		Appelez-nous	-
12	808485		Xthermostat (high Limit)		Appelez-nous	-
13	808495		Clamp		Appelez-nous	-
14	805682		Xcounterbalance Arm Assembly-l.h.		Appelez-nous	-
15	806810		Screw 8x3/8 Lg. C.r. Round Hd. St. St.		Appelez-nous	-
16	5300809243		Xvent Plate Assembly   (Replaces: 808369)				$ 20.25
17	WP74004005		Screw 6x1/4 Lg. C.r. Truss Hd Chrome Pl.   (Replaces: 807293)				$ 6.95
18	COMM PART		Door Panel Trim-bottom   (Replaces: 807347)		Appelez-nous	-
19	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
20	808646		Xthermostat (water Heat)		Appelez-nous	-
21	808346		Access Panel Trip - Top		Appelez-nous	-
22	807257		Access Panel - White		Appelez-nous	-
23	808028		Access Panel Trim-r.h.		Appelez-nous	-
24	808521		Access Panel Trim-bottom		Appelez-nous	-
25	808522		Xtoeplate		Appelez-nous	-
26	808029		Access Panel Trim - L.h.		Appelez-nous	-
27	807450		Cover - Switch		Appelez-nous	-
28	M0282009		Nut   (Replaces: 808470)				$ 12.06
29	COMM PART		Counterbalance Arm Mounting Bracket   (Replaces: 806717)		Appelez-nous	-
30	805681		Xcounterbalance Arm Assembly R.h.		Appelez-nous	-
31	805683		Xdoor Spring (includes Key No. 32)		Appelez-nous	-
32	805884		Spring Pad		Appelez-nous	-
33	803311		Screw 10-24x5/8 Lg. C.r. Truss Hd. Chr. Pl.		Appelez-nous	-
34	806755		Xfill Plug		Appelez-nous	-
35	805631		Grommet - Dispenser		Appelez-nous	-
36	806753		Xbody Assembly		Appelez-nous	-
37	806757		Xplunger		Appelez-nous	-
38	806756		Bracket Assembly		Appelez-nous	-
39	806967		Screw 8x1/2 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
40	807449		Guide - Door		Appelez-nous	-
41	808749		Screw 8x5/8 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
42	COMM PART		Porcelain Weld Assembly   (Replaces: 807194)		Appelez-nous	-
43	806894		Screw 8 X 5/16 Lg. C.r. Truss Hd. St. St.		Appelez-nous	-
44	WP90767		Screw 8x3/8 Lg. C.r. Hex Washer Hd. Chrome Pl.   (Replaces: 808658)			Immediately	$ 7.04
45	806863		Screw 10x3/8 Lg. Truss Washer Hd. St. St.		Appelez-nous	-
46	COMM PART		Door & Access Panel Inserts (almond & Wheat)   (Replaces: 807645)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
