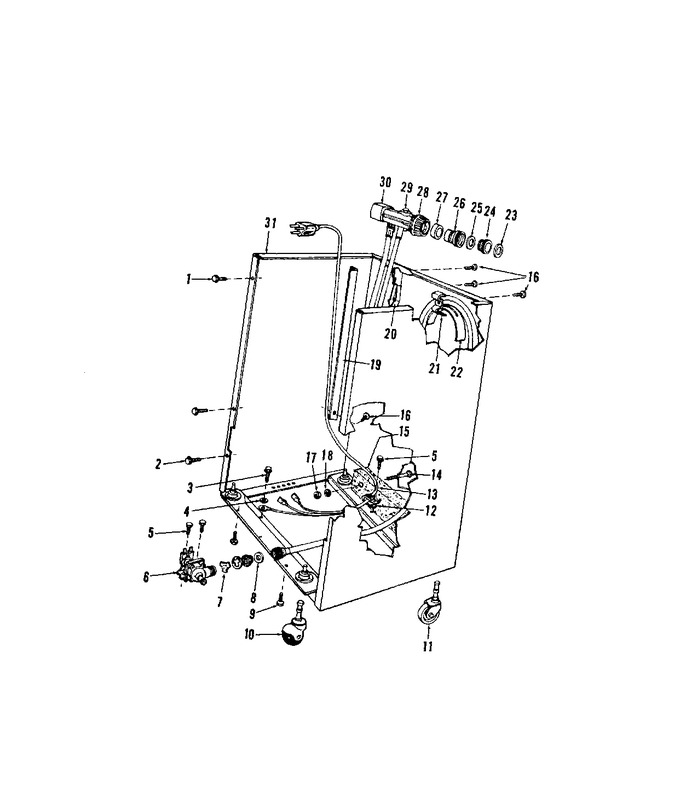

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	806539		Screw 10-24 X 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.		Appelez-nous	-
2	806663		Screw 10-24x7/8 Lg. Acorn Hex Washer Hd.		Appelez-nous	-
3	807951		Screw 10-32x1/2 C.r. Hex Washer Hd. Cad. Pl.		Appelez-nous	-
4	807373		Washer		Appelez-nous	-
5	807950		Screw 10bx1/2 Lg. Hex Slot Hd. Cad. Pl.		Appelez-nous	-
6	808667		Xwater Valve Kit (includes Key No. 7)		Appelez-nous	-
7	808432		Flow Washer		Appelez-nous	-
8	800787		Washer		Appelez-nous	-
9	WP90767		Screw 8x3/8 Lg. C.r. Hex Washer Hd. Chrome Pl.   (Replaces: 808658)			Immediately	$ 7.04
10	808542		Xcaster-front		Appelez-nous	-
11	808543		Xcaster-rear		Appelez-nous	-
12	804426		Clamp		Appelez-nous	-
13	805046		Xpower Cord		Appelez-nous	-
14	808612		Screw 1/4-20x4 Lg. C.r. Truss Hd. Cad. Pl.		Appelez-nous	-
15	808615		Weight		Appelez-nous	-
16	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
17	808661		Nut		Appelez-nous	-
18	808613		Washer		Appelez-nous	-
19	COMM PART		Hose Guard   (Replaces: 808120)		Appelez-nous	-
20	805859		Hose Guide		Appelez-nous	-
21	806142		Clamp		Appelez-nous	-
22	806143		Hose Support		Appelez-nous	-
23	803393		Washer		Appelez-nous	-
24	800782		Xscrew Adaptor		Appelez-nous	-
25	803392		Washer		Appelez-nous	-
26	WPW10254672		Xcoupler Adaptor Assembly   (Replaces: 803149)			Immediately	$ 49.54
27	WP910218		Rubber Sleeve Seal   (Replaces: 806584)			Immediately	$ 9.05
28	WP285170		Xcollar Repair Kit   (Replaces: 807499)			Immediately	$ 64.29
29	807498		Xpressure Relief Valve-kit		Appelez-nous	-
30	DWD8C		Hose & Coupler Assembly   (Replaces: 807496)		Appelez-nous	-
31	808537		Frame Assembly (almond)		Appelez-nous	-
