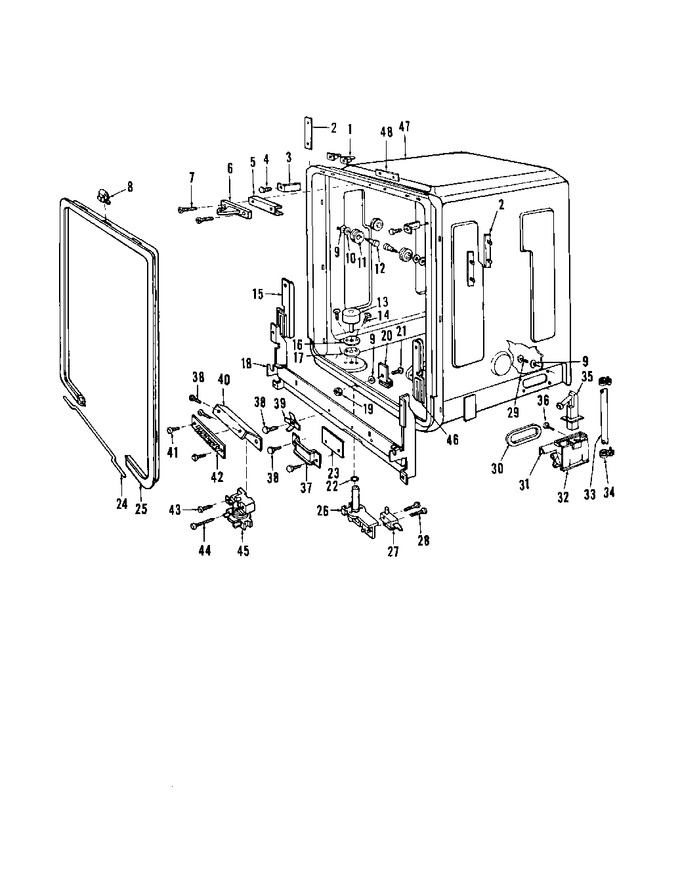

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807018		Nut		Appelez-nous	-
2	807038		Tapping Plate		Appelez-nous	-
3	807454		Pad - Tub		Appelez-nous	-
4	806539		Screw 10-24 X 7/8 Lg. Acorn Hex Washer Hd. Chr. Pl.		Appelez-nous	-
5	807073		Shim		Appelez-nous	-
6	807015		Xdoor Strike		Appelez-nous	-
7	806890		Screw 10 X 3/4 Lg. C.r. Flat Hd. Chrome Pl.		Appelez-nous	-
8	805763		Xtub Gasket Clip Kit (includes Key No. 20)		Appelez-nous	-
9	805776		Sealing Washer		Appelez-nous	-
10	803367		Washer		Appelez-nous	-
11	807180		Tub Roller		Appelez-nous	-
12	808564		Screw & Washer Kit (includes Key Nos. 9 & 10)		Appelez-nous	-
13	804630		Xfloat		Appelez-nous	-
14	807268		Screw 10x1 Lg. Hex Washer Hd. St. St.		Appelez-nous	-
15	807470		Xcounterbalance Arm Guide L.h.		Appelez-nous	-
16	808064		Plate - Float Tube		Appelez-nous	-
17	808063		Gasket - Float Tube		Appelez-nous	-
18	808739		Hinge Weld Assembly		Appelez-nous	-
19	803346		Nut		Appelez-nous	-
20	COMM PART		Dam Clip   (Replaces: 808115)		Appelez-nous	-
21	WP250830		Screw 8-32 X 1/2 Lg. C.r. Truss Hd. St. St.   (Replaces: 803319)				$ 7.16
22	807759		``o`` Ring		Appelez-nous	-
23	COMM PART		Wire Shield   (Replaces: 808013)		Appelez-nous	-
24	808344		Gasket Junction Wire		Appelez-nous	-
25	5303912631		Xtub Gasket & Wire Assembly (includes Key Nos. 8 & 24)   (Replaces: 808345)		Appelez-nous	-
26	807677		Xfloat Switch Kit (includes Key Nos. 16,17,22, 27 & 28)		Appelez-nous	-
27	807680		Xfloat Switch		Appelez-nous	-
28	804594		Screw 4-40x5/8`` Lg. Hex Hd. Cad. Pl.		Appelez-nous	-
29	806901		Screw 8 X 5/8 Lg. C.r. Hex Washer Hd. St. St.		Appelez-nous	-
30	806797		Blower Housing Gasket		Appelez-nous	-
31	808705		Tapping Plate		Appelez-nous	-
32	808706		Xvent Stack		Appelez-nous	-
33	807891		Water Inlet Tubing (includes Key No. 34)		Appelez-nous	-
34	807813		Clamp		Appelez-nous	-
35	808707		Water Inlet Nozzle		Appelez-nous	-
36	808818		Screw 8 X 1/2 Lg. C.r. Flat Hd. Cad. Pl.		Appelez-nous	-
37	806723		Clamp - Wiring		Appelez-nous	-
38	806830		Screw 8-32x5/16 Lg. C.r. Hex Hd. Cad. Pl.		Appelez-nous	-
39	807213		Grounding Terminal		Appelez-nous	-
40	807849		Terminal Board Bracket		Appelez-nous	-
41	807501		Screw 8x1/2 Lg. C.r. Truss Hd. Chrome Pl.		Appelez-nous	-
42	COMM PART		Terminal Block Assembly   (Replaces: 807486)		Appelez-nous	-
43	WP488234		Screw 8-32x1/4 Lg. C.r. Pan Hd. Cad. Pl.   (Replaces: 806593)				$ 6.07
44	804672		Screw 8-32x1 1/4 Lg. C.r. Oval Hd. Cad. Pl.		Appelez-nous	-
45	805255		Xmotor Relay		Appelez-nous	-
46	807471		Xcounterbalance Arm Guide R.h.		Appelez-nous	-
47	808725		Tub & Gasket Assembly		Appelez-nous	-
48	808868		Latch Tapping Plate		Appelez-nous	-
