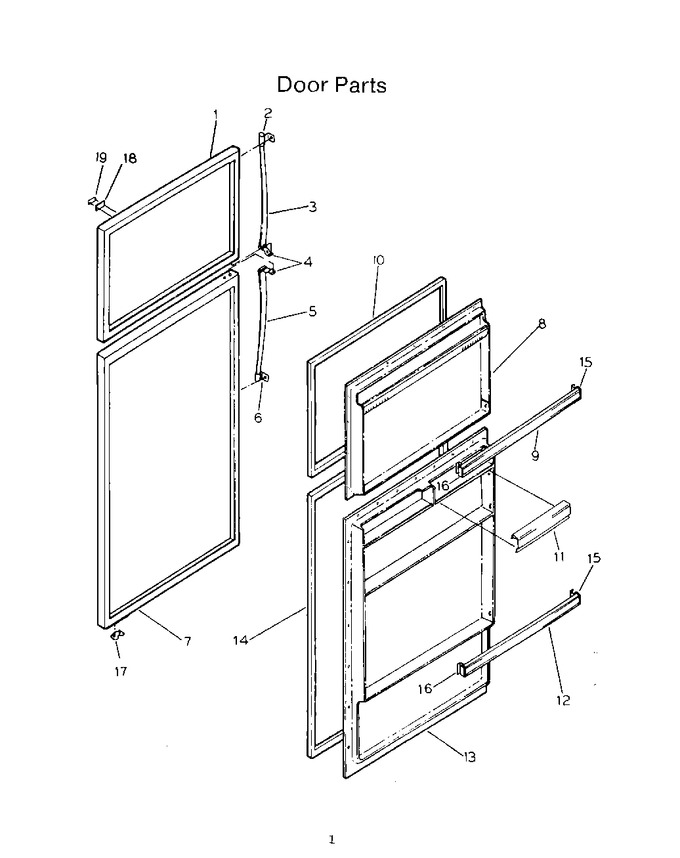

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	790360		Exterior Panel - Freezer-coffee		Appelez-nous	-
1	790358		Exterior Panel - Freezer-avocado		Appelez-nous	-
1	790359		Exterior Panel - Freezer-harvest		Appelez-nous	-
1	790299		Exterior Panel - Freezer-white		Appelez-nous	-
1	790361		Exterior Panel - Freezer-almond		Appelez-nous	-
1	790001		Bearing Hinge (4)		Appelez-nous	-
2	790145		End - Handle Top Freezer		Appelez-nous	-
3	790003		Grip - Handle Freezer		Appelez-nous	-
4	790300		End-handle (2)		Appelez-nous	-
4	790004		Screw-handle (8)		Appelez-nous	-
5	790003		Grip - Handle - Refrigerator		Appelez-nous	-
6	790005		End Handle-refrigerator Bottom		Appelez-nous	-
7	790001		Bearing Hinge (4)		Appelez-nous	-
7	790364		Exterior Panel-refrigerator-coffee		Appelez-nous	-
7	790363		Exterior Panel-refrigerator-harvest		Appelez-nous	-
7	790362		Exterior Panel-refrigerator-avocado		Appelez-nous	-
7	790365		Exterior Panel-refrigerator-almond		Appelez-nous	-
7	790301		Exterior Panel-refrigerator Bottom		Appelez-nous	-
8	790008		Screw No.8 X 1/2 - To Exterior Panel (22)		Appelez-nous	-
8	790302		Interior Panel-freezer		Appelez-nous	-
9	790303		Rack-freezer Door		Appelez-nous	-
10	790304		Gasket-freezer Door		Appelez-nous	-
11	790305		Door Compartment (2)		Appelez-nous	-
12	790306		Rack-refrigerator		Appelez-nous	-
13	790008		Screw No.8 X 1/2 (34)		Appelez-nous	-
13	790307		Interior Panel-refrigerator		Appelez-nous	-
14	790308		Gasket-refrigerator Door		Appelez-nous	-
15	790155		Support Rack - L.h. (2)		Appelez-nous	-
16	790156		Support Rack - R.h. (2)		Appelez-nous	-
17	790157		Door Stop (2)		Appelez-nous	-
18	790016		Nameplate		Appelez-nous	-
19	790219		Kit - Door Conversion - Almond		Appelez-nous	-
19	790015		Tape		Appelez-nous	-
19	790018		Plug Button-white-r.h. Handle & Door Stop Mounting Holes (8)		Appelez-nous	-
19	790172		Plug Button-avocado-r.h. Handle & Door Stop Mounting Holes (8)		Appelez-nous	-
19	790173		Plug Button-harvest-r.h. Handle & Door Stop Mounting Holes (8)		Appelez-nous	-
19	790174		Plug Button-coffee-r.h. Handle & Door Stop Mounting Holes (8)		Appelez-nous	-
19	790175		Plug Button-almond-r.h. Handle & Door Stop Mounting Holes (8)		Appelez-nous	-
19	790019		Plug Button-white-l.h. Upper Hinge Bearing (2)		Appelez-nous	-
19	790176		Plug Button-avocado-l.h. Upper Hinge Bearing (2)		Appelez-nous	-
19	790177		Plug Button-harvest-l.h. Upper Hinge Bearing (2)		Appelez-nous	-
19	790178		Plug Button-coffee-l.h. Upper Hinge Bearing (2)		Appelez-nous	-
19	790179		Plug Button-almond-l.h. Upper Hinge Bearing (2)		Appelez-nous	-
19	790158		Kit - Door Conversion - White		Appelez-nous	-
19	790216		Kit Door Conversion-avocado		Appelez-nous	-
19	790217		Kit - Door Conversion - Harvest		Appelez-nous	-
19	790218		Kit - Door Conversion - Coffee		Appelez-nous	-
19	790014		Label - Nameplate		Appelez-nous	-
