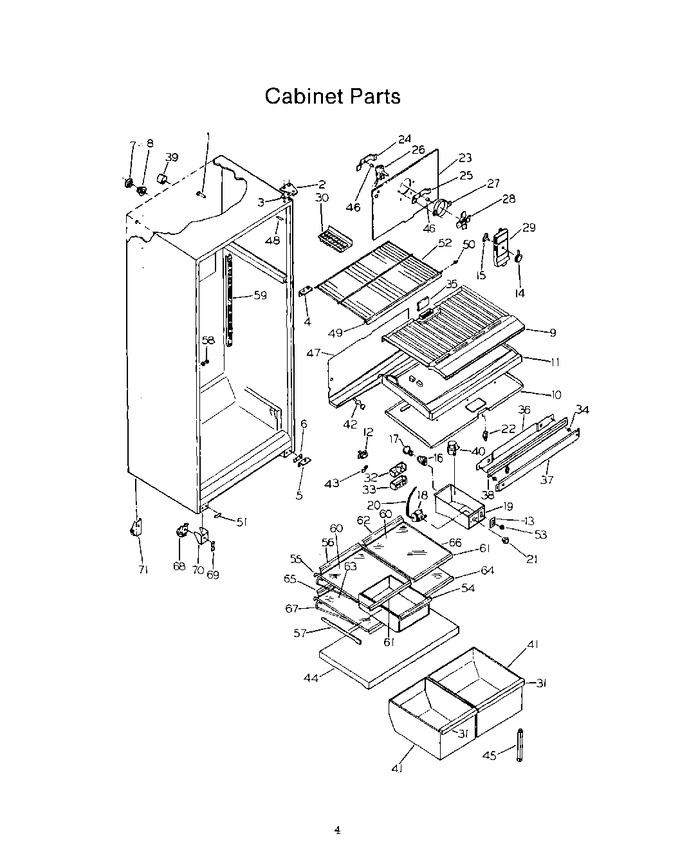

02 - Door


03 - Cabinet


04 - System And Automatic Defrost


05 - Icemaker


06 - Icemaker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	790021		Support - Coil Cover		Appelez-nous	-
2	790027		Washer-hinge & Door (2)		Appelez-nous	-
2	790185		Cover - Top Hinge - Harvest		Appelez-nous	-
2	12400035		Cover - Top Hinge - White   (Replaces: 790023)			Immediately	$ 60.44
2	790024		Screw - Bracket		Appelez-nous	-
2	790022		Bracket - Hinge Top		Appelez-nous	-
2	790186		Cover - Top Hinge - Coffee		Appelez-nous	-
2	790187		Cover - Top Hinge - Almond		Appelez-nous	-
2	790315		Washer-hinge & Door (2)		Appelez-nous	-
2	790191		Plug-hinge Holes-almond (2)		Appelez-nous	-
2	790190		Plug-hinge Holes-coffee (2)		Appelez-nous	-
2	790189		Plug-hinge Holes-harvest (2)		Appelez-nous	-
2	790188		Plug-hinge Holes-avocado (2)		Appelez-nous	-
2	790025		Plug-hinge Holes-white (2)		Appelez-nous	-
2	790184		Cover - Top Hinge - Avocado		Appelez-nous	-
3	790028		Shim - Upper Hinge		Appelez-nous	-
4	790029		Bracket-center Hinge		Appelez-nous	-
4	790031		Screw-hinge (4)		Appelez-nous	-
4	790030		Pin - Center Hinge		Appelez-nous	-
5	790032		Bracket-lower Hinge		Appelez-nous	-
5	WP4159193		Plate-tapping-lower Hinge (2)   (Replaces: 790316)				$ 4.29
5	790034		Pin - Lower Hinge		Appelez-nous	-
5	790035		Screw-hinge To Base (2)		Appelez-nous	-
6	790036		Shim - Lower Hinge		Appelez-nous	-
7	790037		Ferrule - Inner		Appelez-nous	-
8	790038		Ferrule - Outer		Appelez-nous	-
9	790317		Bottom-freezer		Appelez-nous	-
10	790041		Screw No.8 X 1 3/4 (3)		Appelez-nous	-
10	WP854334		Top-refrigerator   (Replaces: 790318)				$ 11.95
11	790319		Divider-compartment		Appelez-nous	-
12	790127		Spout - Drain Tube		Appelez-nous	-
13	4396923		Label - Control Box   (Replaces: 790044)			Immediately	$ 52.04
14	790045		Knob - Damper Control		Appelez-nous	-
15	790046		Damper - Fan Cover		Appelez-nous	-
15	790047		Nut - Damper Mounting		Appelez-nous	-
16	790048		Socket-light		Appelez-nous	-
17	790049		Bulb - Light		Appelez-nous	-
18	790051		Screw No.6-32 X 1/4 (2)		Appelez-nous	-
18	790128		Cold Control		Appelez-nous	-
19	790053		Screw No.8-32 X 3/8		Appelez-nous	-
19	790052		Box - Control		Appelez-nous	-
20	790054		Tube - Plastic		Appelez-nous	-
21	WP7112P004-60		Knob - Control   (Replaces: 790055)			Immediately	$ 11.07
22	790056		Switch-light		Appelez-nous	-
23	790320		Cover-coil		Appelez-nous	-
23	790058		Screw No.8 X 1/2 (4)		Appelez-nous	-
23	790063		Nut No.8 U Type		Appelez-nous	-
24	WP7212P006-60		Bracket - Rear Motor Mounting   (Replaces: 790059)				$ 105.81
25	790060		Bracket - Front Motor Mounting		Appelez-nous	-
25	790053		Screw No.8 X 5/8 (2)		Appelez-nous	-
26	790061		Motor - Blower		Appelez-nous	-
27	790062		Ring - Fan Orifice		Appelez-nous	-
28	40A15		Fan   (Replaces: 790064)			Immediately	$ 1.98
29	790129		Cover - Fan		Appelez-nous	-
30	4396923		Tray - Ice (2)   (Replaces: 790043)			Immediately	$ 52.04
31	790321		Trim-crisper Pan (2)		Appelez-nous	-
32	790068		Deflector - Air		Appelez-nous	-
33	790069		Cover - Air Deflector		Appelez-nous	-
34	790071		Washer-spacer (2)		Appelez-nous	-
34	790131		Spacer-mullion Mounting (2)		Appelez-nous	-
35	790072		Pad-foam		Appelez-nous	-
36	790322		Clamp-mullion Mounting		Appelez-nous	-
37	790367		Mullion-harvest		Appelez-nous	-
37	790323		Mullion-white		Appelez-nous	-
37	790366		Mullion-avocado		Appelez-nous	-
37	790368		Mullion-coffee		Appelez-nous	-
37	790369		Mullion-almond		Appelez-nous	-
38	790324		Heater-mullion		Appelez-nous	-
39	790076		Tube-in Ferrule		Appelez-nous	-
40	790077		Timer-defrost		Appelez-nous	-
40	790078		Screw No.6-20 X 1/4 (2)		Appelez-nous	-
41	790325		Pan-storage (2)		Appelez-nous	-
42	790135		Ring-seal		Appelez-nous	-
42	790134		Tube-defrost Drain		Appelez-nous	-
43	790082		Screw-clamp (2)		Appelez-nous	-
43	790104		Clamp - Tube		Appelez-nous	-
44	790326		Cover-crisper		Appelez-nous	-
45	790138		Support - Crisper Cover		Appelez-nous	-
46	790084		Bushing - Motor Mounting (2)		Appelez-nous	-
47	790327		Trough-drain		Appelez-nous	-
48	4396923		Trim-cabinet Corner-avocado (4)   (Replaces: 790232)			Immediately	$ 52.04
48	790235		Trim-cabinet Corner-almond (4)		Appelez-nous	-
48	790234		Trim-cabinet Corner-coffee (4)		Appelez-nous	-
48	790140		Trim-cabinet Corner-white (4)		Appelez-nous	-
48	8002P072-60		Trim-cabinet Corner-harvest (4)   (Replaces: 790233)				$ 306.52
49	790328		Trim-freezer Shelf		Appelez-nous	-
50	790333		Clip-trim (3)		Appelez-nous	-
50	790329		Cap-protector-freezer Shelf		Appelez-nous	-
50	790261		Screw-supports (8)		Appelez-nous	-
51	790087		Button Plug - L.h. Hinge Hole		Appelez-nous	-
52	790330		Shelf-freezer		Appelez-nous	-
53	790066		Switch - Slide		Appelez-nous	-
54	790334		Pan-meat		Appelez-nous	-
55	790335		Frame-meat Shelf		Appelez-nous	-
56	790336		Trim-meat Shelf-rear		Appelez-nous	-
57	790339		Screw (2)		Appelez-nous	-
57	790338		Hanger-meat Pan-l.h.		Appelez-nous	-
58	74003986		Support-shelf (8)   (Replaces: 790260)				$ 13.08
59	790342		Screw-center Channel (3)		Appelez-nous	-
59	790340		Channel-shelf Mounting (2)		Appelez-nous	-
59	790341		Channel-center		Appelez-nous	-
59	790240		Screw Channels (6)		Appelez-nous	-
60	790343		Shelf-glass		Appelez-nous	-
61	790344		Trim-front (4)		Appelez-nous	-
62	790345		Trim-rear (4)		Appelez-nous	-
63	790346		Shelf-glass		Appelez-nous	-
64	790347		Trim-front		Appelez-nous	-
65	790348		Trim-rear		Appelez-nous	-
66	790349		Frame-cantilever Shelf (2)		Appelez-nous	-
67	790350		Frame-cantilever Shelf		Appelez-nous	-
68	790351		Roller Assembly-front (2)		Appelez-nous	-
69	790354		Washer-nylon (2)		Appelez-nous	-
69	790353		Bolt No.1/4 X 20 (2)		Appelez-nous	-
69	790352		Spring-adj. Roller Flat (2)		Appelez-nous	-
70	790355		Support-base Cabinet (2)		Appelez-nous	-
71	790096		Owners Manual		Appelez-nous	-
71	790331		Service Data Sheet		Appelez-nous	-
71	790093		Button - Decorative Plug		Appelez-nous	-
71	790094		Button Plug Liner Holes (2)		Appelez-nous	-
71	790090		Button Plug Water Tube Hole (2)		Appelez-nous	-
71	790098		Butter Dish		Appelez-nous	-
71	790091		Button Plug - Harness Hole Ice Maker		Appelez-nous	-
71	790332		Ice Container		Appelez-nous	-
71	790356		Roller Assembly-rear (2)		Appelez-nous	-
71	790357		Bolt No.1/4 X 28 (2)		Appelez-nous	-
71	790082		Screw No.8 X 32 (2)		Appelez-nous	-
71	790072		Button-plug-ice Maker & Freezer Shelf Mounting Holes		Appelez-nous	-
71	790095		Wiring Harness		Appelez-nous	-
