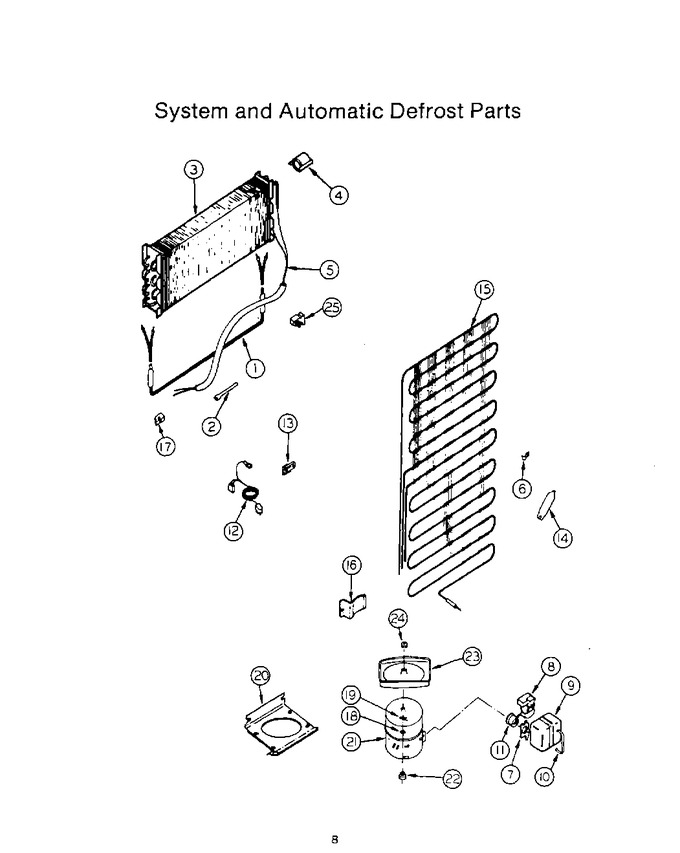

04 - System And Automatic Defrost


05 - Icemaker


06 - Icemaker Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	790309		Heater-defrost		Appelez-nous	-
2	790100		Clip - Heater		Appelez-nous	-
3	790310		Evaporator		Appelez-nous	-
4	790102		Thermostat-defrost		Appelez-nous	-
5	790311		Suction & Cap Tube		Appelez-nous	-
6	790104		Clamp - Tube		Appelez-nous	-
6	790008		Screw-clamp		Appelez-nous	-
7	790105		Clip - Overload		Appelez-nous	-
8	790106		Relay		Appelez-nous	-
9	790107		Cover - Terminal		Appelez-nous	-
10	790108		Clamp - Cover		Appelez-nous	-
11	790312		Overload		Appelez-nous	-
12	790110		Cord - Service		Appelez-nous	-
13	790111		Clamp-cable (2)				$ 101.97
14	790112		Drier		Appelez-nous	-
15	790313		Condenser		Appelez-nous	-
16	790082		Screw-bracket (4)		Appelez-nous	-
16	790314		Bracket-condenser Mounting (4)		Appelez-nous	-
17	790123		Block - Evaporator R.h.		Appelez-nous	-
18	790116		Washer-compressor Mounting (4)		Appelez-nous	-
19	790117		Clip-compressor Mounting (4)		Appelez-nous	-
20	790162		Plate - Compressor Mounting		Appelez-nous	-
21	790119		Compressor		Appelez-nous	-
22	790120		Grommet-compressor Mounting (4)		Appelez-nous	-
23	790163		Defrost Pan		Appelez-nous	-
24	790122		Nut - Lock		Appelez-nous	-
25	790115		Block - Evaporator L.h.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
