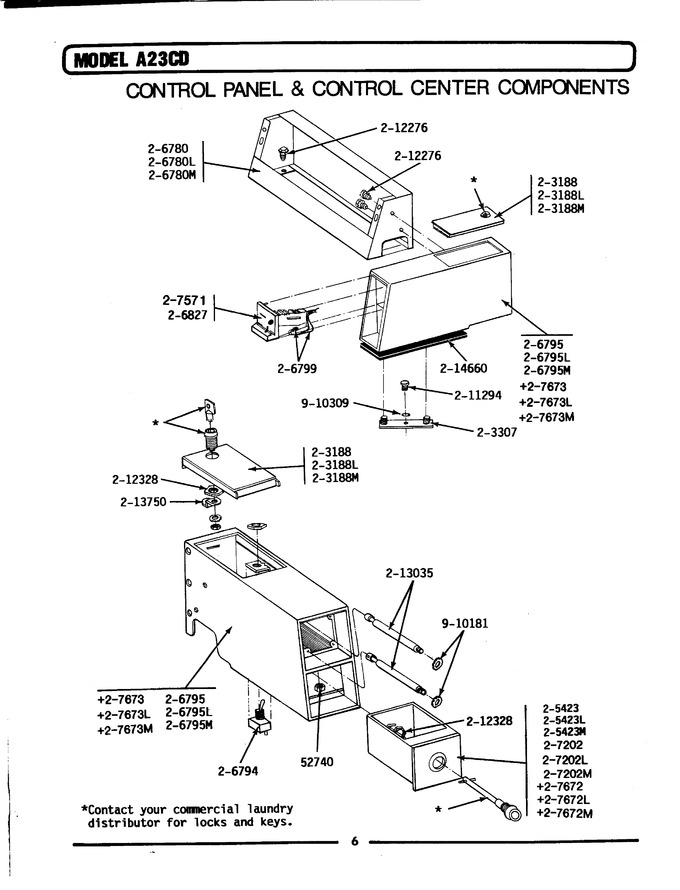

01 - Cd Control Panel, Top Cover & Lid Switch


02 - Cd Control Panel, Top Cover & Lid Switch


03 - Control Panel


04 - Cabinet\water Valve\hoses\front Panel


05 - Tub\agitator


06 - Transmission


07 - Orbital Transmission


08 - Base\pump\motor


09 - Clutch\brake\belts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP62739		Nut   (Replaces: Y052740)	00			$ 6.85
002	203188		Door, Access (wht)	00	Appelez-nous	-
003	203188L		(alm)	00	Appelez-nous	-
004	NLA		Mtg. Strap----na	00	Appelez-nous	-
005	208883		Coin Box (wht)   (Replaces: 205423)	00	Appelez-nous	-
006	208883		(alm)   (Replaces: 205423L)	00	Appelez-nous	-
007	206780		Control Cover Assy. (wht)	00	Appelez-nous	-
008	206780L		(alm)	00	Appelez-nous	-
009	206794		Switch	00	Appelez-nous	-
010	206795		Coin Drop Meter Assy	00	Appelez-nous	-
011	206795L		Coin Drop Meter Assy	00	Appelez-nous	-
012	206799		Switch, Optic Assy.	00			$ 113.64
013	NLA		Coin Rejector (canada)	00	Appelez-nous	-
014	NLA		Coin Box (wht)	00	Appelez-nous	-
015	NLA		(alm)	00	Appelez-nous	-
016	NLA		Coin Rejector	00	Appelez-nous	-
017	207672		Coin Box (wht)	13	Appelez-nous	-
018	207672L		(alm)	13	Appelez-nous	-
019	207673		Control Center Case (wht)	13	Appelez-nous	-
020	207673L		(alm)	13	Appelez-nous	-
021	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
022	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
023	W11395752		Nut, Hex   (Replaces: 212328)	00			$ 11.74
024	213035		Bolt, Locking	00			$ 5.84
025	W11165684		Locking Cam   (Replaces: 213750)	00			$ 8.20
026	214660		Gasket, Meter Case	00	Appelez-nous	-
027	910181		Lock Washer	00	Appelez-nous	-
028	910309		Washer	00	Appelez-nous	-
