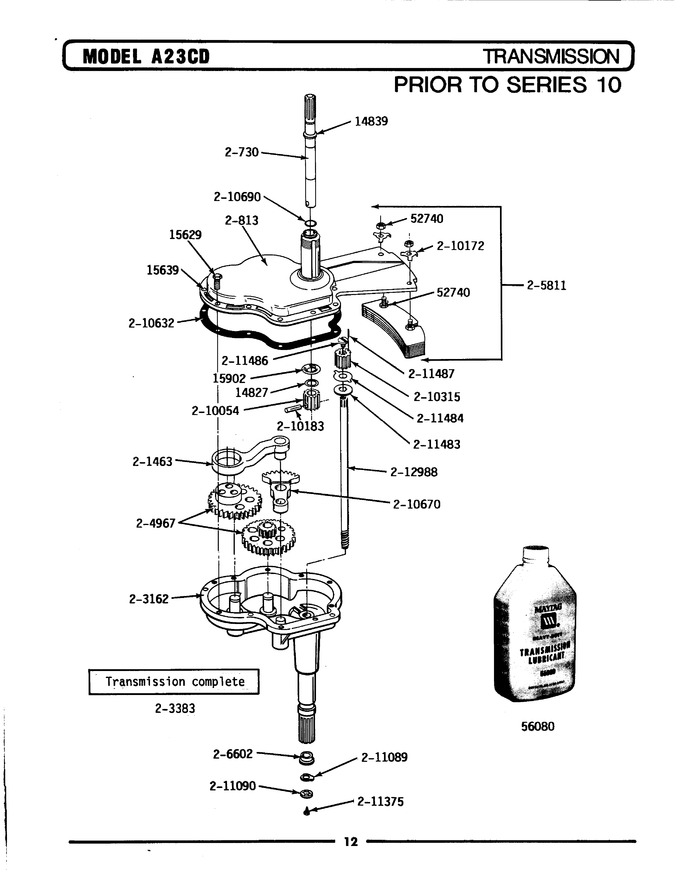

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y014827 | Washer-center Shaft | 00 |
|
- | ||||
| 002 | Y014839 | Collar-drive Shaft | 00 |
|
$ 8.33 | ||||
| 003 | Y015629 | Bolt, Grinding Chamber (drain) | 00 |
|
- | ||||
| 004 | NLA | Dowel Pin | 00 |
|
- | ||||
| 005 | Y015902 | Spring, Agitator | 00 |
|
- | ||||
| 006 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 007 | Y056080 | Trans Lube - Auto, 34 Oz. | 00 |
|
- | ||||
| 008 | 200730 | Agitator Shaft | 00 |
|
- | ||||
| 009 | NLA | Gear Case Cover Assembly | 00 |
|
- | ||||
| 010 | NLA | Pitman W/wrist Pin | 00 |
|
- | ||||
| 011 | NLA | Gear Housing W/studs & Tube | 00 |
|
- | ||||
| 012 | 203383 | Trans & Center Assy. (reg) | 00 |
|
- | ||||
| 013 | 204967 | Gear Kit-power Fin Agitator | 00 |
|
- | ||||
| 014 | NLA | Counterweight | 00 |
|
- | ||||
| 015 | 206602 | Seal, Lip (cntr Shaft) | 00 |
|
- | ||||
| 016 | 210054 | Pinion | 00 |
|
- | ||||
| 017 | NLA | Lock Washer | 00 |
|
- | ||||
| 018 | 210183 | Groov-pin, 1/4 X 1-1/4 | 00 |
|
- | ||||
| 019 | 210315 | Pinion | 00 |
|
- | ||||
| 020 | 210632 | Gasket | 00 |
|
- | ||||
| 021 | NLA | Segment | 00 |
|
- | ||||
| 022 | 210690 | Seal, Rubber | 00 |
|
$ 13.19 | ||||
| 023 | WP211089 | Lug, Stop (Replaces: 211089) | 00 |
|
$ 10.16 | ||||
| 024 | WP22003555 | Washer, Lock (Replaces: 211090) | 00 |
|
$ 19.26 | ||||
| 025 | WP912618 | Screw, Stop Lug (cntr Shaft) (Replaces: 211375) | 00 |
|
$ 6.98 | ||||
| 026 | WP6-2114830 | Washer, Splined (Replaces: 211483) | 00 |
|
$ 7.05 | ||||
| 027 | 211484 | Lug Washer | 00 |
|
$ 4.83 | ||||
| 028 | 211486 | Screw, 3/8-16 X 1/2 Inch | 00 |
|
- | ||||
| 029 | NLA | Groov-pin | 00 |
|
- | ||||
| 030 | 212988 | Center Shaft | 00 |
|
- |
