01 - Cd Control Panel, Top Cover & Lid Switch


02 - Cd Control Panel, Top Cover & Lid Switch


03 - Control Panel


04 - Cabinet\water Valve\hoses\front Panel


05 - Tub\agitator


06 - Transmission


07 - Orbital Transmission


08 - Base\pump\motor


09 - Clutch\brake\belts

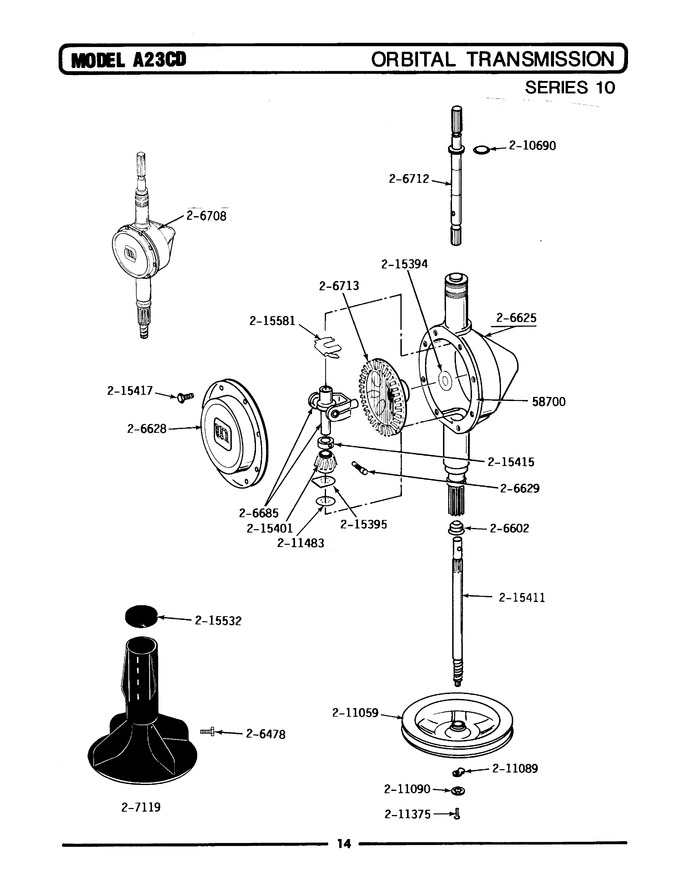

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	W10841140		Silastic,adh.sealant   (Replaces: Y058700)	10		Immediately	$ 24.92
002	206478		Screw & Washer, Agitator	10	Appelez-nous	-
003	206602		Seal, Lip (center Shaft)	10	Appelez-nous	-
004	206625		Housing, Transmission	10	Appelez-nous	-
005	206628		Cover, Transmission	10	Appelez-nous	-
006	WPY206629		Pin, Collar   (Replaces: Y206629)	10			$ 7.88
007	206685		Block, Torque And Yoke Assembl	10	Appelez-nous	-
008	206708		Transmission	10	Appelez-nous	-
009	206712		Assembly, Agitator Shaft	10	Appelez-nous	-
010	206713		Gear, Bevel	10	Appelez-nous	-
011	NLA		French Literature Package	10	Appelez-nous	-
012	210690		Seal, Rubber	10			$ 13.19
013	WP6-2301530		Pulley, Drive   (Replaces: 211059)	10			$ 178.73
014	WP211089		Lug, Stop   (Replaces: 211089)	10			$ 10.16
015	WP22003555		Washer, Lock   (Replaces: 211090)	10			$ 19.26
016	WP912618		Screw, Stop Lug (cntr Shaft)   (Replaces: 211375)	10			$ 6.98
017	WP6-2114830		Washer, Splined   (Replaces: 211483)	10			$ 7.05
018	215394		Washer, Bevel Gear	10	Appelez-nous	-
019	WP215395		Plate, Clutch   (Replaces: 215395)	10		Immediately	$ 6.79
020	WPW10221114		Pinion   (Replaces: 215401)	10			$ 58.63
021	NLA		Shaft, Center	10	Appelez-nous	-
022	215415		Collar, Lower	10	Appelez-nous	-
023	215417		Screw, Transmission Cover	10	Appelez-nous	-
024	215533		Dispenser Cup	10	Appelez-nous	-
025	WP215581		Spring, Agitator Shaft   (Replaces: 215581)	10			$ 7.47

    View Diagram in Separate Window       Print Part List
