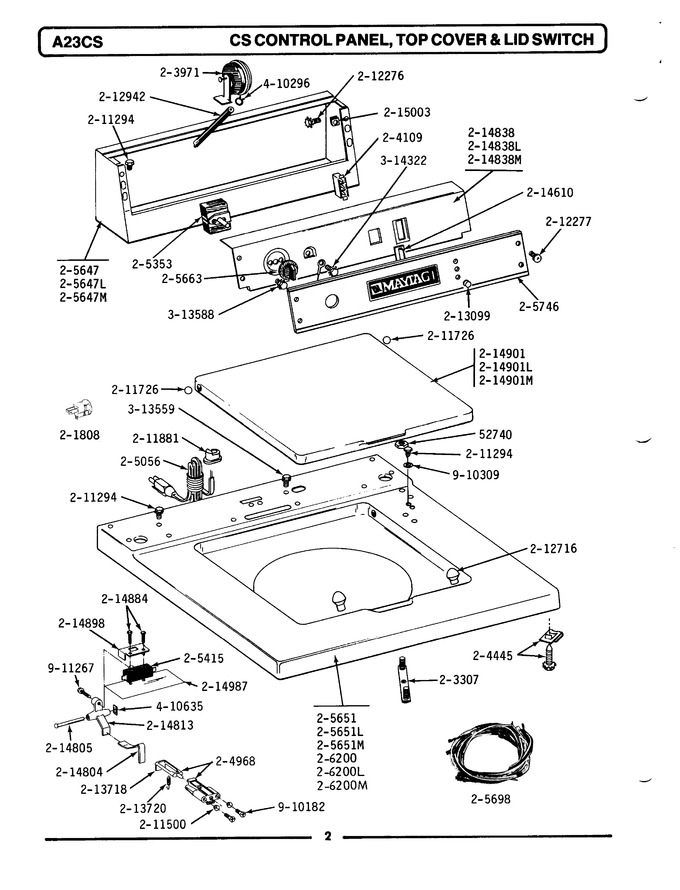

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | Y201808 | Converter | 00 |
|
- | ||||
| 003 | NLA | Mtg. Strap----na | 00 |
|
- | ||||
| 004 | 203971 | Pressure Switch | 00 |
|
- | ||||
| 005 | 204109 | 3 Bulb Signal Light | 00 |
|
- | ||||
| 006 | 204445 | Screw & Fastener Asy. | 00 |
|
- | ||||
| 007 | 204968 | Plunger & Bracket Assembly--w | 00 |
|
$ 26.05 | ||||
| 008 | 205056 | Cord, Power | 00 |
|
- | ||||
| 009 | COMM PART | Switch, Temp. (Replaces: 205353) | 00 |
|
- | ||||
| 010 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 011 | NLA | Console-white | 00 |
|
- | ||||
| 012 | NLA | Console-almond | 00 |
|
- | ||||
| 013 | COMM PART | Top Cover-white (Replaces: 205651) | 00 |
|
- | ||||
| 014 | NLA | Top Cover-almond----na | 00 |
|
- | ||||
| 015 | 205663 | Knob For Selector Switch | 00 |
|
- | ||||
| 016 | 205698 | Main Wire Harness | 00 |
|
- | ||||
| 016 | NLA | Main Wire Harness | 00 |
|
- | ||||
| 017 | NLA | Control Panel With Lens | 00 |
|
- | ||||
| 018 | NLA | Top Cover Assembly Complete | 00 |
|
- | ||||
| 018 | NLA | Top Cover Assembly Complete | 10 |
|
- | ||||
| 019 | NLA | Top Cover Assembly Complete | 00 |
|
- | ||||
| 020 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 021 | 211500 | Washer,bracke To Top Cover | 00 |
|
- | ||||
| 022 | WP211726 | Hinge, Ball (Replaces: 211726) | 00 |
|
Immediately | $ 7.18 | |||
| 023 | 211881 | Grommet, Cord | 00 |
|
- | ||||
| 024 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 025 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 026 | WP212716 | Bumper, Lid (Replaces: 212716) | 00 |
|
Immediately | $ 7.88 | |||
| 027 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 00 |
|
$ 75.73 | ||||
| 028 | 213099 | Lens For Control Panel | 00 |
|
- | ||||
| 029 | 213718 | Lid Switch Plunger | 00 |
|
$ 12.10 | ||||
| 030 | WP213720 | Spring (Replaces: 213720) | 00 |
|
$ 7.63 | ||||
| 031 | 214610 | Bumper, Lid | 00 |
|
- | ||||
| 032 | 214804 | Unbalance Lever | 00 |
|
- | ||||
| 033 | 214805 | Pin For Unbalance Lever | 00 |
|
- | ||||
| 034 | 214813 | Lever For Lid Switch | 00 |
|
- | ||||
| 035 | 214838 | Back Up Plate-white | 00 |
|
- | ||||
| 036 | NLA | Back Up Plate-almond | 00 |
|
- | ||||
| 037 | 214884 | Screw - Lid Switch | 00 |
|
- | ||||
| 038 | 214898 | Cover For Lid Switch | 00 |
|
- | ||||
| 039 | 214901 | Lid-white | 00 |
|
- | ||||
| 040 | NLA | Lid-almond | 00 |
|
- | ||||
| 041 | 214987 | Moisture Barrier For Switch | 00 |
|
- | ||||
| 042 | 215003 | Fastener | 00 |
|
- | ||||
| 043 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 044 | WP488234 | Screw (Replaces: Y313588) | 00 |
|
$ 6.07 | ||||
| 045 | Y314322 | Screw, No.8-32 X 3/8 Inch | 00 |
|
- | ||||
| 046 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 00 |
|
Immediately | $ 7.56 | |||
| 047 | 410635 | Fastener | 00 |
|
- | ||||
| 048 | W10756178 | Screw (Replaces: 910182) | 00 |
|
$ 5.39 | ||||
| 049 | 910309 | Washer | 00 |
|
- | ||||
| 050 | 911267 | Screw, Pump Cover | 00 |
|
- |
