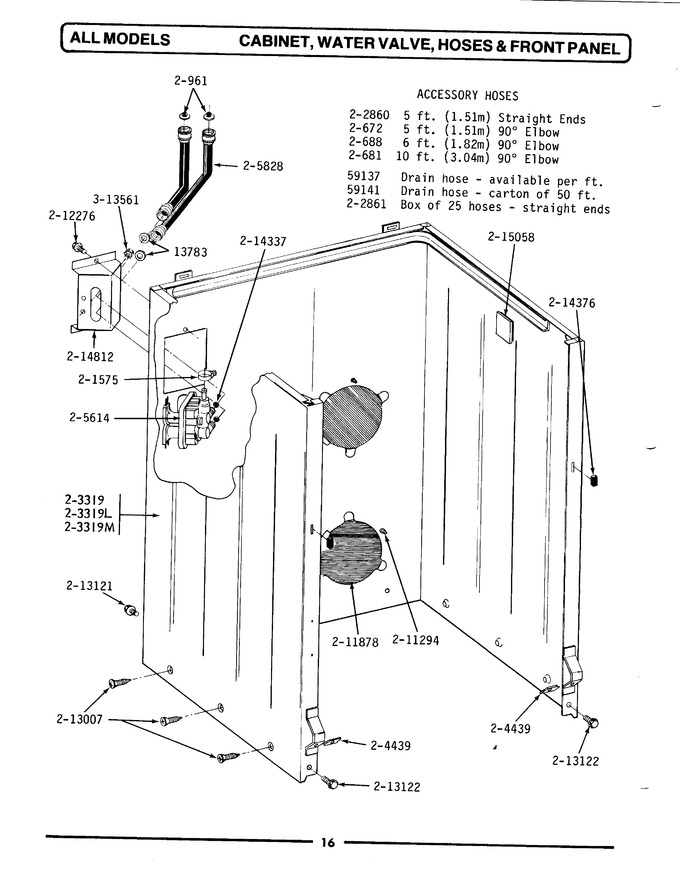

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | Y013783 | Gasket, Inlet Hose | 00 |
|
$ 18.72 | ||||
| 002 | Y059137 | Hose 31/32`` Per Foot Branch St | 00 |
|
- | ||||
| 003 | Y059141 | Ctn. 50 Ft. 31/32 Drain Hos | 00 |
|
- | ||||
| 004 | WP285655 | Hose Clamp - 1-5/8 Inch (Replaces: 200461) | 00 |
|
Immediately | $ 7.55 | |||
| 005 | WP76314 | Inlet Hose Assy. (Replaces: 200672) | 00 |
|
$ 38.79 | ||||
| 006 | 3810FF | Inlet Hose, Hot 10 Ft. (Replaces: 200681) | 00 |
|
Immediately | $ 26.11 | |||
| 007 | WP76314 | Inlet Hose, Hot 6 Ft. (Replaces: 200688) | 00 |
|
$ 38.79 | ||||
| 008 | Y200832 | Capacitor | 00 |
|
$ 66.37 | ||||
| 009 | WP285655 | Hose Clamp - 1-1/2 Inch (Replaces: 200908) | 00 |
|
Immediately | $ 7.55 | |||
| 010 | 200961 | Screen Washer, Inlet Hose | 00 |
|
- | ||||
| 011 | 76660 | Siphon Break Kit (Replaces: 201112) | 00 |
|
Immediately | $ 119.93 | |||
| 012 | WP596669 | Hose Clamp (Replaces: 201575) | 00 |
|
Immediately | $ 7.56 | |||
| 013 | WP89503 | Inlet Hose Assy. (Replaces: 202860) | 00 |
|
Immediately | $ 21.68 | |||
| 014 | WP89503 | Carton Of 25 Hose, 5` (Replaces: 202861) | 00 |
|
Immediately | $ 21.68 | |||
| 015 | 203237 | No.17 Wire With Terminal | 00 |
|
- | ||||
| 016 | NLA | Cabinet-white | 00 |
|
- | ||||
| 017 | NLA | (almond) | 00 |
|
- | ||||
| 018 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 019 | 205613 | Water Valve 120v 60hz (Replaces: 205614) | 00 |
|
Immediately | $ 103.57 | |||
| 020 | WP89503 | Hose, Inlet Assy. (Replaces: 205828) | 00 |
|
Immediately | $ 21.68 | |||
| 021 | 206103 | Capacitor Kit | 00 |
|
$ 55.71 | ||||
| 022 | WP16272 | Hose Coupling (Replaces: 211111) | 00 |
|
$ 7.04 | ||||
| 023 | 211149 | Clip, Capacitor | 00 |
|
$ 6.23 | ||||
| 024 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 025 | 211448 | Clamp | 00 |
|
- | ||||
| 026 | NLA | Plate, Access | 00 |
|
- | ||||
| 027 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 028 | WP22001650 | Fastener, Panel (Replaces: 212982) | 00 |
|
Immediately | $ 7.34 | |||
| 029 | 212998 | Front Panel-white | 00 |
|
$ 8.63 | ||||
| 030 | 212998L | Front Panel-almond | 00 |
|
- | ||||
| 031 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 032 | WPW10346892 | Screw (Replaces: 213121) | 00 |
|
Immediately | $ 6.47 | |||
| 033 | WP27001200 | Screw,cbnt.to Frnt Of Base--na (Replaces: 213122) | 00 |
|
$ 6.91 | ||||
| 034 | 213846 | Guard, Belt | 00 |
|
- | ||||
| 035 | WP96160 | Screen, Valve (Replaces: 214337) | 00 |
|
$ 10.54 | ||||
| 036 | 214376 | Spacer, Front Panel | 00 |
|
- | ||||
| 037 | 214768 | Drain Hose, 4 Foot | 00 |
|
- | ||||
| 038 | 214812 | Bracket,water Valve | 00 |
|
- | ||||
| 039 | 215057 | Drain Hose | 00 |
|
- | ||||
| 040 | 215058 | Pad, Cabinet Bumper | 00 |
|
- | ||||
| 041 | Y310842 | Screw | 00 |
|
- | ||||
| 042 | Y313561 | Screw----na | 00 |
|
$ 5.27 |
