01 - Control Panel, Top Cover & Lid Switch


02 - Cabinet, Water Valve, Hoses & Frnt Panel


03 - Tub, Agitator, Mounting Stem & Seal


04 - Transmission


05 - Base, Pump, Motor & Components


06 - Clutch, Brake & Belts


07 - Ct Control Center


08 - Ct Control Center Components

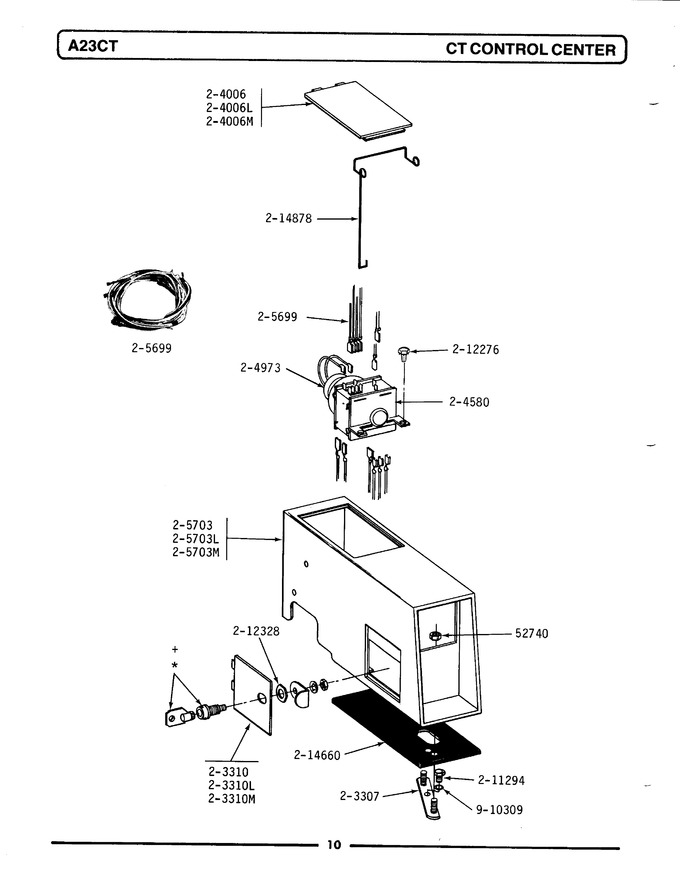

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	WP62739		Nut   (Replaces: Y052740)	00			$ 6.85
002	NLA		Mtg. Strap----na	00	Appelez-nous	-
003	NLA		Access Door (white)	00	Appelez-nous	-
004	NLA		Access Door (white)	00	Appelez-nous	-
005	NLA		Timer With Knob And Pin	00	Appelez-nous	-
006	204973		Timer Motor	00	Appelez-nous	-
007	NLA		Main Wire Harness	10	Appelez-nous	-
008	NLA		Outer Case-white	10	Appelez-nous	-
009	WP90767		Screw   (Replaces: 211294)	10		Immediately	$ 7.04
010	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
011	W11395752		Nut, Hex   (Replaces: 212328)	00			$ 11.74
012	214660		Gasket, Meter Case	00	Appelez-nous	-
013	214878		Latch For Access Door	00	Appelez-nous	-
014	910309		Washer	00	Appelez-nous	-
