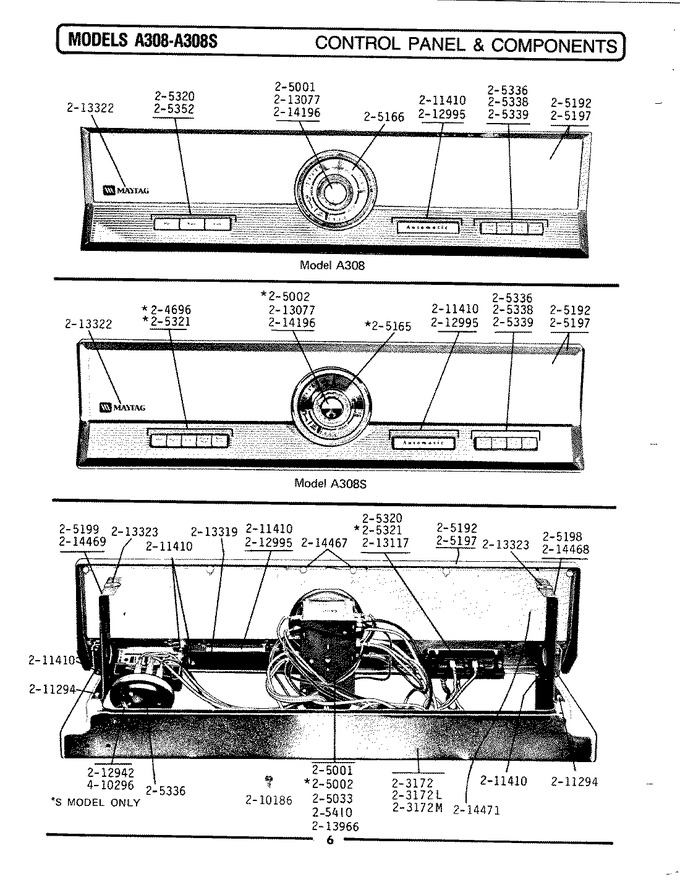

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 203172 | Top Cover-white | 00 |
|
- | ||||
| 4 | 205001 | Timer | 00 |
|
$ 227.49 | ||||
| 5 | 205033 | Timer Motor 120-60 | 00 |
|
- | ||||
| 6 | 205166 | Timer Dial, Sun-glow | 00 |
|
- | ||||
| 7 | 205192 | Control Panel, Sun-glow | 00 |
|
- | ||||
| 8 | 205197 | Control Panel Kit, Sun-glow | 00 |
|
- | ||||
| 9 | 205198 | Bracket Kit - Left Hand | 00 |
|
- | ||||
| 10 | 205199 | Bracket Kit - Right Hand | 00 |
|
- | ||||
| 11 | 205320 | Temperature Control Switch | 00 |
|
- | ||||
| 12 | 205336 | Water Level Switch | 00 |
|
- | ||||
| 13 | 205338 | Button Kit For 2-5336-1 | 00 |
|
- | ||||
| 14 | 205339 | Button Kit For 2-5336 | 00 |
|
- | ||||
| 15 | 205352 | Button Kit For 2-5320 | 00 |
|
- | ||||
| 17 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 00 |
|
$ 9.79 | ||||
| 18 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 19 | 211410 | Screw, Hex Hd No.8 X 3/8 Inch | 00 |
|
$ 6.64 | ||||
| 20 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 00 |
|
$ 75.73 | ||||
| 21 | 212995 | Plug For Control Panel | 00 |
|
- | ||||
| 22 | 213077 | Cap For Timer Knob | 00 |
|
- | ||||
| 24 | 213319 | Fiber Shield | 00 |
|
- | ||||
| 25 | 213322 | Maytag Decal | 00 |
|
- | ||||
| 27 | WP3400014 | Screw-timer To Control Pane (Replaces: 213966) | 00 |
|
$ 6.98 | ||||
| 28 | 214196 | Timer Knob-clear Acrylic | 00 |
|
- | ||||
| 30 | 00214468 | Bracket-left Hand (Replaces: 214468) | 00 |
|
$ 67.91 | ||||
| 31 | 214469 | Bracket-right Hand | 00 |
|
- | ||||
| 32 | 214471 | Back-up Plate | 00 |
|
- | ||||
| 33 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 00 |
|
Immediately | $ 7.56 | |||
| 34 | 211605 | Retainer, Timer Knob | 00 |
|
- | ||||
| NI | 205410 | Timer Motor 120-60 | 00 |
|
- | ||||
| NI | 214467 | Nut | 00 |
|
- | ||||
| NI | 213323 | Fastener, Exhaust Duct Kit | 00 |
|
- | ||||
| NI | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) | 00 |
|
Immediately | $ 7.16 |
