Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 203172 Top Cover-white 00 Appelez-nous -
4 203319 Cabinet-white 00 Appelez-nous -
7 204439 Screw & Fstner Assy(frt.panel) 00 Special Order $ 8.80

8 204445 Screw & Fastener Asy. 00 Appelez-nous -
10 205001 Timer 00 Special Order $ 227.49

13 205166 Timer Dial, Sun-glow 00 Appelez-nous -
14 205192 Control Panel, Sun-glow 00 Appelez-nous -
15 205197 Control Panel Kit, Sun-glow 00 Appelez-nous -
16 205320 Temperature Control Switch 00 Appelez-nous -
18 205336 Water Level Switch 00 Appelez-nous -
19 205338 Button Kit For 2-5336-1 00 Appelez-nous -
20 205339 Button Kit For 2-5336 00 Appelez-nous -
21 205352 Button Kit For 2-5320 00 Appelez-nous -
22 WP210385 Nut, Lock   (Replaces: 210385) 00 Special Order $ 6.26

23 WP210684 Foot, Rubber   (Replaces: 210684) 00 In-Stock Immediately $ 14.09

25 211410 Screw, Hex Hd No.8 X 3/8 Inch 00 Special Order $ 6.64

26 WP211726 Hinge, Ball   (Replaces: 211726) 00 In-Stock Immediately $ 7.18

27 212073 Lid-white 00 Appelez-nous -
30 WP212716 Bumper, Lid   (Replaces: 212716) 00 In-Stock Immediately $ 7.88

31 WP22001650 Fastener, Panel   (Replaces: 212982) 00 In-Stock Immediately $ 7.34

32 212995 Plug For Control Panel 00 Appelez-nous -
33 212998 Front Panel-white 00 Special Order $ 8.63

36 213007 Screw, Cabinet 00 Special Order $ 10.99

37 213077 Cap For Timer Knob 00 Appelez-nous -
38 WP67006908 Screw-temp. Switch To Panel   (Replaces: 213117) 00 In-Stock Immediately $ 7.16

39 213322 Maytag Decal 00 Appelez-nous -
41 214196 Timer Knob-clear Acrylic 00 Appelez-nous -
42 214697 Easy-grip Knob 00 Appelez-nous -
43 22003428 Leg, Adjustable (w/nut)   (Replaces: Y302699) 00 In-Stock Immediately $ 14.41

NI 213846 Guard, Belt 00 Appelez-nous -
NI WP90767 Screw   (Replaces: 211294) 00 In-Stock Immediately $ 7.04


    View Diagram in Separate Window     Print Icon   Print Part List

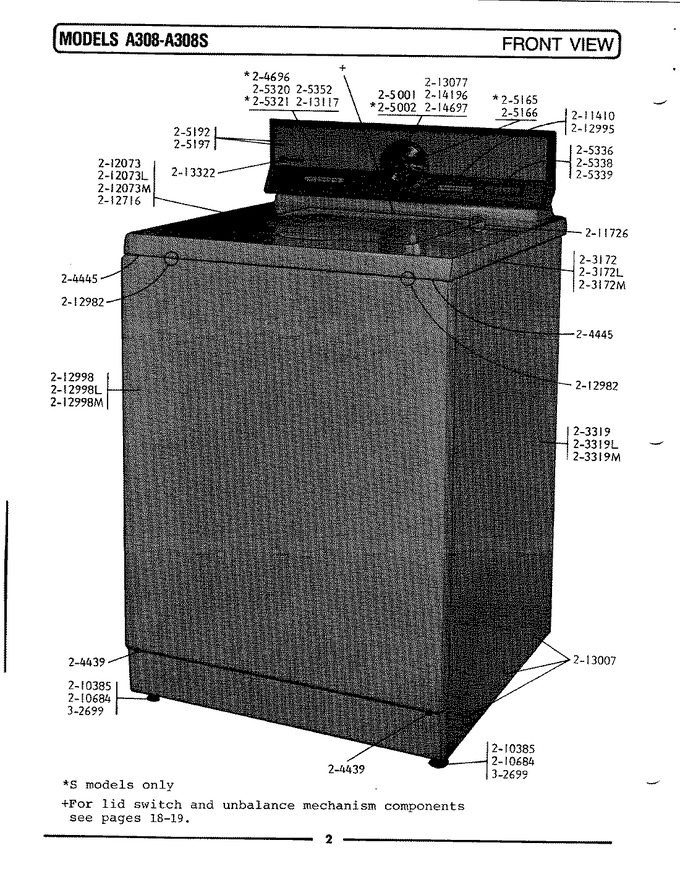

Diagram for A308
