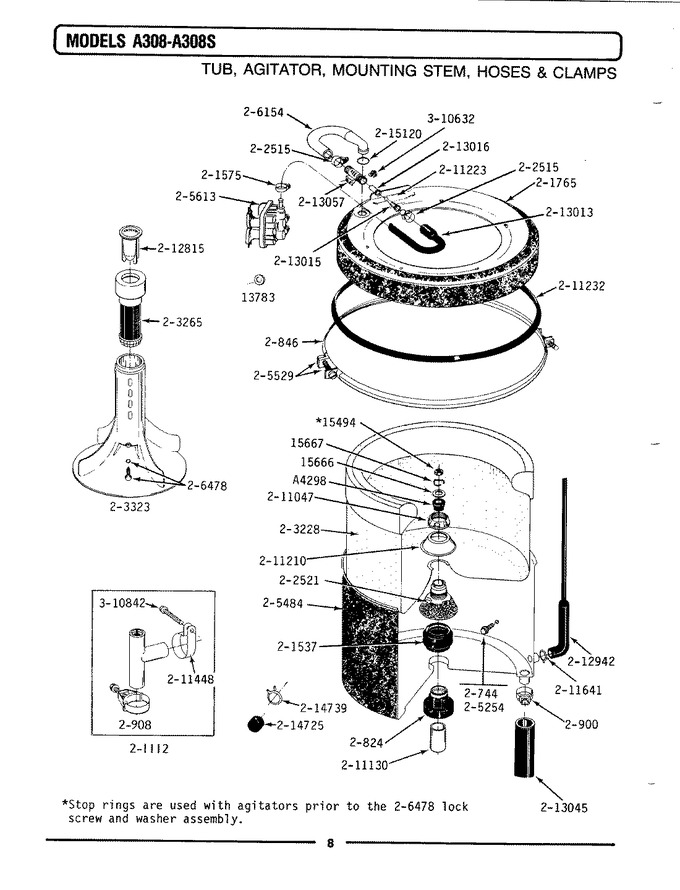

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP6-0A57420 | Seal, Agitator Drive Shaft (Replaces: Y0A4298) | 00 |
|
Immediately | $ 33.64 | |||
| 2 | Y013783 | Gasket, Inlet Hose | 00 |
|
$ 18.72 | ||||
| 5 | Y015494 | Stop Ring-agitator Shaft | 00 |
|
- | ||||
| 6 | WPY015666 | Washer,retaining(center Seal)- (Replaces: Y015666) | 00 |
|
$ 6.96 | ||||
| 7 | Y015667 | Retaining Ring | 00 |
|
$ 8.70 | ||||
| 16 | W10175939 | Bolt & Gasket Assy.(short) (Replaces: 200744) | 00 |
|
$ 7.79 | ||||
| 18 | 6-2040130 | Bearing, Tub (Replaces: 200824) | 00 |
|
Immediately | $ 73.68 | |||
| 19 | 200846 | Clamp - Tub Cover | 00 |
|
$ 62.11 | ||||
| 20 | WP616099 | Clamp, Spray Arm Hose (Replaces: 200900) | 00 |
|
Immediately | $ 7.03 | |||
| 21 | WP285655 | Hose Clamp - 1-1/2 Inch (Replaces: 200908) | 00 |
|
Immediately | $ 7.55 | |||
| 22 | 76660 | Siphon Break Kit (Replaces: 201112) | 00 |
|
Immediately | $ 119.93 | |||
| 24 | 201537 | Seal And Spring | 00 |
|
- | ||||
| 25 | WP596669 | Hose Clamp (Replaces: 201575) | 00 |
|
Immediately | $ 7.56 | |||
| 26 | 201765 | Tub Cover | 00 |
|
- | ||||
| 27 | WP596669 | Hose Clamp - 1-1/16 Inch (Replaces: 202515) | 00 |
|
Immediately | $ 7.56 | |||
| 28 | 202521 | Mounting Stem | 00 |
|
- | ||||
| 31 | 203228 | Inner Tub | 00 |
|
- | ||||
| 32 | 203265 | Lint Filter-dispenser | 00 |
|
$ 48.85 | ||||
| 33 | 203323 | Agitator - Turquoise | 00 |
|
$ 5.71 | ||||
| 36 | W10175938 | Bolt & Gasket Assembly (long) (Replaces: 205254) | 00 |
|
Immediately | $ 7.00 | |||
| 37 | 205484 | Outer Tub | 00 |
|
- | ||||
| 38 | 205529 | Nut & Bolt Kit For Tub Clam | 00 |
|
$ 6.58 | ||||
| 39 | 205613 | Water Valve | 00 |
|
Immediately | $ 103.57 | |||
| 41 | 206154 | Injector Tube With Seal | 00 |
|
$ 50.55 | ||||
| 42 | 206478 | Screw & Washer For Agitator | 00 |
|
- | ||||
| 43 | 211047 | Nut, Clamping (inner Tub) | 00 |
|
- | ||||
| 45 | 211130 | Liner, Tub Bearing | 00 |
|
$ 724.10 | ||||
| 46 | 211210 | Washer,clamping Nut(stainless) | 00 |
|
$ 5.84 | ||||
| 47 | 211223 | Unbalance Bumper | 00 |
|
- | ||||
| 48 | WP211232 | Seal (Replaces: 211232) | 00 |
|
$ 62.96 | ||||
| 49 | 211448 | Clamp | 00 |
|
- | ||||
| 51 | WP285655 | Clamp, 1-1/16`` (Replaces: 211641) | 00 |
|
Immediately | $ 7.55 | |||
| 53 | 212815 | Dispenser Cup | 00 |
|
- | ||||
| 54 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 00 |
|
$ 75.73 | ||||
| 55 | WP213013 | Hose, Injector (Replaces: 213013) | 00 |
|
Immediately | $ 44.40 | |||
| 56 | WP213015 | Injector Nozzle (Replaces: 213015) | 00 |
|
Immediately | $ 7.29 | |||
| 57 | WP216201 | Valve For Injector Sub (Replaces: 213016) | 00 |
|
Immediately | $ 18.88 | |||
| 58 | WP213045 | Drain Hose-tub To Pump (Replaces: 213045) | 00 |
|
Immediately | $ 43.57 | |||
| 59 | WP22213057 | Sleeve For Injector (Replaces: 213057) | 00 |
|
$ 8.06 | ||||
| 60 | 214725 | Cap For Spout-outer Tub | 00 |
|
$ 5.65 | ||||
| 61 | WP596669 | Spring Hose Clamp (Replaces: 214739) | 00 |
|
Immediately | $ 7.56 | |||
| 62 | 215120 | Seal For Injector Tube | 00 |
|
$ 5.83 | ||||
| 63 | Y310632 | Screw | 00 |
|
- | ||||
| 64 | Y310842 | Screw | 00 |
|
- | ||||
| NI | 3810FF | Inlet Hose, Hot 10 Ft. (Replaces: 200681) | 00 |
|
Immediately | $ 26.11 | |||
| NI | WP76314 | Inlet Hose, Cold 5 Ft. (Replaces: 200675) | 00 |
|
$ 38.79 | ||||
| NI | WP76314 | Inlet Hose Assy. (Replaces: 200672) | 00 |
|
$ 38.79 | ||||
| NI | Y059141 | Ctn. 50 Ft. 31/32 Drain Hos | 00 |
|
- | ||||
| NI | Y059137 | Hose 31/32`` Per Foot Branch St | 00 |
|
- | ||||
| NI | 6-2040130 | Tub Bearing Repair Kit (Replaces: 204013) | 00 |
|
Immediately | $ 73.68 | |||
| NI | Y054867 | Washer, Lock | 00 |
|
- | ||||
| NI | 211704 | Drain Hose | 00 |
|
$ 78.91 | ||||
| NI | Y015149 | Brass Washer-agitator Seal | 00 |
|
- | ||||
| NI | WP6-0A57420 | Coil Spring-center Seal (Replaces: Y014792) | 00 |
|
Immediately | $ 33.64 | |||
| NI | 22001423 | Set Screw, Mtg. Stem (Replaces: 211618) | 00 |
|
$ 45.54 | ||||
| NI | 204012 | Mounting Stem Repair Kit | 00 |
|
- | ||||
| NI | WP89503 | Carton Of 25 Hose, 5` (Replaces: 202861) | 00 |
|
Immediately | $ 21.68 | |||
| NI | WP89503 | Inlet Hose Assy. (Replaces: 202860) | 00 |
|
Immediately | $ 21.68 | |||
| NI | 201486 | Inlet Hose, Hot 8 Ft. | 00 |
|
- | ||||
| NI | WP89503 | Hose, Inlet Assy. (Replaces: 205828) | 00 |
|
Immediately | $ 21.68 | |||
| NI | 200757 | Inlet Hose, Hot 4 Ft. | 00 |
|
- | ||||
| NI | WP76314 | Inlet Hose, Hot 6 Ft. (Replaces: 200688) | 00 |
|
$ 38.79 | ||||
| NI | WP76314 | Inlet Hose, Cold 10 Ft. (Replaces: 200682) | 00 |
|
$ 38.79 | ||||
| NI | 211100 | Washer, Cushion | 00 |
|
- |
