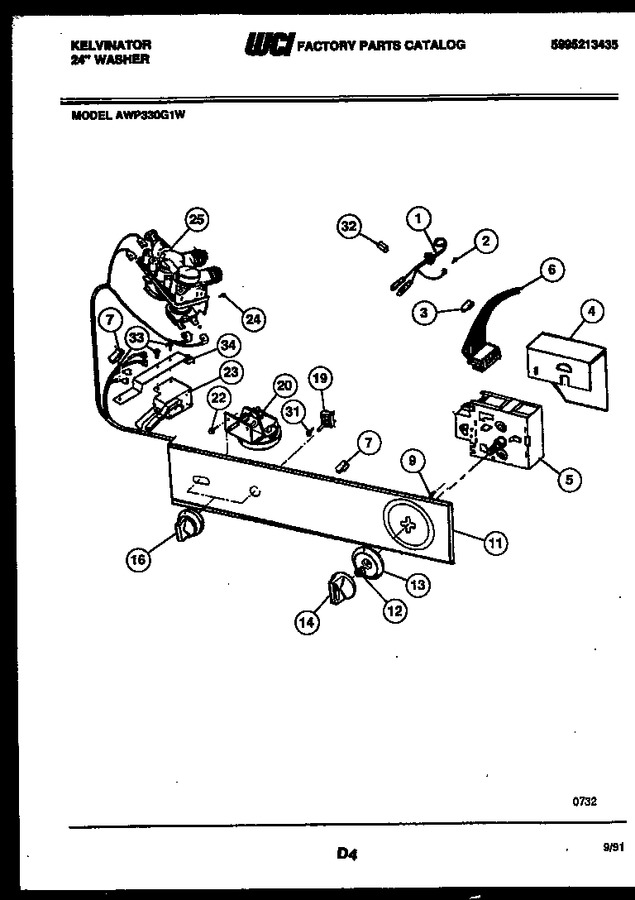

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3205929		Service Cord		Appelez-nous	-
2	3161275		Screw - Ground		Appelez-nous	-
3	08008454		Clip-harness		Appelez-nous	-
4	3205931		Shield-timer		Appelez-nous	-
5	5303015649		Timer		Appelez-nous	-
6	3205932		Harness		Appelez-nous	-
7	08008458		Clip		Appelez-nous	-
9	3161188		Screw (2)		Appelez-nous	-
11	F140555-000		Trimplate Assembly		Appelez-nous	-
12	5308015493		Spacer - Timer				$ 14.36
13	5308015529		Pointer-timer		Appelez-nous	-
14	5303207073		Knob - Timer				$ 30.35
16	5308008462		Knob-rotary (2)				$ 35.02
19	5308014346		Switch-water Temp		Appelez-nous	-
20	5303209227		Switch-pressure		Appelez-nous	-
22	5303206864		Sems Screw (2)		Appelez-nous	-
23	5303209725		Lid Lock & Switch Assembly		Appelez-nous	-
24	5303010202		Sems Screw (2)				$ 5.15
25	5303912509		Water Valve		Appelez-nous	-
31	3161259		Screw (2)				$ 6.83
32	08004657		Clip-service Cord To Support		Appelez-nous	-
33	3161240		Screw-lid Lock (2)		Appelez-nous	-
34	3018393		Bracket-lid Lock & Sw Assembly		Appelez-nous	-
*22224	08027572		Cord Hanger		Appelez-nous	-
*22225	5303269886		Shield-pressure Switch		Appelez-nous	-
*22225	08011251		Screw (4) Shield To Top		Appelez-nous	-
*22225	3205934		Shield-lid Lock		Appelez-nous	-
*22225	3205935		U-clip (2) Shield To Side		Appelez-nous	-
*22225	5303015671		Screw-cord Hanger To Back Panel		Appelez-nous	-
19A	3018800		Shield-water Temp (non-illustrated)		Appelez-nous	-
25A	08008466		Coil & Bracket Assy (2)-(part Of Ref No 25-but May Be Ordered Separately) (non-illustrated)		Appelez-nous	-
25B	5376138011		Screen (2)-(part Of Ref No 25-but May Be Ordered Separately) (non-illustrated)		Appelez-nous	-
33A	08004660		Screw-bracket/side Panel (2)		Appelez-nous	-
