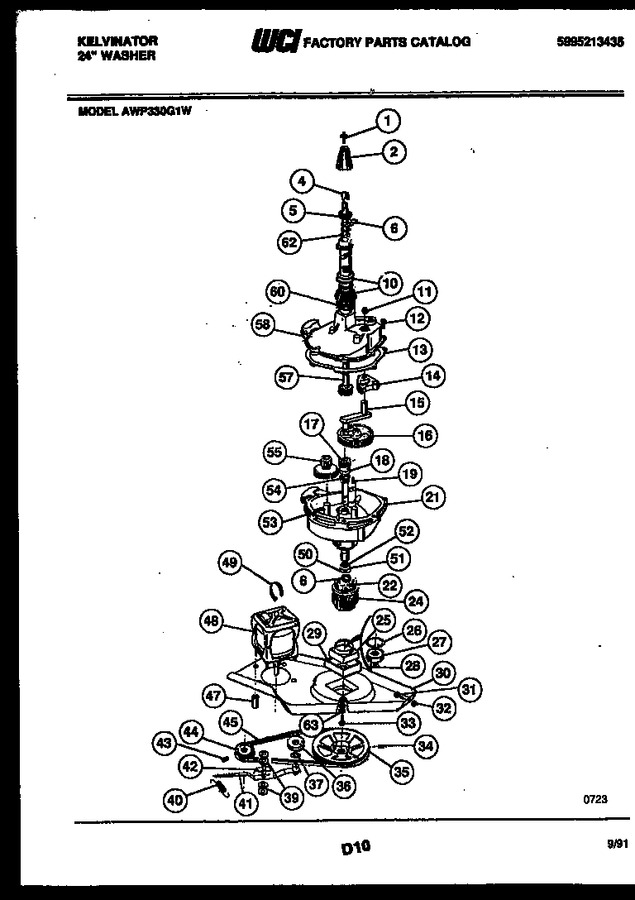

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303161221 | Stud Bolt |
|
$ 16.38 | |||||
| 2 | 5303280324 | Drive Lug |
|
$ 39.38 | |||||
| 4 | 5303280325 | Shim-as Required |
|
- | |||||
| 5 | 5303161307 | Seal-upper, Lip |
|
Immediately | $ 21.27 | ||||
| 6 | 5303161223 | Snap Ring (2) |
|
$ 10.24 | |||||
| 10 | 5308950197 | Seal Kit |
|
$ 73.03 | |||||
| 11 | 5303161224 | Pipe Plug |
|
- | |||||
| 12 | 08002804 | Screw (6) |
|
- | |||||
| 13 | 5308015778 | Gasket |
|
$ 33.18 | |||||
| 14 | 5308011268 | Gear-sector |
|
- | |||||
| 15 | 5303161169 | Rod-connecting |
|
- | |||||
| 16 | 5308015496 | Gear-crank |
|
- | |||||
| 17 | 5308014905 | Shaft-lower |
|
- | |||||
| 18 | 5303161226 | Thrust Washer |
|
- | |||||
| 19 | 5303161227 | Dowel Pin (2) |
|
- | |||||
| 21 | 5303912535 | Housing Assembly-lower |
|
- | |||||
| 22 | 5308950058 | Bearing Housing Package-(consists Of Ref No 22-25-26-27- |
|
- | |||||
| 24 | 5303161182 | Sleeve-clutch Coil |
|
- | |||||
| 25 | 5308950058 | Bearing Housing Package-(consists Of Ref No 22-25-26-27- |
|
- | |||||
| 26 | 5308950058 | Bearing Housing Package-(consists Of Ref No 22-25-26-27- |
|
- | |||||
| 27 | 5308950058 | Bearing Housing Package-(consists Of Ref No 22-25-26-27- |
|
- | |||||
| 28 | 5308015536 | Snap Ring |
|
- | |||||
| 29 | 5377009100 | Cushion |
|
- | |||||
| 30 | 08002472 | Plate-support |
|
- | |||||
| 31 | 3161211 | Screw (3) |
|
- | |||||
| 32 | 3161212 | Locknut (3) |
|
- | |||||
| 33 | 5308027582 | Screw (2) |
|
- | |||||
| 34 | 5303270023 | Set Screw |
|
$ 29.78 | |||||
| 35 | 5303937080 | Pulley-transmission |
|
- | |||||
| 36 | 5304527822 | V-pulley (Replaces: 5303212114) |
|
$ 23.13 | |||||
| 37 | 5303161306 | Spring Washer |
|
$ 12.49 | |||||
| 39 | 08027535 | Bushing (2) |
|
- | |||||
| 40 | 5308004079 | Spring |
|
- | |||||
| 41 | 5303937001 | Idler Arm & Shaft Assembly |
|
- | |||||
| 42 | 5303161303 | Spacer |
|
- | |||||
| 43 | 5303206869 | Set Screw |
|
- | |||||
| 44 | 5308006686 | Pulley-motor |
|
- | |||||
| 45 | 5303280326 | V-belt |
|
- | |||||
| 47 | 5303161303 | Spacer (3) |
|
- | |||||
| 48 | 5308015502 | Motor |
|
- | |||||
| 49 | 5304464772 | Tie-harness (Replaces: 5303161300) |
|
$ 10.63 | |||||
| 50 | 5308002475 | Spacer Washer |
|
- | |||||
| 51 | 5303161226 | Thrust Washer |
|
- | |||||
| 52 | 5303161173 | Seal-lower Lip |
|
$ 9.36 | |||||
| 53 | 5303208460 | Transmission Oil (1 Qt) |
|
- | |||||
| 54 | 5303161174 | Lgs Spring-small |
|
$ 22.10 | |||||
| 55 | 5303161175 | Gear-idler |
|
- | |||||
| 57 | 5308014910 | Shaft Assembly-agitator |
|
- | |||||
| 58 | 5303937039 | Housing Assembly-upper |
|
- | |||||
| 60 | 5303272073 | Slinger |
|
$ 29.82 | |||||
| 62 | 5303161232 | Thrust Washer |
|
- | |||||
| 63 | 5303207426 | Rubber Spacer |
|
$ 9.21 | |||||
| *22243 | 5303208459 | Complete Transmission |
|
- | |||||
| 33A | 5303207426 | Spacer-rubber (2) |
|
$ 9.21 | |||||
| 48A | 5308014888 | Switch-motor |
|
- |
