Diagram for 04 - Pump, Water Valve, Water Inlet
04 - Pump, Water Valve, Water Inlet

Diagram for 05 - Tub Detail
05 - Tub Detail

Diagram for 06 - Transmission Parts
06 - Transmission Parts

Diagram for 07 - Portable Washer Components
07 - Portable Washer Components


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308011301 Cover-pump Appelez-nous -
2 5379428000 Seal Kit-(consists Of Seal Assembly & Gasket) Appelez-nous -
3 5308002396 Gasket Appelez-nous -
4 5379428000 Impeller Kit-(consists Of Seal Assembly-gasket-impeller Appelez-nous -
5 5303161217 Screw-impeller Appelez-nous -
6 5303161489 Housing-pump Appelez-nous -
7 5303161184 Screw-housing/cover (4) Appelez-nous -
8 5308002390 Screw-pump Mounting (4) Appelez-nous -
10 3004826 Clamp-hose (4) Appelez-nous -
11 5308008997 Hose Appelez-nous -
13 5303206795 Button Trap Appelez-nous -
14 5308002367 Clamp-hose Appelez-nous -
15 5303161286 Grommet Appelez-nous -
16 5303280321 Hose-pressure Appelez-nous -
17 3161274 Screw (2) Appelez-nous -
18 3161285 Shim Appelez-nous -
20 08008454 Speed-clip (2) Appelez-nous -
33 5303161283 Speednut Appelez-nous -
*22229 5303912510 Complete Pump Assembly Special Order $ 150.83

15A 5308006576 Adhesive-10z (non-illustrated) Special Order $ 96.82


    View Diagram in Separate Window     Print Icon   Print Part List

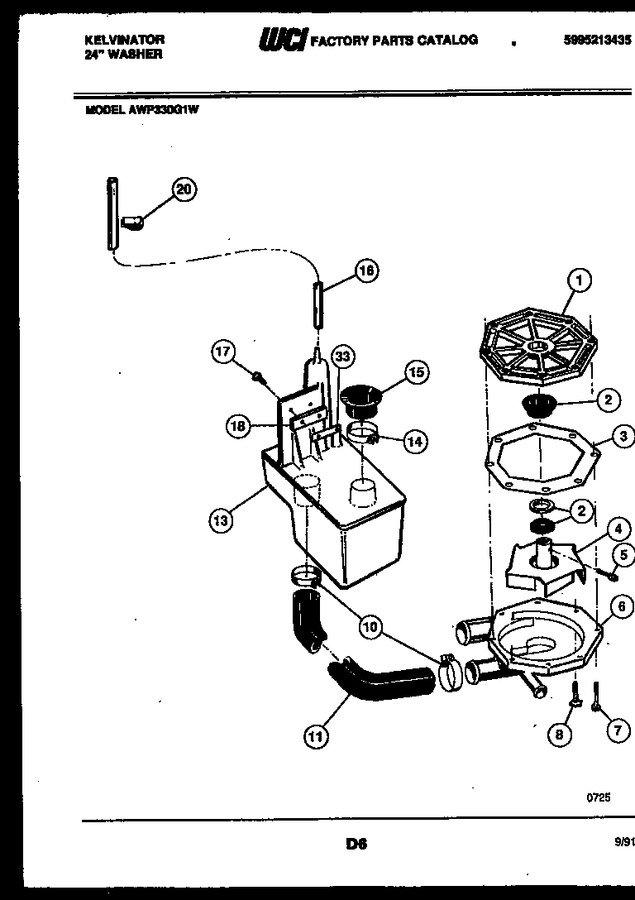

Diagram for AWP330G1W
