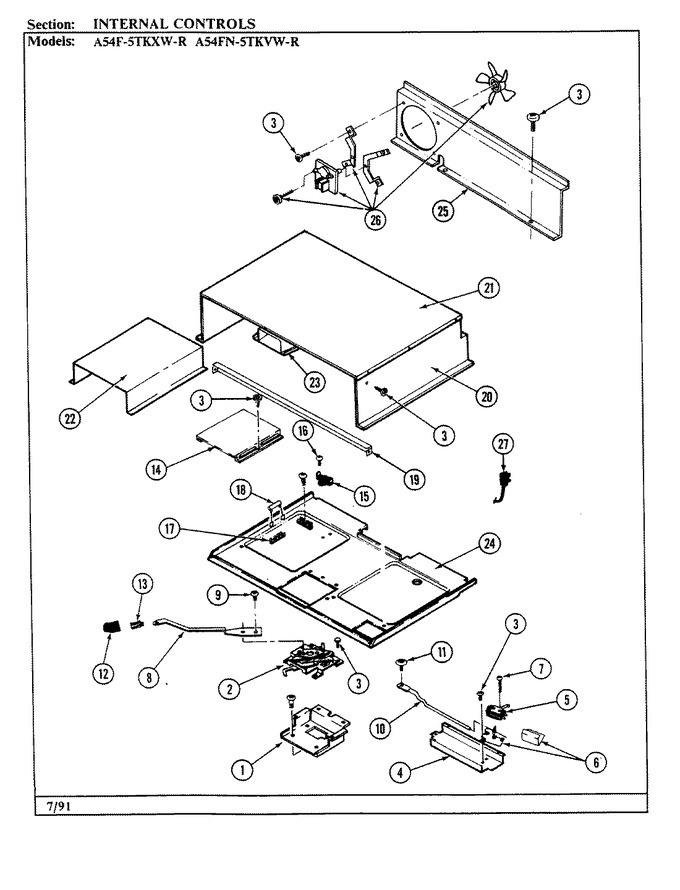

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel
03 - Control System
04 - Door
05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4009W082-80 | Lining Assy Inner Side | 1 |
|
- | ||||
| 1 | 7103P041-60 | Nut, Snap (round-blk) | 1 |
|
- | ||||
| 1 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 1 |
|
$ 4.29 | ||||
| 2 | 3604F155-45 | Shield Floor | 1 |
|
- | ||||
| 3 | 4002F122-45 | Back Broiler Section | 1 |
|
- | ||||
| 3 | 4002F155-80 | Back, Main | 1 |
|
- | ||||
| 4 | 3801F024-51 | Bracket | 1 |
|
- | ||||
| 5 | 7106P031-60 | Hinge, Door | 1 |
|
- | ||||
| 6 | 7408P002-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 7 | 4012F018-80 | Front,burner Box Bottom | 1 |
|
- | ||||
| 8 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 9 | 4005F333-51 | Cover Back | 1 |
|
- | ||||
| 10 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 11 | 4005F354-70 | Strip, Bottom (blk) | 1 |
|
- | ||||
| 11 | 7756P050-60 | Extrusion, Bottom | 1 |
|
- | ||||
| 12 | 7706P282-60 | Extrusion Side Left | 1 |
|
- | ||||
| 12 | 7706P283-60 | Extrusion Side Right | 1 |
|
- | ||||
| 13 | 3604F180-45 | Shield Side | 1 |
|
- | ||||
| 13 | 3604F166-45 | Shield, Heat | 1 |
|
- | ||||
| 14 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 15 | 3604F149-80 | Shield, Terminal | 1 |
|
- |
