SELECT A DIAGRAM

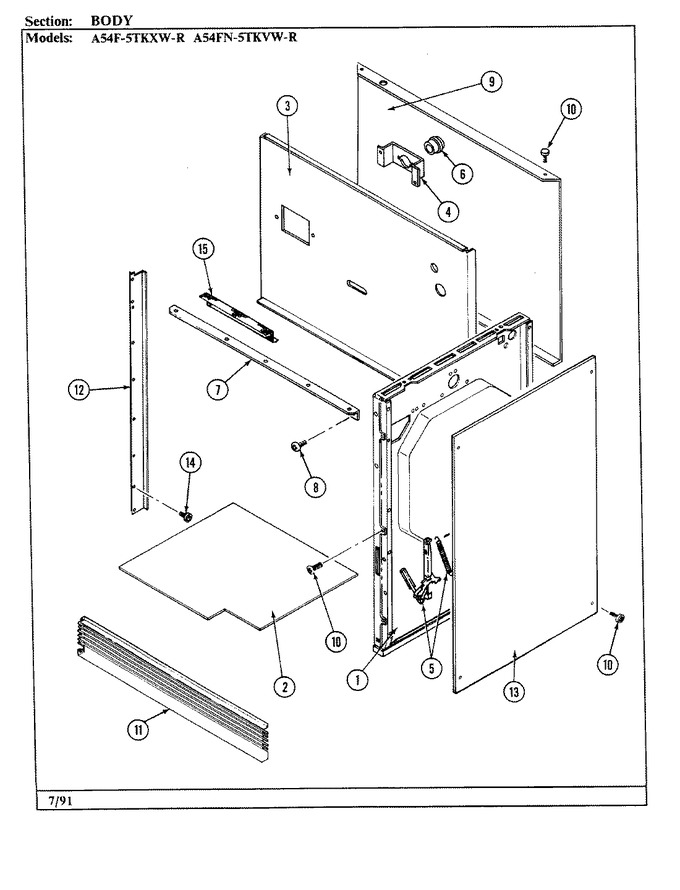

01 - Body
02 - Control Panel
03 - Control System
04 - Door
05 - Internal Controls
06 - Oven
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7912P056-60 | Glass Control Panel | 1 |
|
- | ||||
| 2 | 3605F173-80 | Plate, Mtg Switch | 1 |
|
- | ||||
| 3 | WP4159193 | Screw (Replaces: 7118P004-60) | 1 |
|
$ 4.29 | ||||
| 4 | 7003P034-60 | Shield, Clock Insulation | 1 |
|
- | ||||
| 4 | 7601P176-60 | Clock, Electronic | 1 |
|
- | ||||
| 4 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 5 | 7403P019-60 | Switch, Light | 1 |
|
- | ||||
| 6 | 7214P001-60 | Sleeve, Switch | 1 |
|
- | ||||
| 7 | 7726P023-60 | Trim, End Cap | 1 |
|
- | ||||
| 8 | 7711P172-60 | Knob, Clock (blk) | 1 |
|
$ 23.55 | ||||
| 9 | 7711P008-60 | Knob, Light Switch | 1 |
|
- | ||||
| 10 | 7711P452-60 | Button, Clock Set | 1 |
|
- | ||||
| 11 | 5170P094-60 | Wire Harness | 1 |
|
- | ||||
| 12 | 7756P043-60 | Trim, Control (btm) | 1 |
|
- | ||||
| 13 | 7756P051-60 | Extrusion Top | 1 |
|
- | ||||
| 14 | 3807F397-80 | Support Swtich Mtg | 1 |
|
- | ||||
| 14 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 |
