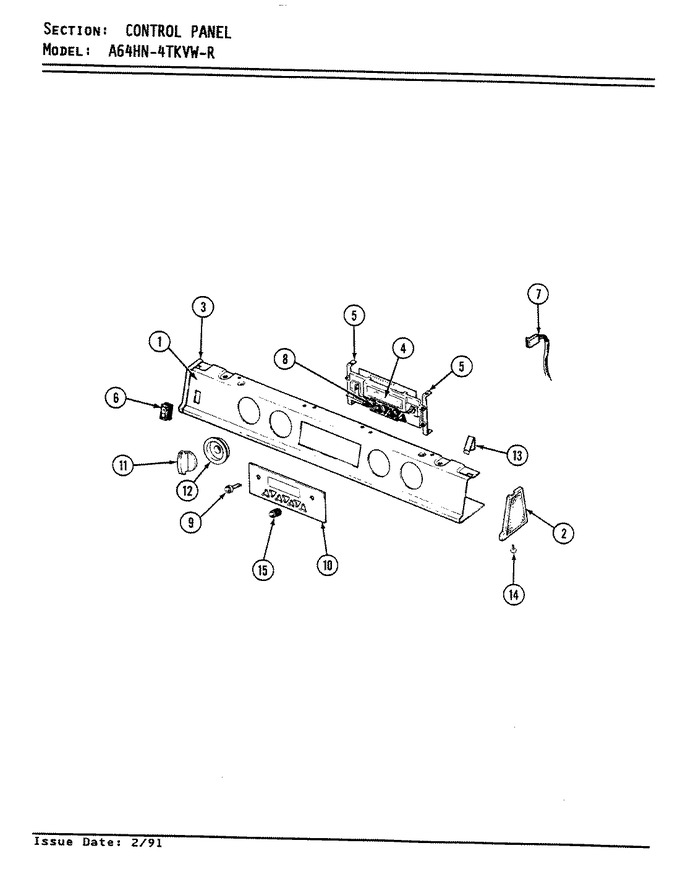

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7712P098-60		Trim, Manifold Panel	1	Appelez-nous	-
1	7719P008-60		Plate, Name	1	Appelez-nous	-
2	7713P005-60		Trim, Manifold Panel End L	1	Appelez-nous	-
3	7713P006-60		Trim, End Cap (lt)	1	Appelez-nous	-
4	7601P158-60CP		Clock   (Replaces: 7601P133-60)	1	Appelez-nous	-
4	7601P158-60CP		Clock   (Replaces: 7601P158-60)	16	Appelez-nous	-
4	7601P179-60		Clock, Electronic	23	Appelez-nous	-
5	3801F199-45		Bracket, Clock Mtg	1	Appelez-nous	-
6	7403P200-60		Switch, Rocker (wht)	1	Appelez-nous	-
7	7417P002-60		Connector, Pin	1	Appelez-nous	-
7	5170P089-60		Harness, Oven Sensor	1	Appelez-nous	-
8	7711P444-60		Button, Control Set	23	Appelez-nous	-
8	7711P429-60		Button, Control Sel (wht)	1	Appelez-nous	-
9	7711P447-60		Knob, Button Clock Set	23			$ 7.85
9	7711P434-60		Button, Clock Set	1	Appelez-nous	-
10	7720P130-60		Bezel, Clock	1	Appelez-nous	-
11	7731P031-60		Knob, Thermostat	1	Appelez-nous	-
12	7740P014-60		Bezel Knob	1	Appelez-nous	-
13	WP25-7220		Clip, Top Retainer   (Replaces: 7112P042-60)	1			$ 10.77
14	WP4159193		Screw   (Replaces: 7118P004-60)	1			$ 4.29
15	WP7711P492-60		Knob, Clock (wht)   (Replaces: 7711P432-60)	1			$ 12.13
