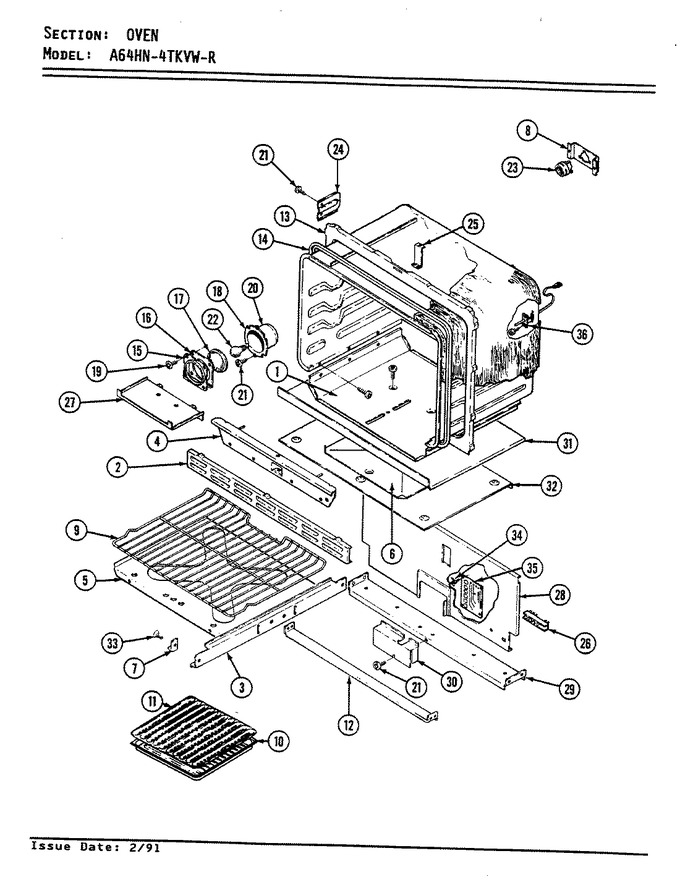

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4001F060-45		Housing, Bake Burner	1	Appelez-nous	-
2	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
2	2614F008-80		Panel, Lower Front	1	Appelez-nous	-
3	3406F027-51		Runner, Outer	1	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
4	3601W125-15		Baffle, Ovn Front	1	Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
5	W10124403		Bottom, Oven	1	Appelez-nous	-
5	2205F020-21		Bottom, Oven	28	Appelez-nous	-
5	2205F020-15		Bottom, Oven	25	Appelez-nous	-
6	3601F116-45		Baffle	1	Appelez-nous	-
7	8016P005-60		Glide, Front	1	Appelez-nous	-
8	3801F024-51		Bracket	1	Appelez-nous	-
9	7801P031-60		Rack, Oven	1	Appelez-nous	-
10	4396923		Pan, Broil   (Replaces: 3401F004-23)	1		Immediately	$ 52.04
10	Y3401F02019		Pan, Broil	40	Appelez-nous	-
11	Y3413F01619		Insert, Broil Pan	40	Appelez-nous	-
11	3413F002-23		Insert, Broil Pan	1	Appelez-nous	-
12	3802F076-51		Brace, Inner Side	1	Appelez-nous	-
13	W10124350		Not Required Part Or See Note Front,oven (not Replaceable)	1	Appelez-nous	-
13	WP74003976		Screw W/washer   (Replaces: 7101P124-60)	1			$ 6.47
14	7201P036-60		Gasket, Oven	1			$ 118.90
15	3804F012-45		Retainer, Lamp Guard	1	Appelez-nous	-
17	7902P057-60		Glass, Lamp Guard	1	Appelez-nous	-
18	7201P014-60		Gasket, Housing	1	Appelez-nous	-
19	WP7101P126-60		Screw   (Replaces: 7101P064-60)	1		Immediately	$ 6.85
20	4001F020-23		Housing, Lamp	1	Appelez-nous	-
21	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
22	40A15		Bulb, Oven   (Replaces: 7407P026-60)	1		Immediately	$ 1.98
23	7408P002-60		Receptacle, Lamp	1	Appelez-nous	-
24	3807F205-45		Support, Oven Rear	1	Appelez-nous	-
25	3801F093-45		Bracket, Burner Box	1	Appelez-nous	-
26	7401P015-60		Block, Terminal	1	Appelez-nous	-
27	WP7101P126-60		Screw   (Replaces: 7101P273-60)	1		Immediately	$ 6.85
27	3601W130-45		Baffle, Bake & Broil	1	Appelez-nous	-
28	4002F145-45		Back, Broil Section	1	Appelez-nous	-
29	3807F329-45		Support, Valve	1	Appelez-nous	-
30	4005F258-51		Cover, Oven Valve	1	Appelez-nous	-
31	3807F388-45		Support, Oven Bottom	1	Appelez-nous	-
32	3604F162-45		Shield, Service Drawer	1	Appelez-nous	-
33	7101P013-60		Screw, Special	1	Appelez-nous	-
34	8004P020-60		Support, Relay Board	1	Appelez-nous	-
35	7428P008-60		Relay, Board Assy.	1	Appelez-nous	-
36	12001655		Probe, Oven Sensor   (Replaces: 7430P009-60)	37		Immediately	$ 41.01
NI	7201P015-60		Gasket, Lamp Retainer	1	Appelez-nous	-
