SELECT A DIAGRAM

01 - Body


02 - Burner Box


03 - Control Panel


04 - Control System (oven)


05 - Door\drawer


06 - Oven


07 - Top Assy.\control System (surface)

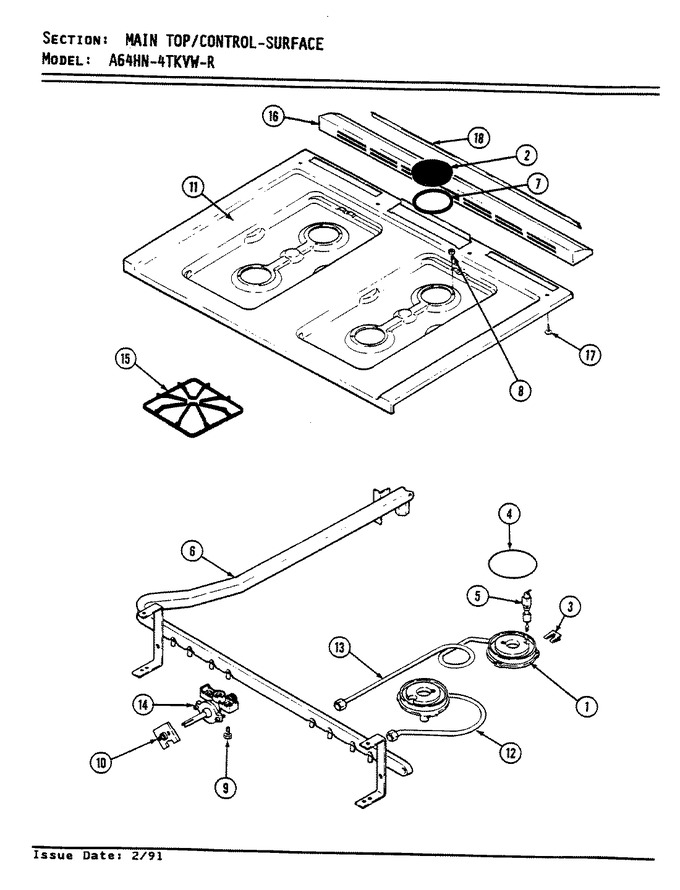

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5110A824-60		Wire, Igniter Front	1	Appelez-nous	-
1	5415A015-60		+ Nat. Gas Conversion Kit	1	Appelez-nous	-
1	5415A016-60		Lp Conversion Kit	1	Appelez-nous	-
1	7505P187-60		Burner, Top	1	Appelez-nous	-
1	5110A825-60		Wire, Igniter Rear	1	Appelez-nous	-
1	7509P034-60		Orifice, Sealed Burner-nat	1	Appelez-nous	-
2	7504P007-60		Cap, Surface Burner, Black	1	Appelez-nous	-
3	7112P072-60		Clip	1	Appelez-nous	-
4	7201P037-60		Gasket, Burner	1	Appelez-nous	-
5	7432P053-60		Igniter, Burner	1	Appelez-nous	-
6	7513P117-60		Pipe, Manifold	22	Appelez-nous	-
6	7513P092-60		Pipe, Manifold	1	Appelez-nous	-
7	2014F001-90		Ring, Black	1	Appelez-nous	-
8	7101P256-60		Screw	1	Appelez-nous	-
9	7101P043-60		Screw, Control Valve	1	Appelez-nous	-
10	7403P286-60		Switch	33	Appelez-nous	-
10	7403P259-60		Switch	30	Appelez-nous	-
10	WP7403P190-60		Switch, Burner   (Replaces: 7403P190-60)	1			$ 118.82
10	7403P235-60		Switch, Lighter Burner	22	Appelez-nous	-
11	2001F069-81		Top, Main White	1	Appelez-nous	-
12	7506P104-60		Tube, Front Burner	1	Appelez-nous	-
13	7506P105-60		Tube, Rear Burner	1	Appelez-nous	-
14	7214P003-60		Sleeve	1	Appelez-nous	-
14	7502P146-60		Valve, Top Burner	22	Appelez-nous	-
14	7502P230-60		Valve	31	Appelez-nous	-
14	7502P131-60		Valve, Burner H-m-l	1	Appelez-nous	-
15	7518P014-60		Grate, Black	1	Appelez-nous	-
15	1430283		Drip Bowl Kit (accessory)   (Replaces: 5401A433-60)	1			$ 95.86
16	7724P026-60		Cover, Vent Trim	1	Appelez-nous	-
16	7724P055-60		Cover, Vent Trim	27	Appelez-nous	-
17	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	1			$ 6.98
18	7201P040-60		Gasket, Vent	1	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
