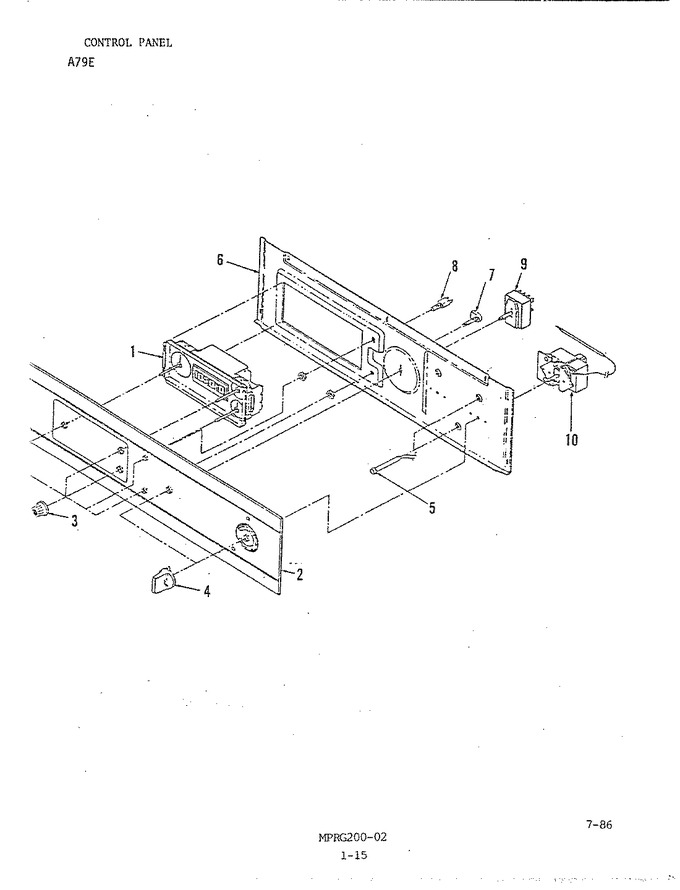

01 - Control Panel
02 - Door
03 - Door
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7706E125 | Extrusion | 1 |
|
- | ||||
| 1 | 7601P050-60 | Clock | 4 |
|
- | ||||
| 1 | 7601P035-60 | + Clock, Self Clean | 1-3 |
|
- | ||||
| 2 | 7902P094-60 | Glass, Control Panel | 1 |
|
- | ||||
| 3 | 1359263 | Knob, Switch | 01 |
|
- | ||||
| 4 | 1362231 | Knob, Selector | 01 |
|
- | ||||
| 5 | 1555236 | Nut | 01 |
|
- | ||||
| 5 | 1406246 | Light, Indicator | 01 |
|
- | ||||
| 6 | 0719288 | Plate, Backing | 01 |
|
- | ||||
| 6 | WP74004005 | Therm Mounting Screw (Replaces: 1986330) | 1 |
|
$ 6.95 | ||||
| 7 | 1832413 | + Switch,light | 1 |
|
- | ||||
| 8 | 1832412 | Switch, Pushbutton | 1 |
|
- | ||||
| 10 | 1890319 | Thermostat, Oven | 1 |
|
- |
