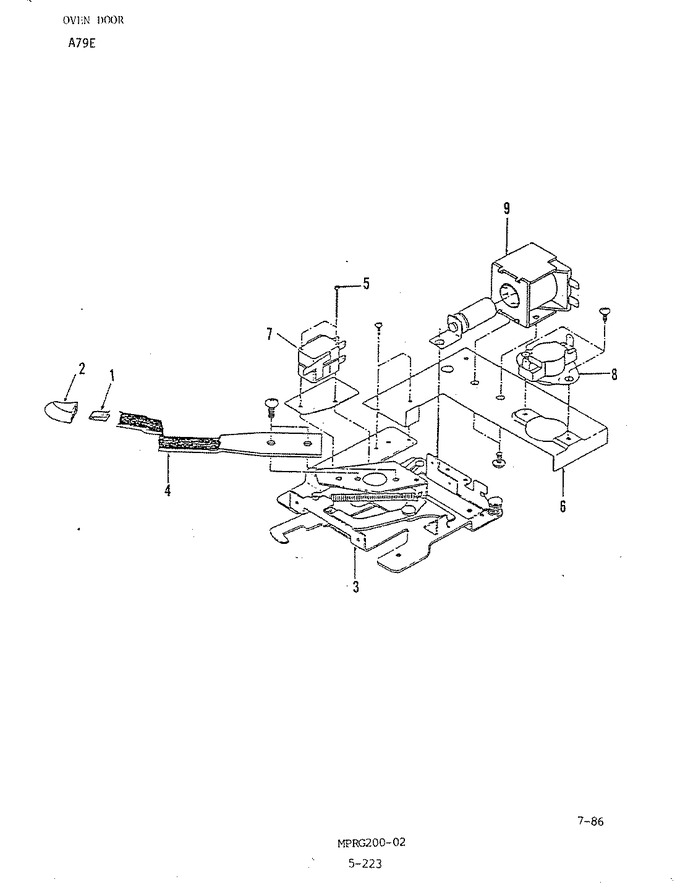

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7112E003 | Clip, Door Lock | 1 |
|
- | ||||
| 1 | 1089202 | Bushing | 1 |
|
- | ||||
| 2 | 7701E003 | Handle, Door Lock | 1 |
|
- | ||||
| 3 | 1135227 | Catch, Oven Dr | 1 |
|
- | ||||
| 4 | 8009E005 | Lever, Door Lock | 1 |
|
- | ||||
| 4 | 0603211 | Link | 1 |
|
- | ||||
| 5 | 0112243 | Stop, Latch | 1 |
|
- | ||||
| 6 | 3807F107-80 | Support, Mag.sw | 1 |
|
- | ||||
| 7 | 1832410 | Switch, Fan | 1 |
|
- | ||||
| 8 | 7403E063 | Switch, High Limit | 1 |
|
- | ||||
| 9 | 1832357 | Switch | 1 |
|
- |
