01 - Control Panel

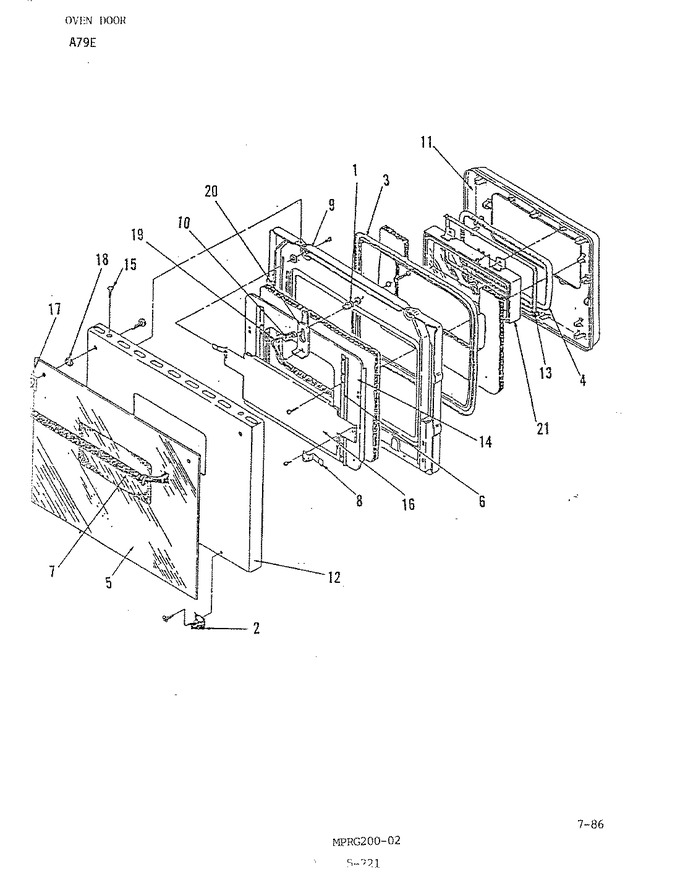

02 - Door
03 - Door
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1784200 | Bumper | 1 |
|
- | ||||
| 1 | 1089202 | Bushing | 1 |
|
- | ||||
| 2 | 7112P039-60 | Clip, Glass Retainer | 1 |
|
- | ||||
| 3 | 1313254 | Gasket | 1 |
|
- | ||||
| 4 | 1313270 | Gasket | 1 |
|
- | ||||
| 5 | 7902E106 | Glass, Door | 1 |
|
- | ||||
| 6 | 0749228 | Retainer | 1 |
|
- | ||||
| 7 | 7701E024 | Handle, Door | 1 |
|
- | ||||
| 8 | 1359318 | Handle, Shield | 1 |
|
- | ||||
| 9 | 2402W083-12 | Lining Assy, Wd Ov Dr | 1 |
|
- | ||||
| 10 | 1555248 | Nut Self Locking | 1 |
|
- | ||||
| 11 | 0661222 | Pad, Oven Door | 1 |
|
- | ||||
| 12 | 2401F045-70 | Panel, Oven Door | 1 |
|
- | ||||
| 13 | Y0749237 | Retainer, Glass | 1 |
|
- | ||||
| 14 | 3611F006-51 | Retainer Insul | 1 |
|
- | ||||
| 15 | WP98008545 | Screw (1/2``) (Replaces: 7101P040-60) | 1 |
|
$ 15.94 | ||||
| 15 | 7101P052-60 | Screw, Handle | 1 |
|
- | ||||
| 16 | 0787426 | Shield, Oven Door | 1 |
|
- | ||||
| 17 | 8010E015 | Spacer, Door Handle | 1 |
|
- | ||||
| 18 | 74003986 | Spacer, Glass (Replaces: 8010E016) | 1 |
|
$ 13.08 | ||||
| 19 | 1790297 | Spring | 1 |
|
- | ||||
| 20 | 0112243 | Stop, Latch | 1 |
|
- | ||||
| 21 | 1966244 | Window Assy. | 1 |
|
- | ||||
| 21 | 5700A082-60 | Window Assy. | 2 |
|
$ 164.77 |
