SELECT A DIAGRAM
01 - Body
02 - Body
03 - Control Panel
04 - Control System
05 - Door
06 - Drawer
07 - Oven
SELECT A DIAGRAM
New Model Search:

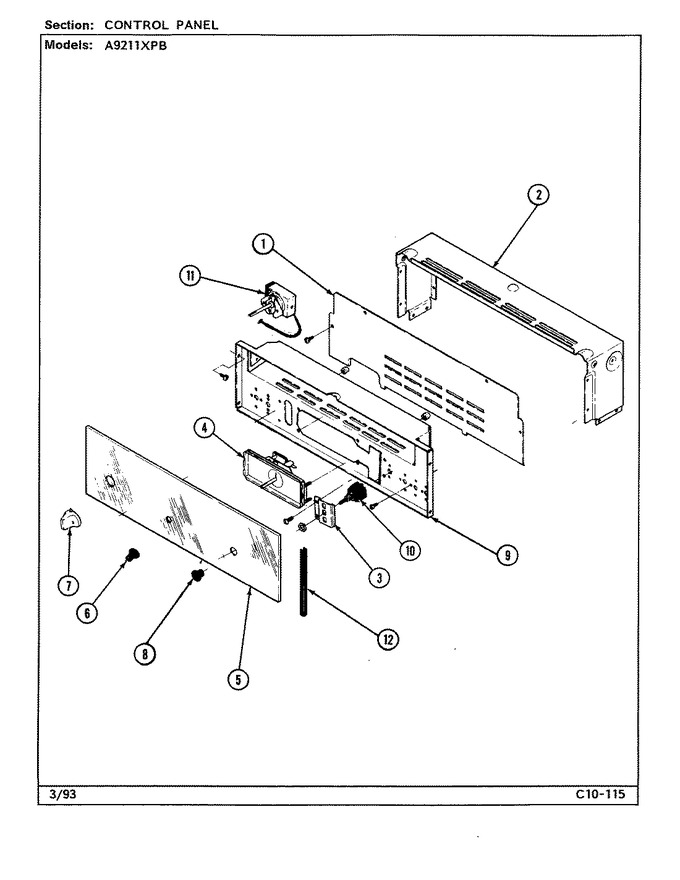

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F098-51 | Back Control Box | 01 |
|
- | ||||
| 2 | 4006F057-51 | Box Control | 01 |
|
- | ||||
| 3 | 3801F156-80 | Bracket, Switch Mtg | 01 |
|
- | ||||
| 4 | 7602P060-60 | Clock, Regulator | 01 |
|
- | ||||
| 5 | 7912P038-60 | Glass, Control | 01 |
|
- | ||||
| 6 | 7711P126-60 | Knob, Clock | 01 |
|
- | ||||
| 7 | 7711P350-60 | Knob, Control (chr) | 01 |
|
- | ||||
| 8 | 7214P007-60 | Sleeve, Switch (blk) | 01 |
|
- | ||||
| 9 | 3807F223-51 | Support, Clock | 01 |
|
- | ||||
| 10 | 7403P109-60 | Switch, Push (blk) | 01 |
|
- | ||||
| 11 | 7404P065-60 | Thermostat | 01 |
|
- | ||||
| 12 | 3608F019-70 | Trim, Bkgd. Glass | 01 |
|
- | ||||
| NI | 8112P064-60 | Manual, Use & Care | 01 |
|
- |
