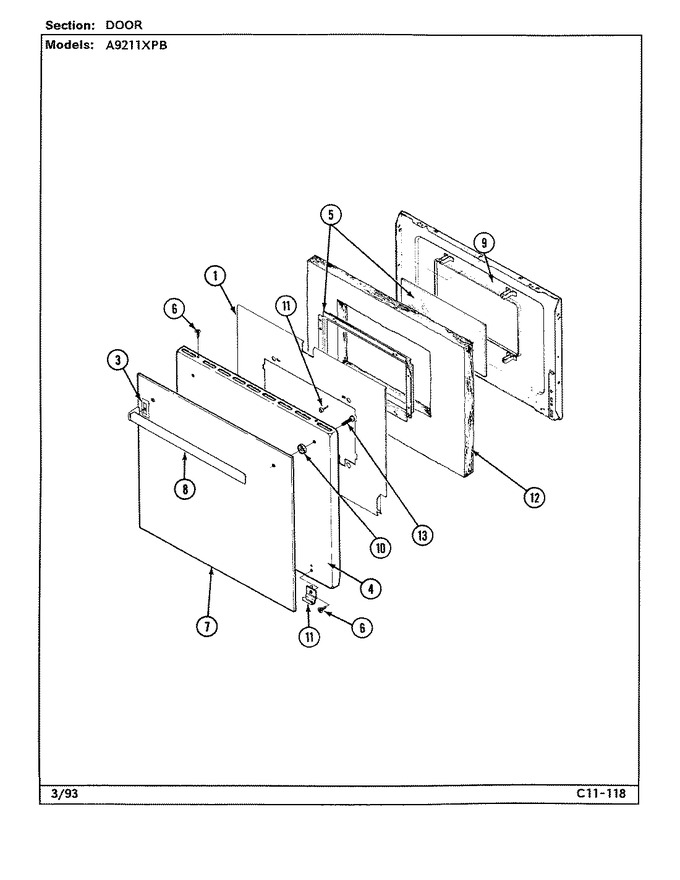

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F103-51 | Baffle, Door | 01 |
|
- | ||||
| 2 | 8270P065-60 | Tape | 01 |
|
- | ||||
| 2 | 3819F010-70 | Clip, Glass Retainer (blk) | 01 |
|
- | ||||
| 3 | 8010P015-60 | Spacer, Handle (blk) | 01 |
|
- | ||||
| 4 | 2401W103-70 | Panel Door | 01 |
|
- | ||||
| 5 | 7907P011-60 | Glass Door | 01 |
|
- | ||||
| 6 | WP7101P126-60 | Screw, No.10-16ab (Replaces: 7101P221-60) | 01 |
|
Immediately | $ 6.85 | |||
| 7 | 7902P356-60 | Glass Door Screened | 01 |
|
- | ||||
| 8 | 7701P024-60 | Handle, Door (blk) | 01 |
|
$ 67.19 | ||||
| 9 | 2402W197-16 | Lining, Oven Door | 01 |
|
- | ||||
| 10 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) | 01 |
|
$ 13.08 | ||||
| 11 | 7101P016-60 | Screw | 01 |
|
- | ||||
| 12 | 7002P058-60 | Insulation, Oven Door | 01 |
|
- | ||||
| 13 | 7101P089-60 | Screw, Door Handle | 01 |
|
- |
