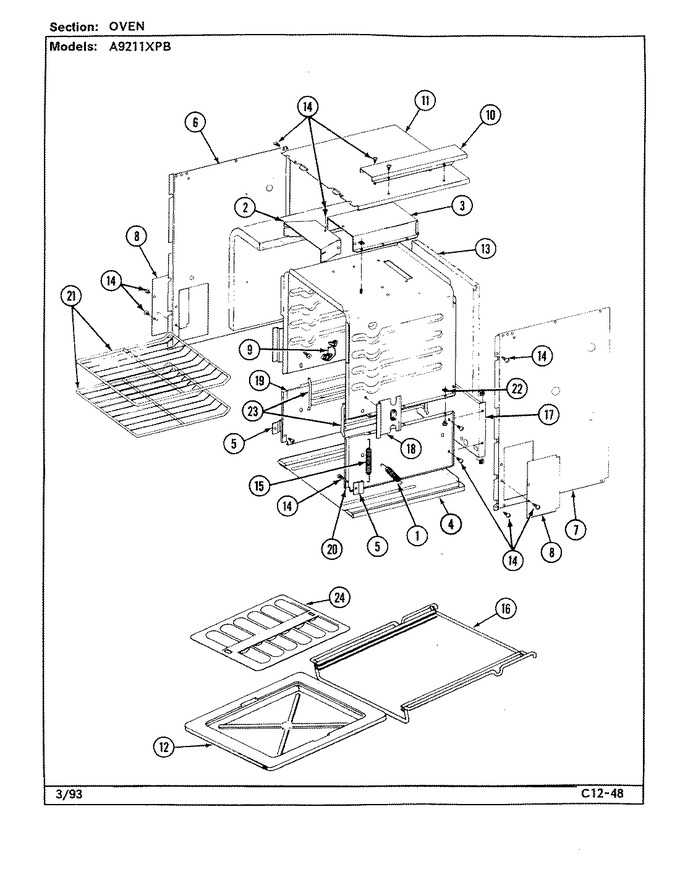

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7803P034-60		Spring, Broiler Door		Appelez-nous	-
2	3826F004-80		Extension, Vent Box		Appelez-nous	-
3	4006F083-80		Adapter, Vent Box		Appelez-nous	-
3	4006W078-51		Box, Vent		Appelez-nous	-
4	4003W018-51		Base Assy		Appelez-nous	-
5	3801F212-45		Bracket		Appelez-nous	-
6	2618F061-51		Panel, End-lt		Appelez-nous	-
7	2618F062-51		Panel, End-rt		Appelez-nous	-
8	4005F224-51		Cover, Hinge		Appelez-nous	-
9	7112P053-60		Clip, Capillary		Appelez-nous	-
10	4005F240-51		Cover Wire Top		Appelez-nous	-
11	3804F056-51		Cover, Insulation		Appelez-nous	-
12	Y3401F02019		Pan, Broil		Appelez-nous	-
13	7002P089-60		Insulation, Oven Bac		Appelez-nous	-
14	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
15	7803P041-60		Spring, Oven Door		Appelez-nous	-
16	7801P018-60		Rack, Broiler Pan		Appelez-nous	-
17	4002F135-19		Back Broiler		Appelez-nous	-
18	3604F119-61		Shield, Insulation		Appelez-nous	-
19	2228F003-19		Side Broiler L.t.		Appelez-nous	-
20	2228F004-19		Side Broiler Right		Appelez-nous	-
21	7801P020-60		Rack, Oven		Appelez-nous	-
22	M0282009		Nut 10-24   (Replaces: 7103P071-60)				$ 12.06
23	7808P003-60		Runner, Broiler Rack		Appelez-nous	-
24	Y3413F01619		Insert, Broil Pan		Appelez-nous	-
