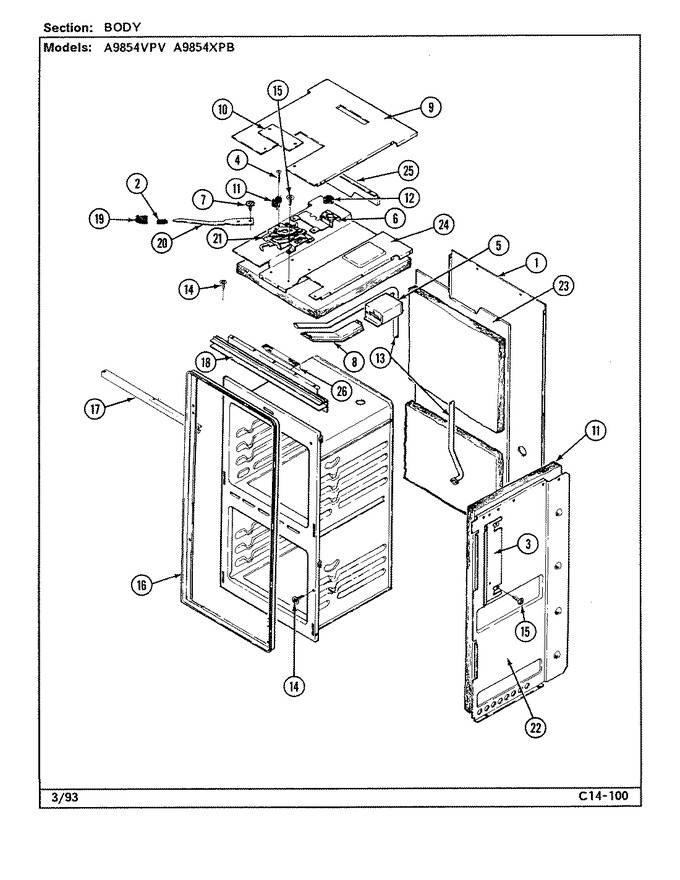

SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door (lower)


04 - Door (upper)


05 - Oven


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4002F143-51		Back, Main		Appelez-nous	-
2	7112P003-60		Clip, Latch Handle		Appelez-nous	-
3	3601F130-51		Baffle, Side		Appelez-nous	-
4	7101P035-60		Screw, Switch		Appelez-nous	-
5	4006W046-45		Box, Vent		Appelez-nous	-
6	3801F128-45		Bracket, Hi Limit		Appelez-nous	-
7	WP4159193		Screw   (Replaces: 7101P115-60)				$ 4.29
8	3818W002-19		Channel, Vent Assy		Appelez-nous	-
9	4005F202-51		Cover, Box		Appelez-nous	-
10	4005F160-45		Cover, Lock		Appelez-nous	-
11	7403P007-60		Switch, Door Lock		Appelez-nous	-
12	7403P063-60		Switch, High Limit				$ 156.41
13	8026P014-60		Tube, Oven Vent		Appelez-nous	-
14	WP7103P114-60		Nut, Snap (round-wht)   (Replaces: 7103P039-60)				$ 9.89
14	WP98008545		Screw (1/2``)   (Replaces: 7101P040-60)				$ 15.94
14	7103P040-60		Nut, Snap (wht)		Appelez-nous	-
14	7103P051-60		Nut, Snap		Appelez-nous	-
15	WP7101P126-60		Screw   (Replaces: 7101P061-60)			Immediately	$ 6.85
16	7750P026-60		Extrusion, Front Frame		Appelez-nous	-
17	7756P012-60		Extrusion, Top Front (blk)		Appelez-nous	-
18	7756P022-60		Extrusion, Vent (blk)		Appelez-nous	-
19	7701P088-60		Handle, Latch (blk)		Appelez-nous	-
20	7214P020-60		Tubing, Heat Shrink		Appelez-nous	-
20	8009P011-60		Lever, Latch		Appelez-nous	-
21	7003P001-60		Insulator		Appelez-nous	-
21	8002P072-60		Latch Assy.   (Replaces: 8002P016-60)				$ 306.52
21	3801F127-51		Bracket, Door Latch		Appelez-nous	-
22	2618F089-51		Panel, Side Right		Appelez-nous	-
22	2618F088-51		Panel, Side Lf.		Appelez-nous	-
23	3804F101-51		Retainer, Rear		Appelez-nous	-
24	3804F053-51		Retainer,top		Appelez-nous	-
25	3604F101-80		Shield, Air		Appelez-nous	-
26	3604F048-80		Shield, Terminal		Appelez-nous	-
