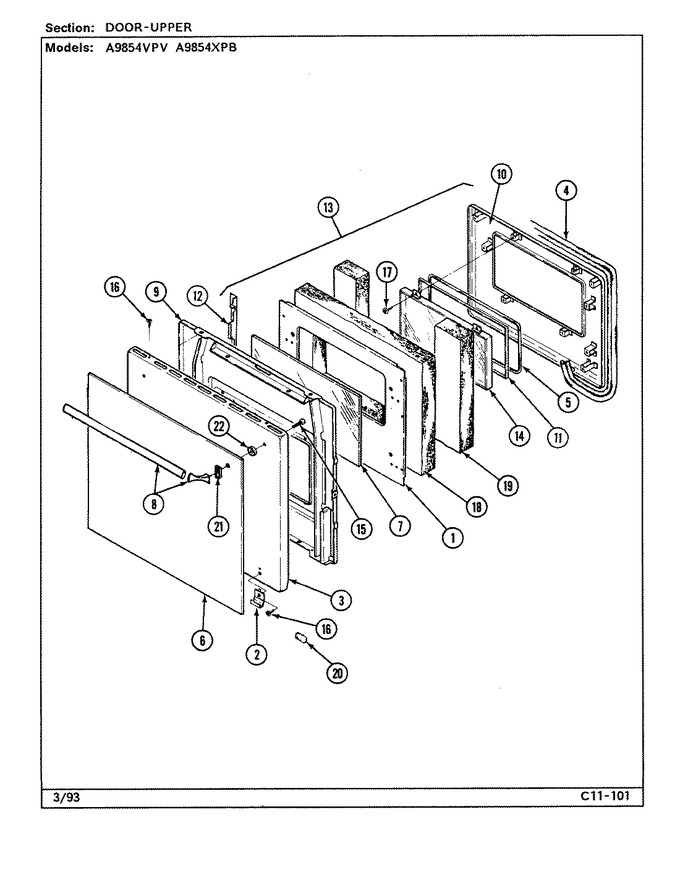

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11684512		Screw (10abx1.0-zn)   (Replaces: 7101P060-60)	1			$ 12.69
1	3601W131-51		Baffle, Door Assembly	1	Appelez-nous	-
2	7112P093-60		Clip, Glass (blk)	1			$ 12.67
3	2401F103-70		Panel, Door (blk)	1	Appelez-nous	-
4	7201P053-60		Gasket, Door	1	Appelez-nous	-
5	7201P018-60		Gasket, Window	1	Appelez-nous	-
6	8270P065-60		Tape	1	Appelez-nous	-
6	7902P336-60		Glass, Outer (blk)	1			$ 97.39
7	7902P097-60		Glass, Inner	1			$ 63.87
8	7701P024-60		Handle, Door (blk)	1			$ 67.19
9	2402W130-19		Lining, Door	1	Appelez-nous	-
9	8114P274-60		Label (cleaning Inst.)	1	Appelez-nous	-
10	2410W042-19		Pad, Door	1	Appelez-nous	-
11	3804F021-45		Retainer, Gasket	1	Appelez-nous	-
12	3804F051-80		Retainer, Glass	1	Appelez-nous	-
13	2410A042-19		Pad, Oven Door Assy.	1	Appelez-nous	-
14	5700A082-60		Window Assy.	1			$ 164.77
14	7002P050-60		Insulation, Window Wrap	1	Appelez-nous	-
14	7208P002-60		Seal	1	Appelez-nous	-
15	7101P004-60		Screw	1	Appelez-nous	-
16	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
17	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
18	7002P023-60		Insulation, Door----na	1	Appelez-nous	-
19	7002P021-60		Insulation, Door	1	Appelez-nous	-
20	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
21	8010P015-60		Spacer, Handle (blk)		Appelez-nous	-
22	74003986		Spacer, Glass   (Replaces: 8010P016-60)				$ 13.08

    View Diagram in Separate Window       Print Part List
