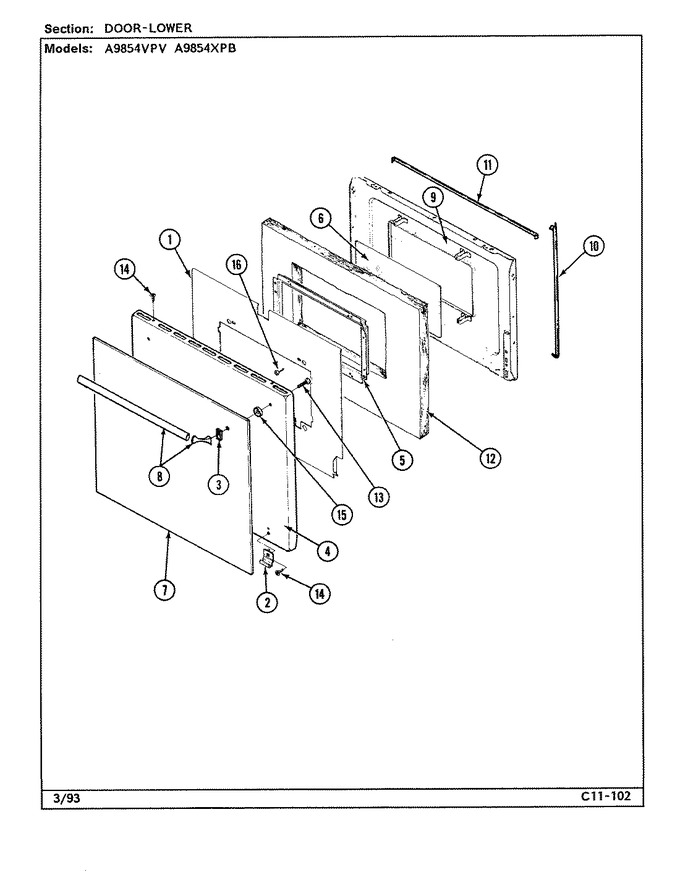

03 - Door (lower)
04 - Door (upper)
05 - Oven
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F103-51 | Baffle, Door |
|
- | |||||
| 2 | 7112P093-60 | Clip, Glass (blk) |
|
$ 12.67 | |||||
| 3 | 8010P015-60 | Spacer, Handle (blk) |
|
- | |||||
| 4 | 2401F104-70 | Panel, Door (blk) |
|
- | |||||
| 5 | 3603F013-80 | Frame, Window----na |
|
- | |||||
| 6 | 7902P386-60 | Glass, Inner |
|
- | |||||
| 7 | 7902P333-60 | Glass, Outer (wht) |
|
- | |||||
| 7 | 7208P001-60 | Seal, Glass |
|
- | |||||
| 7 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) |
|
$ 11.95 | |||||
| 9 | 2402W132-19 | Lining, Door |
|
- | |||||
| 10 | 7212P007-60 | Seal, Door (vertical) |
|
$ 47.10 | |||||
| 11 | WP7212P006-60 | Seal, Door (horizontal) (Replaces: 7212P006-60) |
|
$ 105.81 | |||||
| 12 | 7002P019-60 | Insulation, Door Lower |
|
- | |||||
| 13 | 7101P089-60 | Screw, Door Handle |
|
- | |||||
| 14 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) |
|
Immediately | $ 12.62 | ||||
| 15 | 74003986 | Spacer, Glass (Replaces: 8010P016-60) |
|
$ 13.08 | |||||
| 16 | WP7101P126-60 | Screw (Replaces: 7101P061-60) |
|
Immediately | $ 6.85 |
